Four-channel Dynamic Signal Analyzer XY-U9004

Views: 0     Author: Site Editor     Publish Time: 2025-04-29      Origin: Site

Four-channel dynamic signal analyzer XY-U9004

Product Overview

XY-U9004 is a 24-bit high-precision A/D, 4-channel parallel synchronous sampling, sampling rate of up to 128kHz / channel, low noise, high accuracy, can be directly connected to the IEPE-type acceleration sensors, speed sensors, force sensors, microphones, etc. for signal testing and analysis.

The use of USB interface power supply, no external power supply, supporting simple and easy to learn, belongs to a small, portable dynamic signal analyzer. Dynamic signal analyzer input type, range, sensor sensitivity, sampling rate and other parameters to set up, real-time transmission, display, analysis and processing of data, the use of computer hard disk can be a long time real-time, uninterrupted recording of multi-channel signals.

XY-U9004 Dynamic Signal Analyzer adopts industrial grade devices, with strong anti-interference ability. The shell adopts all-metal shielding material, which can be perfectly adapted to the noise and vibration test in various industrial environments.

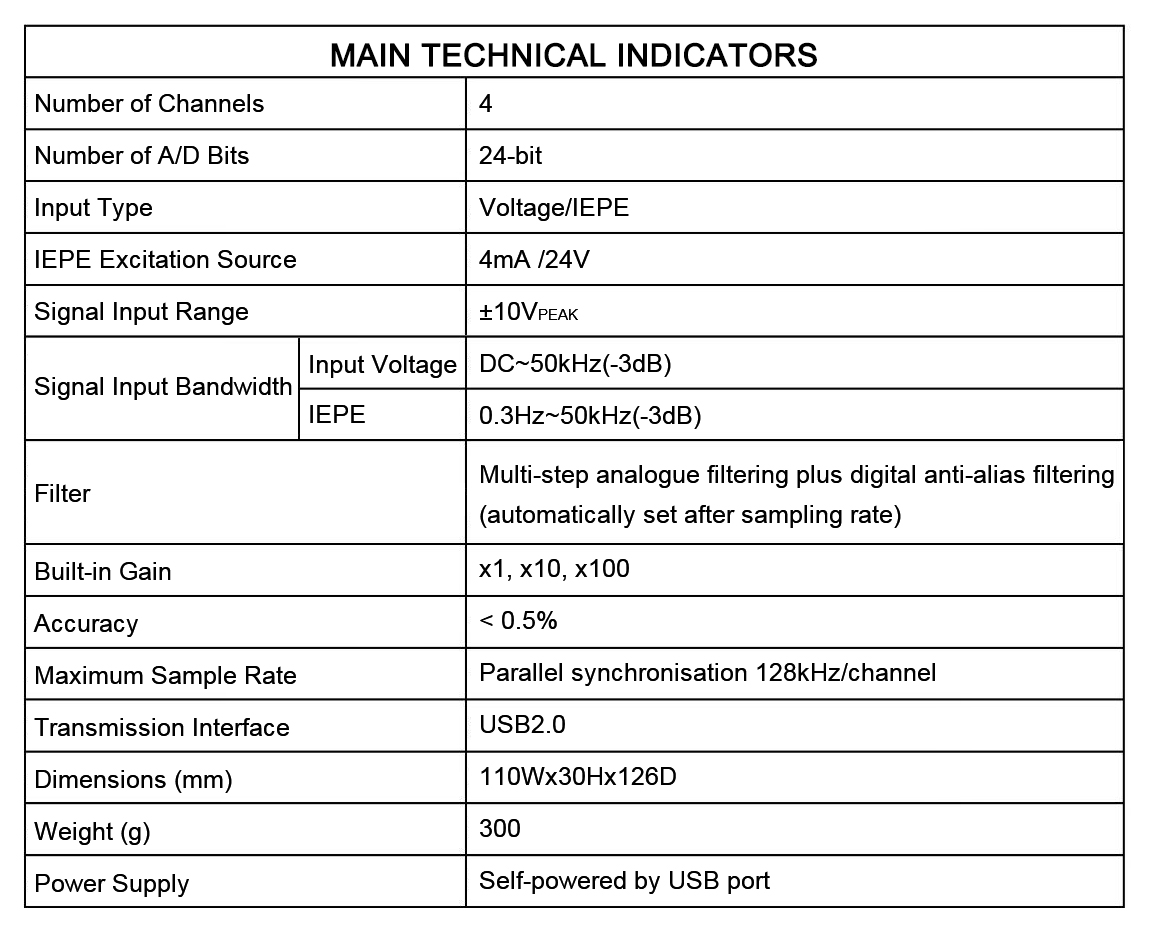

Product Technical Indicators

sensors and signal conditioning

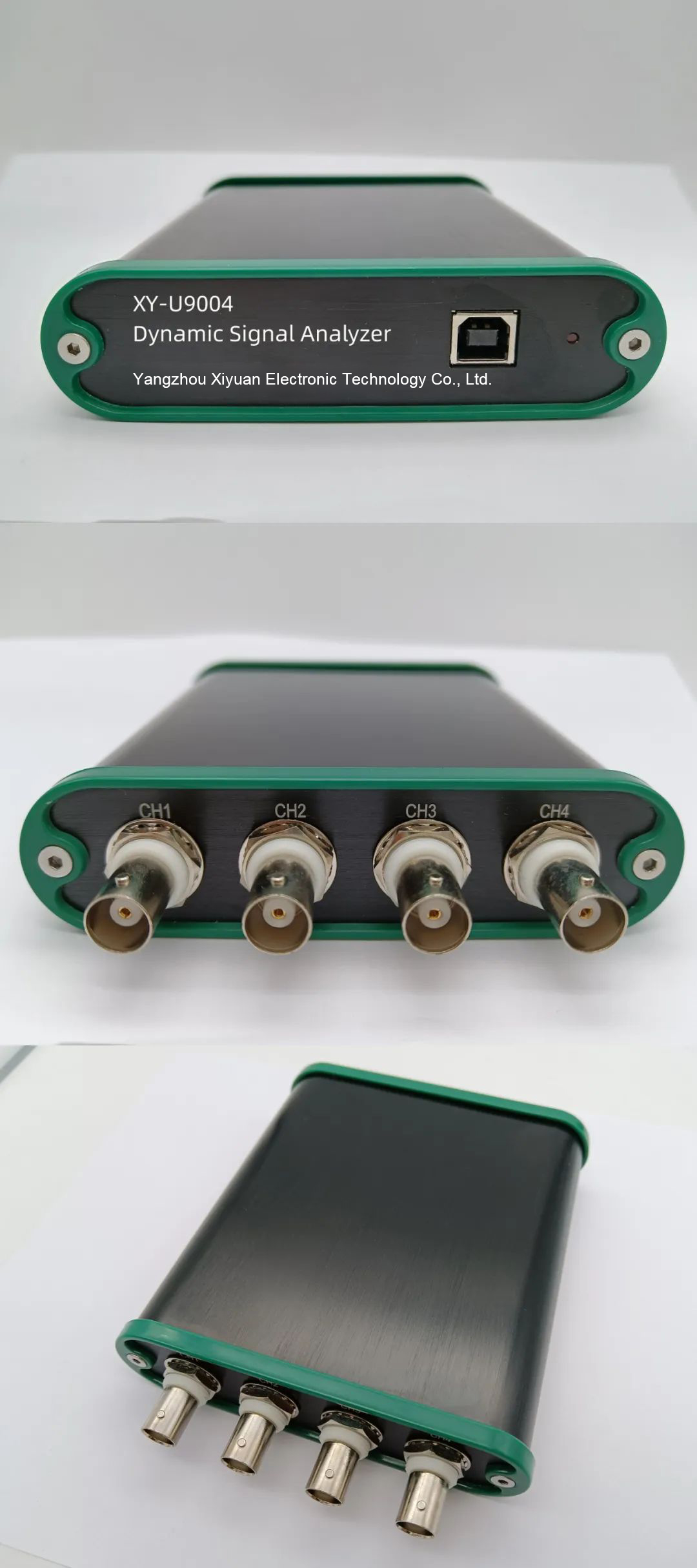

Product shooting

iepe signal conditioner

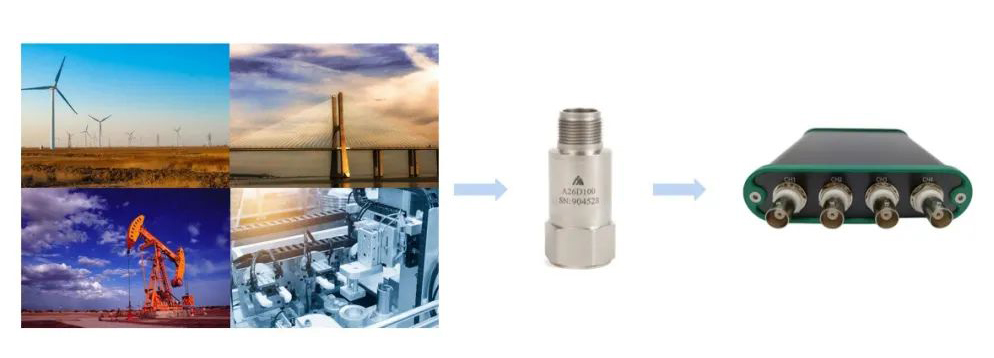

Scene of application

Vibration measurements are made by directly connecting a vibration accelerometer (or other sensor).accelerometer signal conditioner

Synchronized Dynamic Signal Testing

Users can directly measure 4 channels of IEPE sensors with a sampling rate of up to 128ks/s per channel.Users can configure the sensitivity of each IEPE sensor through software.

Start Acquisition/Start Acquisition and Save Data

The user can start the acquisition task or acquire and save data with a simple push of a button.

FFT Display

Spectrum data is calculated from time domain data and spectrum graph is displayed.

Real-time data display

View the acquired data or read data from the storage file. The user can select a certain range of data to view and can zoom the data to display. Calculate signal peak-to-peak and RMS values.

Velocity/Displacement Calculation

When a vibration acceleration sensor is plugged in, it can be viewed to reference its vibration velocity and displacement waveform curves (via mathematical integration).

Historical Data Playback

Conveniently view historical data by checking the data file.
