The Three Elements of Vibration

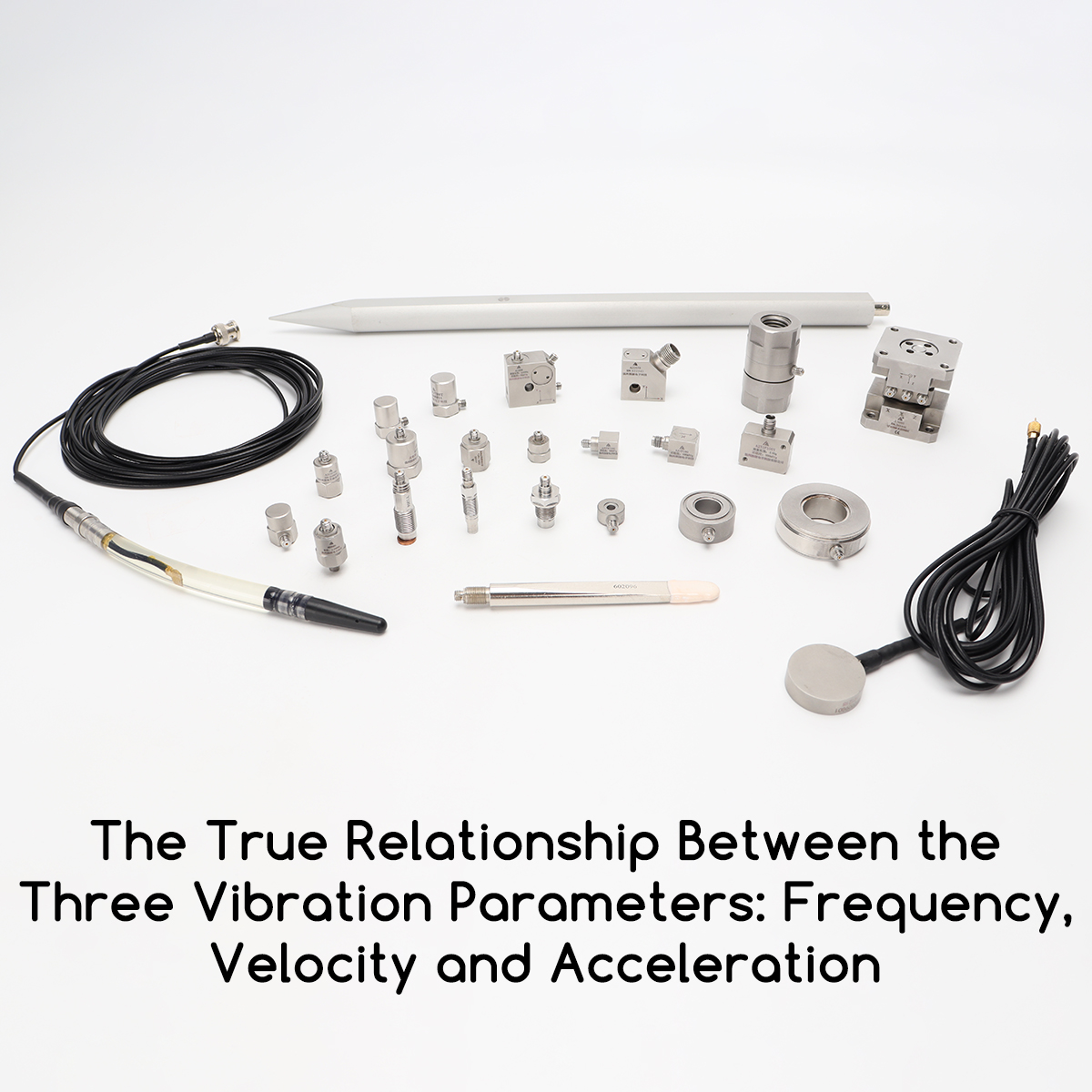

The True Relationship Between Frequency, Velocity, and Acceleration

Fault Diagnosis | Smart Operations and Maintenance | Vibration Monitoring | Accelerometers | Vibration Sensors | Vibration Analysis | Equipment Condition Monitoring

Those working in equipment maintenance, vibration monitoring, and fault diagnosis deal with three vibration parameters every day: vibration frequency, vibration velocity, and vibration acceleration.

Are these three parameters independent, or are they interrelated? Why do we look at displacement for low-frequency faults, velocity for medium-frequency faults, and acceleration for high-frequency faults? Why do the results vary so drastically when analyzing the same equipment vibration using different parameters?

In previous posts, we’ve briefly covered the key reference parameters for choosing among these three options based on different vibration frequencies. Today, using 100% real physical principles and general engineering logic, we’ll thoroughly explain the underlying relationships, conversion rules, and applicable scenarios for all three—once and for all—so you can say goodbye to parameter confusion for good.

01. First, let’s understand: What are these three parameters? (In simple terms)

The essence of vibration is the back-and-forth motion of an object around its equilibrium position. Frequency, velocity, and acceleration are precise descriptions of the same vibration from three dimensions—time, amplitude, and the rate of change—and these three factors do not exist in isolation.

1. Vibration frequency f: the “speed” of the vibration

Definition: The number of vibration cycles an object completes per second, measured in Hz (hertz).

Simply put: the higher the frequency, the faster the device vibrates back and forth; the lower the frequency, the slower the vibration.

Engineering Significance: Frequency serves as the “identifier” for faults. Different equipment faults correspond to specific frequencies; for example, rotor imbalance, bearing wear, and gear meshing faults all have distinctive characteristic frequencies, which serve as the key basis for pinpointing the root cause of a fault.

2. Vibration velocity v: the “intensity” of vibration

Definition: The rate at which vibration displacement changes over time, typically measured in mm/s, is a core parameter in industrial vibration diagnostics.

In simple terms: It reflects the magnitude of the energy associated with equipment vibration and indicates the intensity of the reciprocating motion of components.

Engineering Significance: Compliant with the ISO 10816 international vibration standard, it serves as a general indicator for assessing the overall operating condition of equipment and evaluating vibration severity, and is suitable for the vast majority of conventional rotating equipment.

3.Vibration acceleration a: the “impact intensity” of the vibration

Definition: The rate at which the vibration velocity changes over time; units are typically m/s² or g (acceleration due to gravity; 1 g ≈ 9.8 m/s²).

Simply put: This reflects sudden changes in vibration and the severity of impacts. The faster the change in velocity, the greater the acceleration, and the more severe the impact-induced wear on the equipment.

Engineering Significance: Extremely sensitive to high-frequency micro-vibrations and impact-related faults, it is specifically designed to detect early-stage high-frequency faults in bearings, gears, and fine cracks.

02. The Actual Physical Relationship Among the Three

For all steady-state harmonic vibrations in engineering (which account for the vast majority of normal and fault-related vibrations in industrial equipment), there are fixed, rigorous calculus-based relationships and numerical conversion formulas among these three factors. These form the underlying principles of vibration detection, data conversion, and fault analysis.

1. Underlying Logic: A Step-by-Step Derivation of Derivatives

The source of vibration is a change in displacement, and the hierarchical relationship among these three elements is immediately apparent:

Vibration velocity = the first derivative of vibration displacement with respect to time

Vibration acceleration = the first derivative of vibration velocity with respect to time = the second derivative of vibration displacement with respect to time

Simple explanation: Displacement refers to the “amplitude” of the oscillation, velocity refers to how “fast” it oscillates, and acceleration refers to the “rate of change” in velocity; these three are different ways of describing the same oscillation.

2. Numerical Conversion Formulas (General-Purpose for Engineering, Accurate and Effective)

Under standard simple harmonic motion, given the angular frequency ω = 2πf (where f is the frequency of vibration), the formula for converting the amplitudes of these three quantities is：

Velocity amplitude V = 2πf × displacement amplitude X

Acceleration amplitude A = 2πf × velocity amplitude V = (2πf)² × displacement amplitude X

3. The Most Critical Principle: Frequency Determines Parameter Sensitivity

The core conclusion—which also serves as the primary basis for engineering selection—can be directly derived from the formula:

✅ Vibration velocity is directly proportional to frequency f

✅ Vibration acceleration is directly proportional to the square of frequency f

This means that the higher the frequency, the faster the acceleration value increases, and sensitivity far exceeds that of velocity and displacement; conversely, the lower the frequency, the smaller the change in acceleration, and displacement and velocity provide a more accurate reflection of the vibration state.

03. Easy-to-Understand Analogy: Understand the Differences Between the Three in a Second

Use the analogy of a “car in motion” to explain vibration, and you'll instantly understand the logic behind all three:

Frequency: This is equivalent to a car’s “start-stop cycle”; the faster the cycle (higher frequency), the more intense the exercise; the slower the cycle (lower frequency), the more gentle the exercise.

Vibration velocity: Equivalent to a car’s “speed,” it directly reflects the intensity of the current motion, corresponds to the total energy of the vibration, and determines the overall wear and tear on the equipment.

Vibration acceleration: This is equivalent to a car’s “sudden acceleration or braking force.” The more abrupt the acceleration or braking (the greater the acceleration), the more severe the impact, vibration, and wear—which correspond to instantaneous impact damage to the equipment.

In short: Frequency sets the rhythm, speed sets the intensity, and acceleration sets the impact.

04. Practical Engineering: Which Parameter Should You Check for Different Frequencies?

For many people, vibration data measurements are inaccurate and faults go undetected. The core reason is the selection of incorrect measurement parameters. Taking into account the frequency-related characteristics of these three factors, the general industrial selection rules are fully consistent with the laws of physics:

1. Low-frequency vibration (<10 Hz): Check the vibration displacement

At low frequencies, changes in frequency have a negligible effect on acceleration and velocity; the primary issue with the equipment is large oscillation amplitude. It is suitable for large-scale, heavy-duty equipment such as large fans, water turbines, and low-speed rotating shafts; monitoring displacement can accurately reflect deformation and eccentricity issues.

2. Medium-frequency vibration (10 Hz–1 kHz): Consider the vibration velocity (preferred)

The mid-frequency range is the operating frequency band for the vast majority of industrial equipment (motors, pumps, compressors, etc.). Speed parameters are linearly correlated with vibration energy; they are unaffected by frequency fluctuations and provide a stable indication of the equipment’s overall vibration severity. They are also the core parameters used in the ISO 10816 national standard for determining equipment compliance, issuing early warnings, and identifying failures.

3. High-frequency vibration (>1 kHz): Check the vibration acceleration

High-frequency, minute vibrations and faint impacts—with displacement and velocity values so small as to be nearly imperceptible—result in acceleration that increases significantly with the square of the frequency. This allows for the precise detection of early, latent faults such as bearing pitting, gear wear, and microscopic cracks, making it a key parameter for predicting failures in precision equipment.

05. Clarifying Common Misconceptions About High Frequency

❌ Misconception 1: The three parameters can be interchanged at will

Correct answer: Absolutely not. For the same vibration, acceleration values vary significantly at high frequencies, while displacement changes are most pronounced at low frequencies. Selecting the wrong parameters can lead to misdiagnosis or failure to detect faults, rendering the data completely unreliable.

❌ Misconception 2: The higher the frequency, the more severe the vibration must be

Correct answer: Not necessarily. Frequency only indicates the speed of vibration; it does not indicate the intensity of vibration. High-frequency, low-amplitude vibrations may be harmless, while low-frequency, high-amplitude vibrations may actually cause equipment shutdowns or structural damage. A comprehensive assessment must be made by considering both velocity and acceleration.

❌ Misconception 3: Vibrations with high velocity must have high acceleration

Correct answer: Incorrect. Low-speed, high-frequency vibrations have moderate velocity but extremely high acceleration; high-speed, steady vibrations have high velocity but very low acceleration. The key factor is the frequency.

06 Summary of the Entire Text (Quick Notes on Key Points)

1.Fundamental relationship: These three are different-dimensional descriptions of the same simple harmonic motion; there is a fixed calculus-based relationship among them, and frequency is the core variable linking them;

2.Numerical relationships: Speed ∝ frequency; acceleration ∝ frequency squared; frequency has the most significant amplifying effect on acceleration;

3. Role allocation by frequency: low frequency measures displacement, medium frequency measures velocity (as per the national standard), and high frequency measures acceleration;

4. Key Functions: Frequency is used to identify the root cause of faults; velocity is used to assess equipment condition; and acceleration is used to detect early-stage impact wear.

Only by understanding the underlying relationships among these three elements can one truly interpret vibration data, moving beyond simply “reading numbers” to “understanding the principles and diagnosing faults,” thereby making equipment operation and maintenance more precise and efficient.
