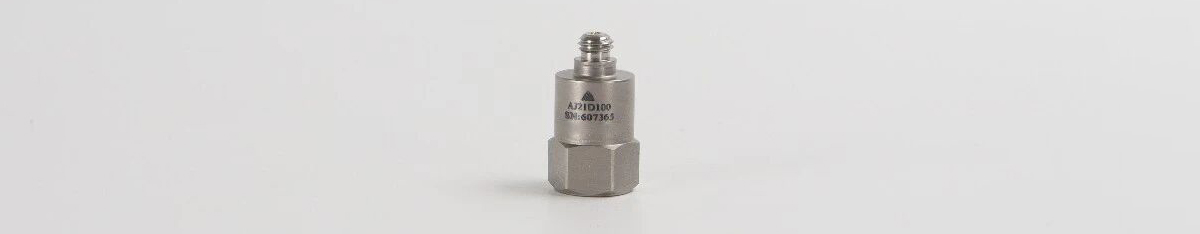

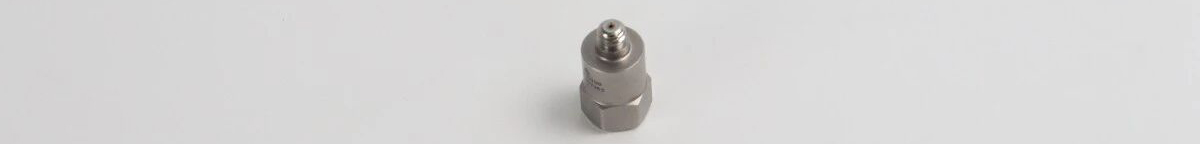

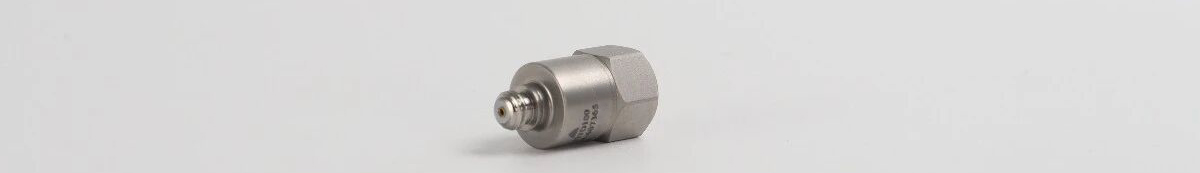

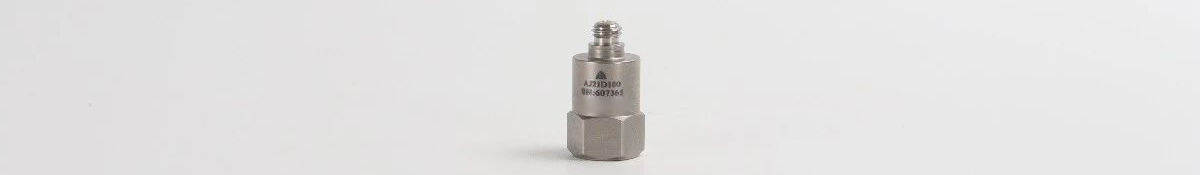

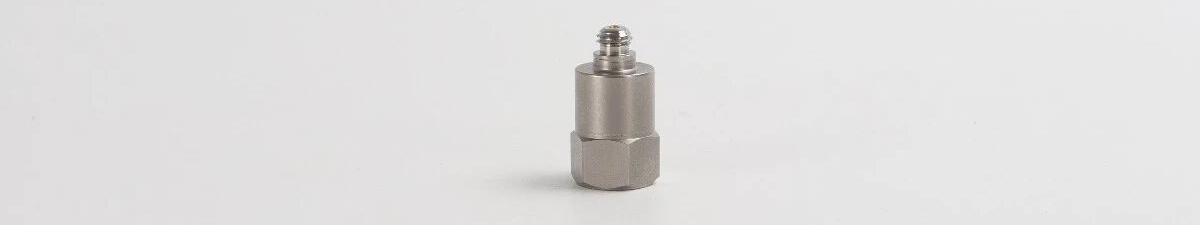

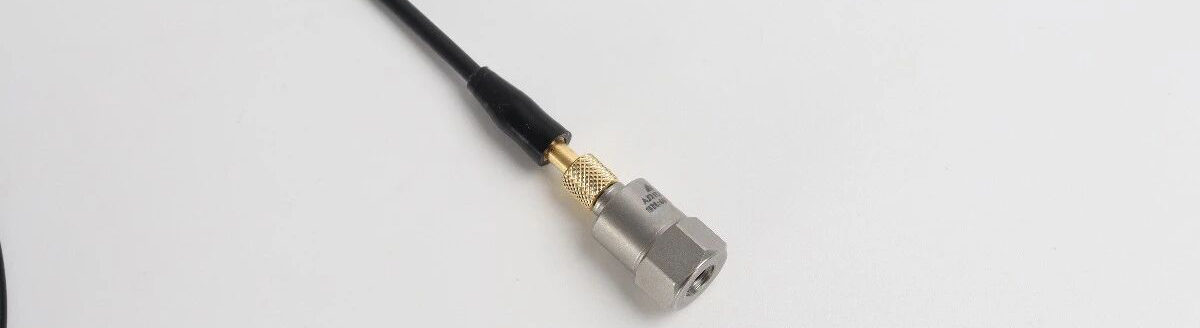

100 mV/g Uniaxial Accelerometer, IEPE Type

100 mV/g Uniaxial Accelerometer, IEPE Type

Sensor Features:

• Lightweight and compact

• Wide frequency response and high resolution

• Built-in circuitry and low-impedance output

Sensor Applications:

• Modal testing of microstructures

Dynamic Characteristics

Sensitivity: 100 mV/g

Measurement Range: ±50 g

Frequency Range: 1–10 kHz (±5%), 0.5–12 kHz (±10%)

Mounting Resonance Frequency: ≥35 kHz

Wideband Resolution: 0.00015 g rms

Amplitude Linearity: ≤1%

Transverse Sensitivity: <5%

Electrical Specifications

Power Supply: 18–30 VDC

Supply Current: 2–20 mA

Output Impedance: ≤100 Ω

DC Offset Voltage: 10 ± 2 VDC

Environmental Parameters

Maximum shock value: ±5,000 g pk

Operating temperature: -40 to 120 °C

Physical Specifications

Sensing Element: Piezoelectric Ceramic

Structure Type: Shear

Housing Material: Titanium Alloy

Sealing Method: Laser Welding

Dimensions: φ10.9 mm x 23 mm

Weight: 6.2 grams

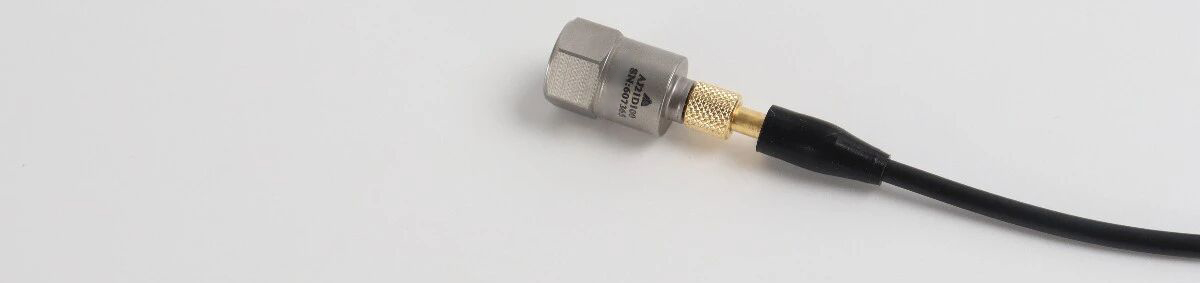

Output Type: Top-mounted L5 connector

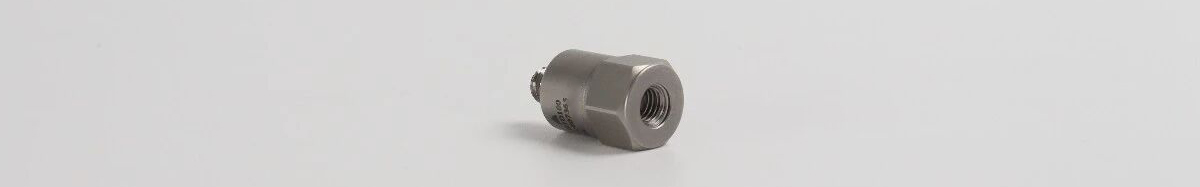

Mounting Method: Adhesive / M5 threaded hole

Yangzhou Xiyuan Electronics specializes in the research and development of vibration sensors and continuously optimizes their performance. This general-purpose IEPE accelerometer combines portability, measurement accuracy, and practicality, effectively addressing common challenges in testing small components.
