Explosion-Proof Acceleration Sensors for Reciprocating Compressors

Explosion-Proof Acceleration Sensors for Reciprocating Compressors

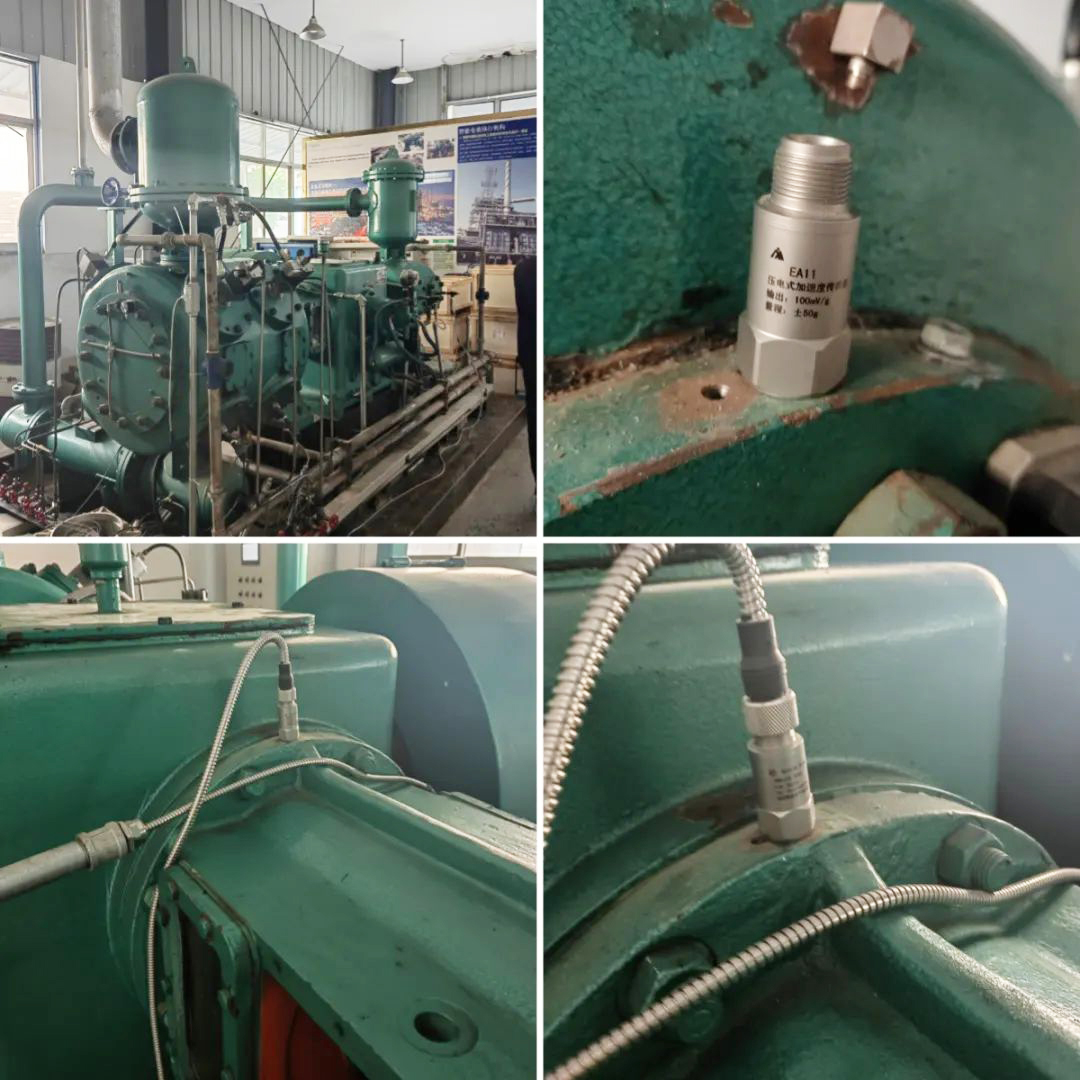

Installation of IEPE type vibration acceleration sensors with explosion-proof certification on reciprocating compressors, the core role is to realize real-time diagnosis of equipment health status, early warning of failures and safety protection through vibration monitoring, especially for petroleum, chemical and other flammable and explosive environments.

1.Safety and explosion protection

● Explosion-proof certification: Passed the national explosion-proof certification (ExibIICT4/T6 Ga), meets the mandatory safety standards for explosive gas environments (e.g., hydrogen, methane), and avoids the risk of explosion caused by electric sparks.

●Intrinsically Safe Design: Adopting isolated IEPE structure and internal circuitry with energy-limiting design, even if the sensor malfunctions, it will not release enough energy to ignite the explosive environment.

● Rigorous environmental adaptability: operating temperature range -40 ℃ ~ 120 ℃, stainless steel shell protection, corrosion resistance, dust and moisture (IP67 level), suitable for compressor high temperature, high humidity, oil environment.

2.Installation and Maintenance Advantages

● Compact design: φ22×52.5mm size, 1/4-28 thread mounting, adapted to the narrow space of compressor.

● Anti-interference ability: double shielding tape isolation, reduce structural strain interference; shear structure to reduce the effect of temperature drift.

● Long life maintenance: shock resistance of 5000g, resistant to compressor start-stop shock.

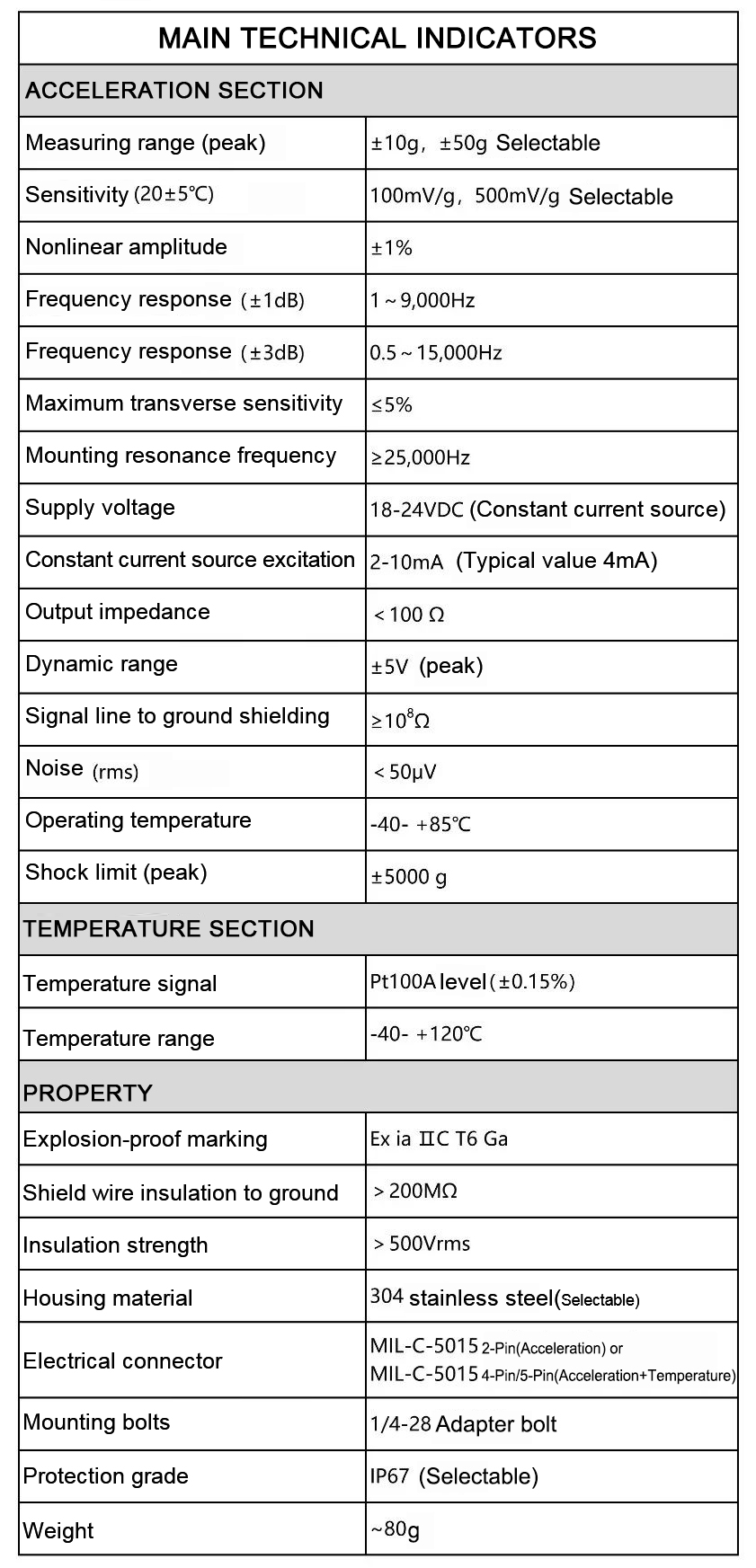

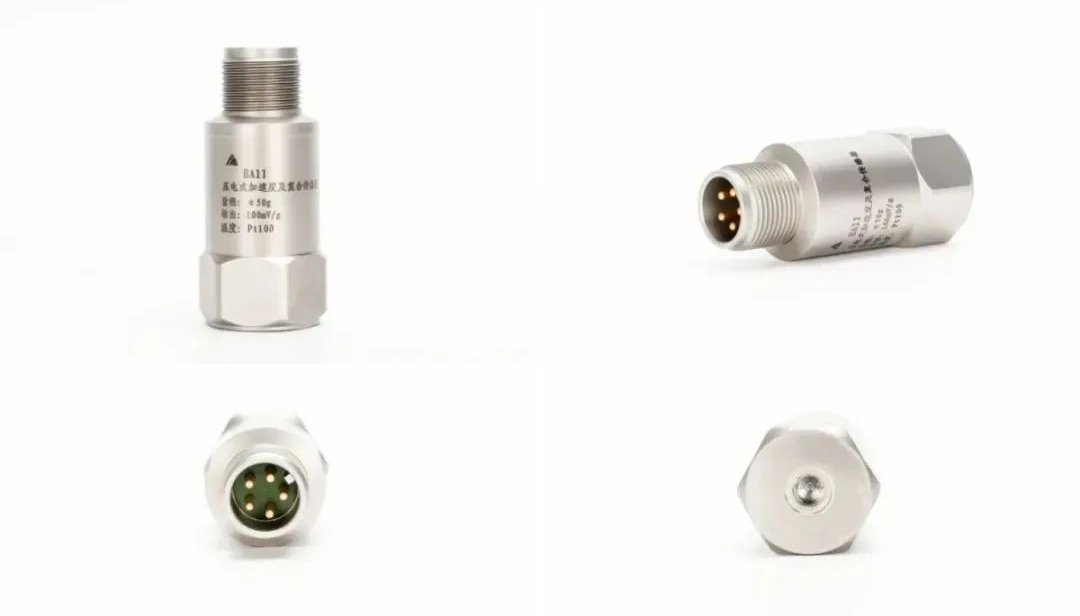

EA11 Explosion-proof Acceleration Sensor Introduction.

Summary:

The vibration acceleration sensor is the “nerve endings” of reciprocating compressors, and by capturing mechanical vibration signals, it realizes precise intervention at the budding stage of failure. Its value not only lies in real-time protection of equipment, but also promotes the change of operation and maintenance mode from “after-the-fact repair” to “predictive maintenance”, which is a key infrastructure for industrial intelligent upgrading.

Yangzhou Xiyuan Electronic Technology Co., Ltd. is a national high-tech enterprise specializing in the design, development and production and sales of sensors. The company passed the ISO9001: 2015 version of the quality management system certification, a variety of products through the explosion-proof certification, with a large number of patents, comprehensive development capabilities, product range of the full range of sensors production and manufacturing enterprises. The various types of sensors produced by the company are mainly used in aerospace, energy and power, iron and steel, civil engineering, petrochemical, machinery manufacturing, scientific research institutes, colleges and universities and other fields.
