High Sensitivity Accelerometer

Views: 0 Author: Site Editor Publish Time: 2026-10-15 Origin: Site

Product Overview

In construction, bridge, dam and geological research projects, many critical vibration signals are weak low-frequency vibrations. These vibrations have small amplitudes and extremely low frequencies, making them difficult to capture with ordinary accelerometers. Such applications impose stringent requirements on sensor sensitivity, low-frequency performance and anti-interference capability.

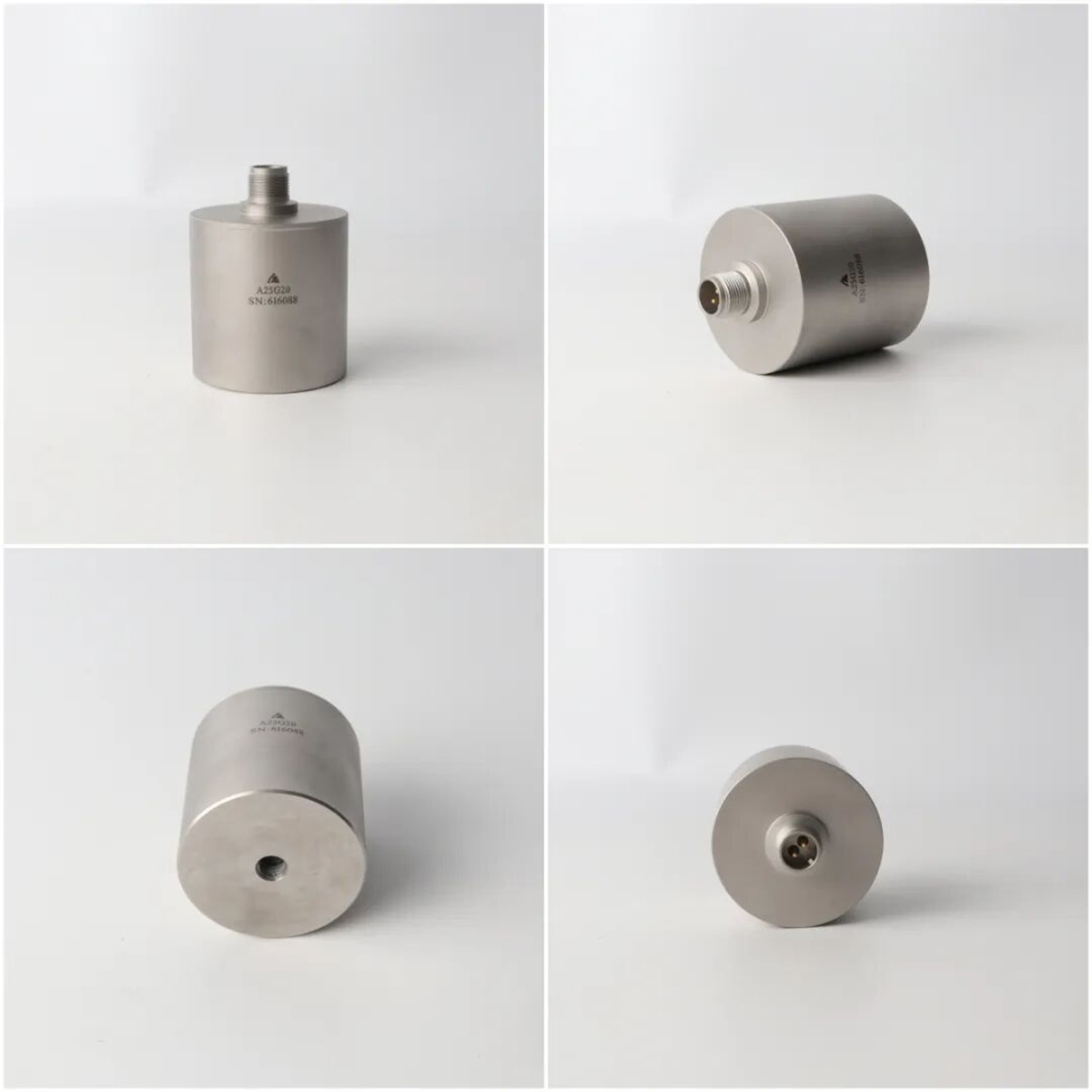

The high-sensitivity IEPE piezoelectric accelerometer from Yangzhou Xiyuan features a built-in IEPE preamplifier. Boasting high sensitivity, excellent low-frequency response and low self-noise, it is specially developed for low-frequency, low-vibration measurement scenarios. It delivers accurate and reliable raw data for testing and monitoring of large-scale infrastructure.

Product Features

▶ Ultra-high sensitivity for capturing micro-vibration signals Sensitivity reaches up to 50 V/g, optimized for faint vibrations. Minor vibration variations can be effectively identified and acquired.

▶ Outstanding low-frequency response to extract low-frequency vibration data Overcomes the low-frequency limitations of conventional piezoelectric sensors. It can effectively acquire ultra-low-frequency signals including wind-induced sway of high-rise buildings, modal vibration of bridges and ground site pulsation, ensuring dynamic stability during testing.

▶ Isolated floating structure to reduce noise interference Its unique isolated floating design suppresses ground loop interference and significantly reduces self-noise. The transverse sensitivity ratio is ≤5%, minimizing measurement errors caused by lateral vibration to guarantee authentic and reliable data.

▶ Robust and durable for complex field operating conditions It adopts a 304 stainless steel housing and shear structure with PZT‑5 piezoelectric material for stable performance. Operating temperature: -40℃ ~ +80℃. It is suitable for outdoor, field and construction sites with drastic temperature fluctuations.

Application Scenarios

✅ Building Vibration Monitoring | Wind-induced vibration of high-rise buildings, structural pulsation tests

✅ Earthquake-related tests

✅ Vibration safety monitoring of dam bodies

✅ Bridge structural tests & structural health monitoring

✅ Ground and foundation vibration, site pulsation monitoring

✅ Geological structure research, geophysical vibration scientific experiments

Whether for long-term on-site engineering monitoring or laboratory scientific tests, the sensor accurately picks up faint low-frequency vibrations that are easily overlooked. It helps engineers and researchers obtain the real vibration status of structures, and provides solid data support for infrastructure safety assessment and geological research.

Yangzhou Xiyuan Electronic Technology Co., Ltd. is a national high-tech enterprise specializing in sensor design, development, manufacturing and sales. The company has obtained ISO9001:2015 quality management system certification. Multiple products hold explosion-proof certifications. With numerous patents, strong comprehensive development capabilities and a complete product portfolio, we manufacture a wide range of sensors widely used in aerospace, energy & power, iron and steel, civil engineering, petrochemicals, machinery manufacturing, research institutes and universities.
