Micro Three-Axis Impact Accelerometer

Micro Three-Axis Impact Accelerometer

Dynamic Characteristics

Sensitivity: 0.25 mV/g (±10%)

Measurement Range: ±20,000 g pk

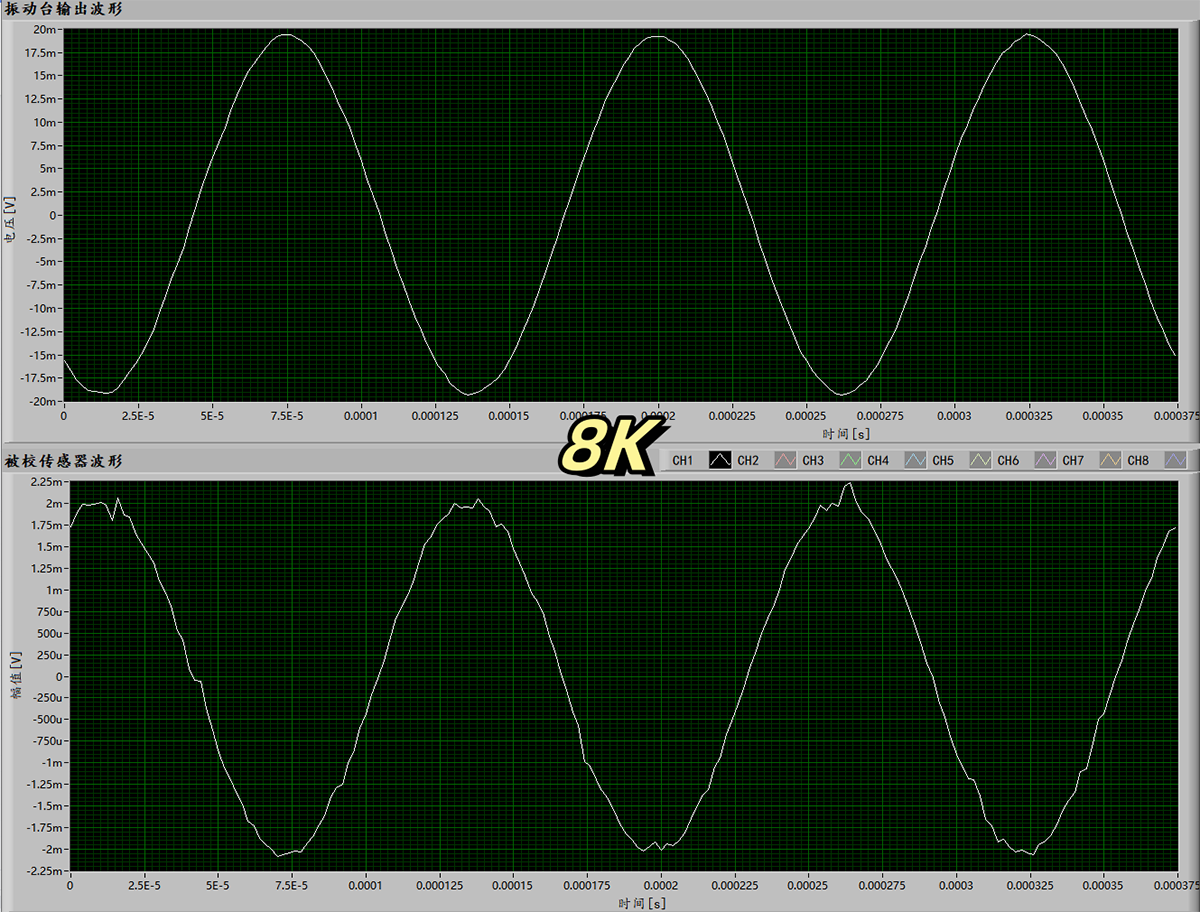

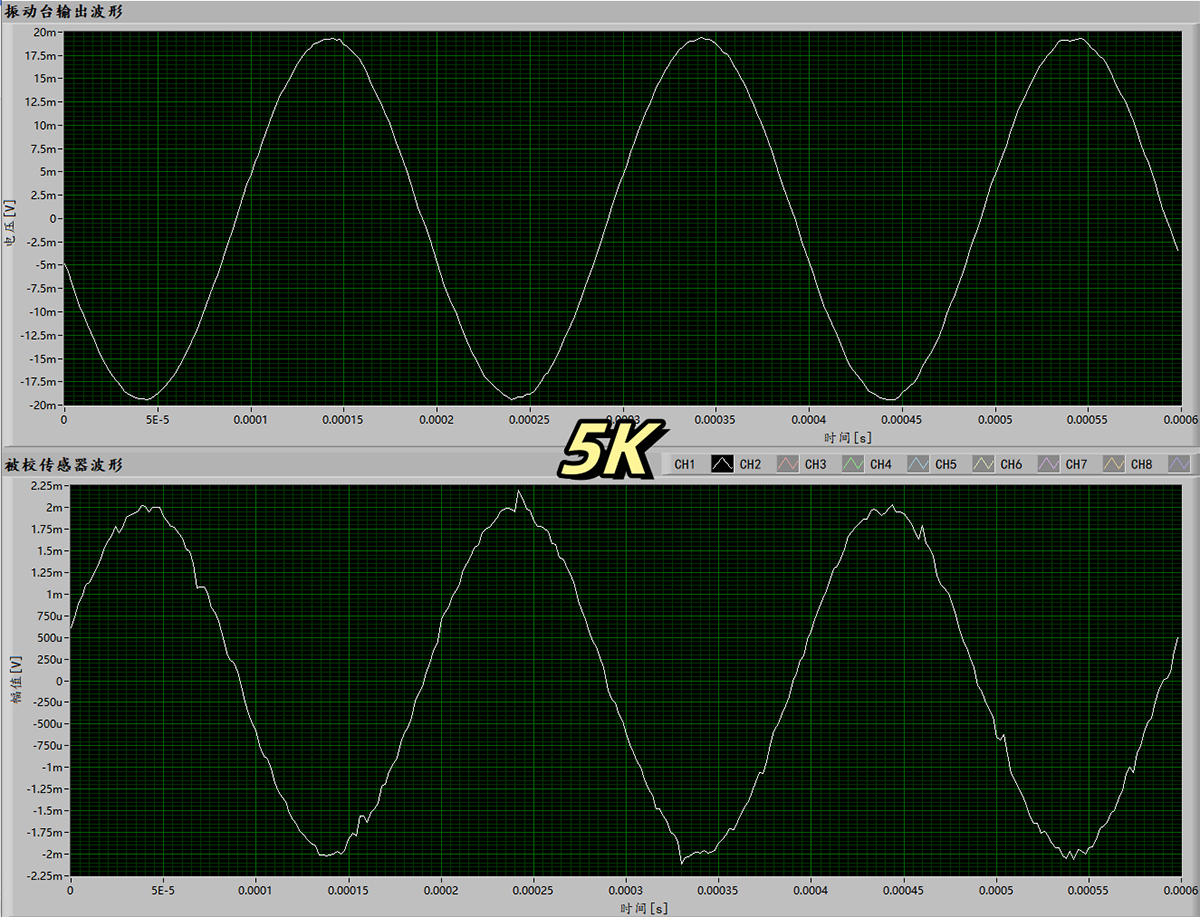

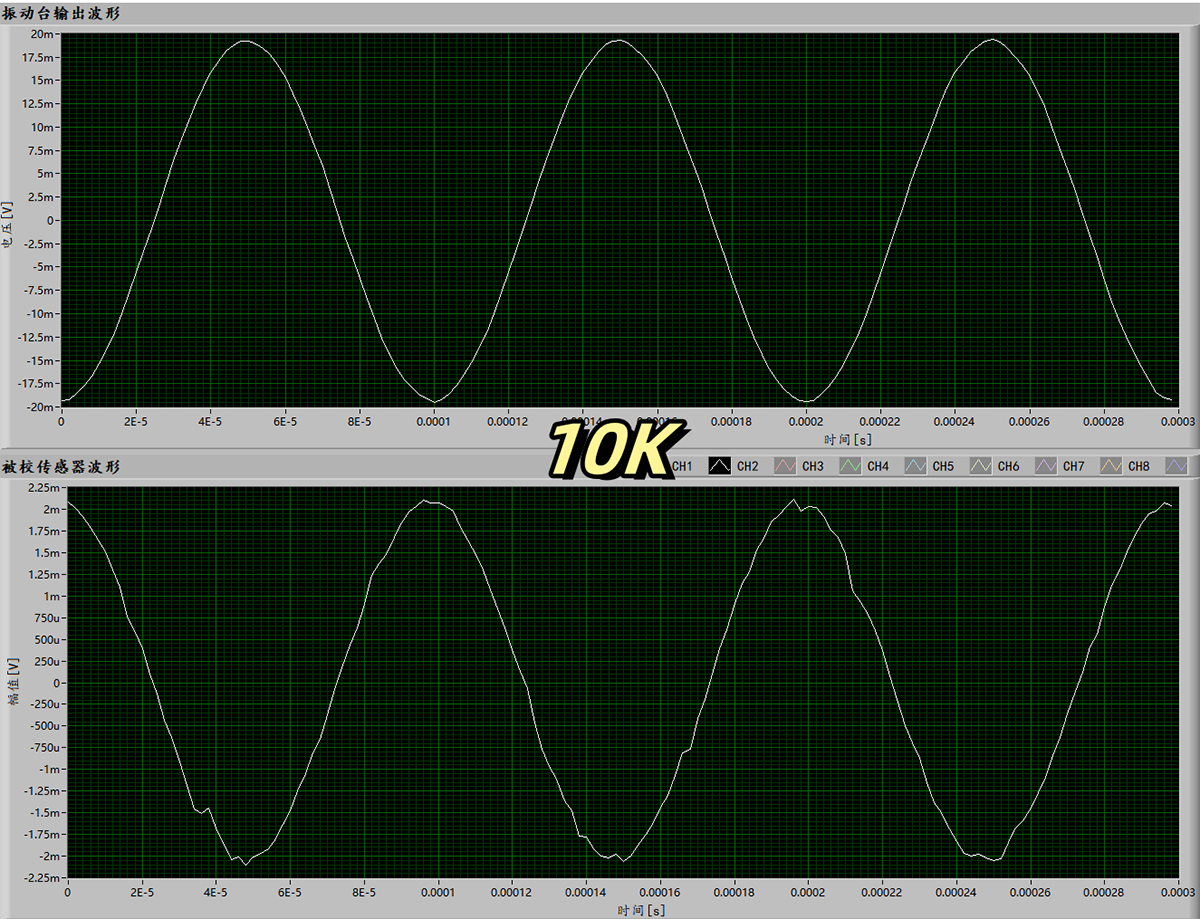

Frequency Range: 2 to 10 kHz (±5%)

1 to 15 kHz (±10%)

Mounting Resonance Frequency: ≥100 kHz

Wideband Resolution: 0.1 g rms

Amplitude Linearity: ≤5%

Transverse Sensitivity: <5%

Electrical Specifications

Power Supply: 18 to 30 VDC

Supply Current: 2 to 20 mA

Output Impedance: ≤ 100 Ω

DC Offset Voltage: 10 ± 2 VDC

Environmental Parameters

Maximum shock value: ±30,000 g pk

Operating temperature: -40 to 100 °C

Physical Parameters

Sensing Element: Piezoelectric Ceramic

Structure Type: Shear

Housing Material: Titanium Alloy

Sealing Method: Laser Welding

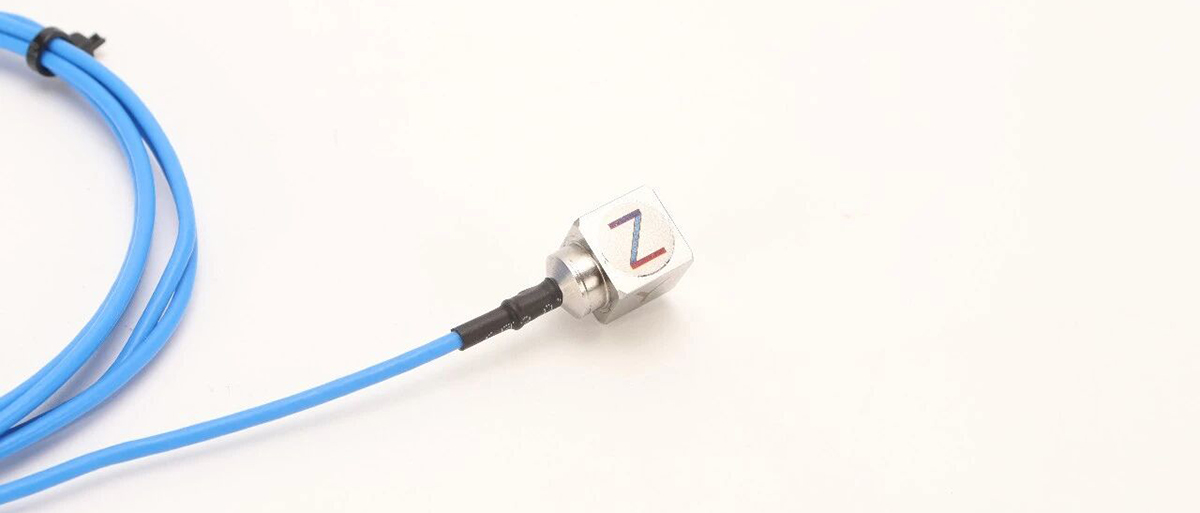

Dimensions: 10.2 mm x 10.2 mm x 10.2 mm

Weight: ~4.5 grams

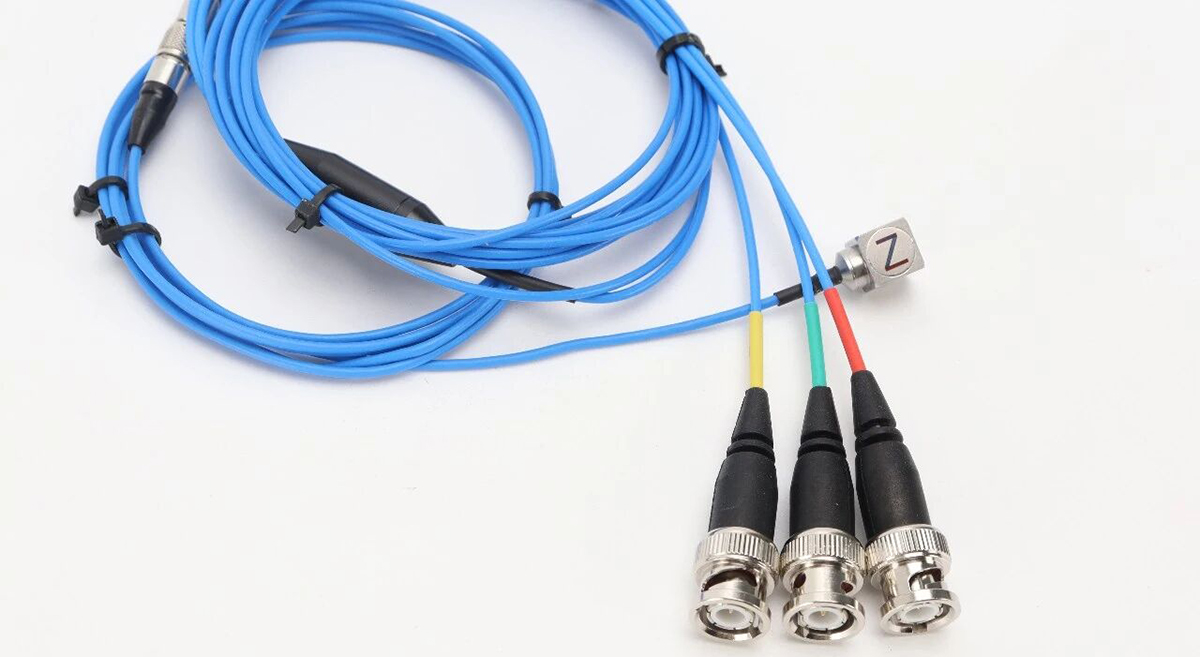

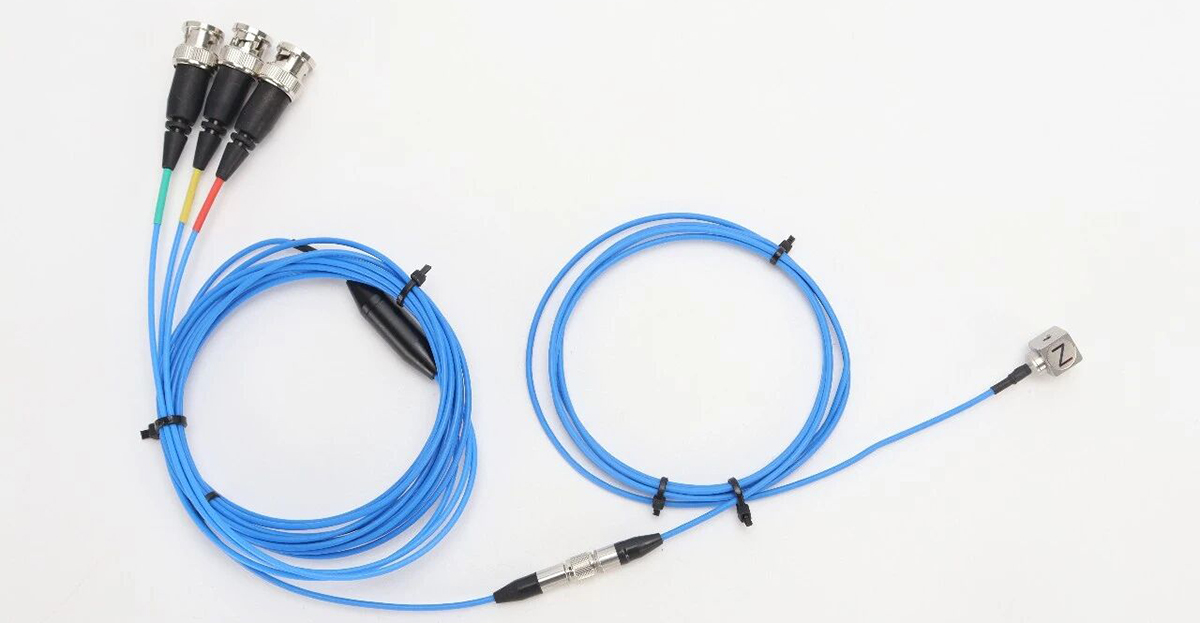

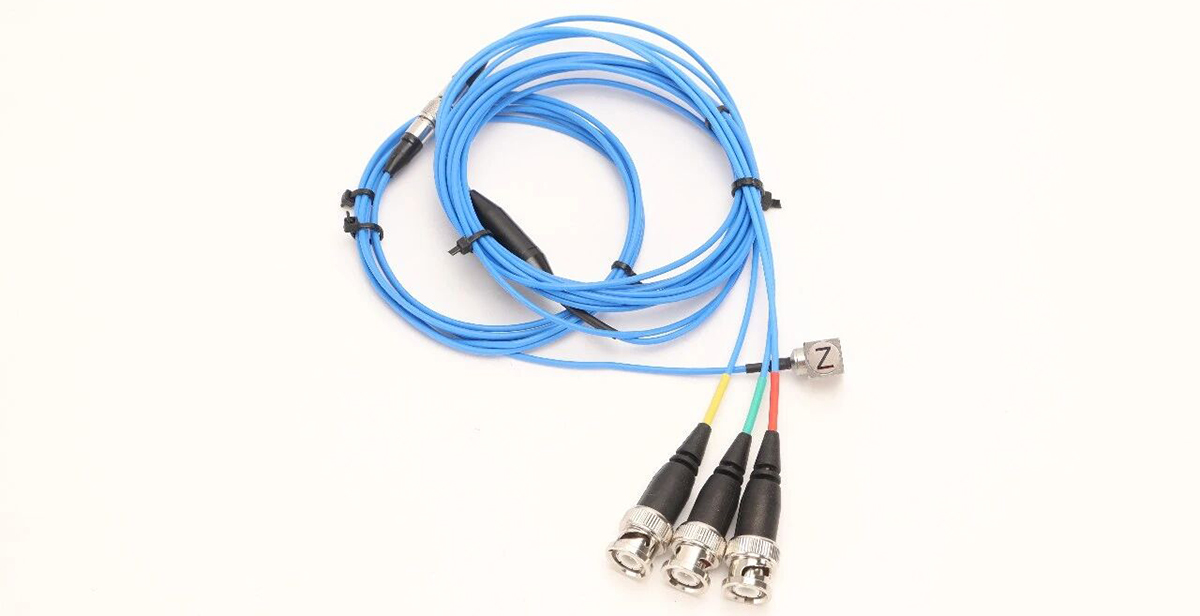

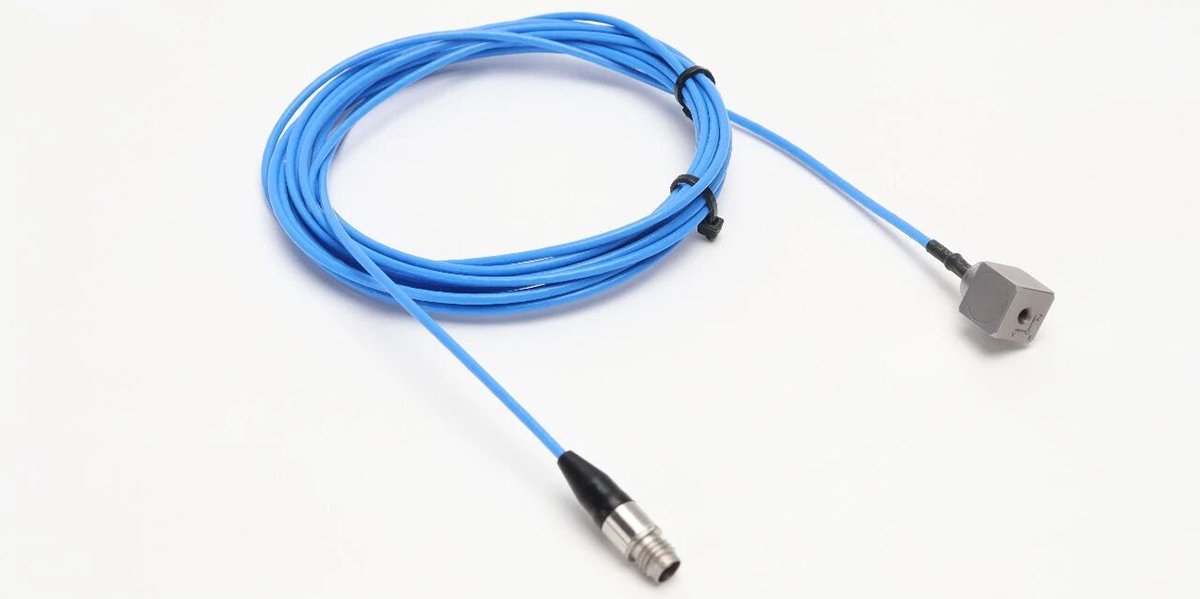

Output Type: Side-mounted integrated cable with 1/4-28 four-pin connector

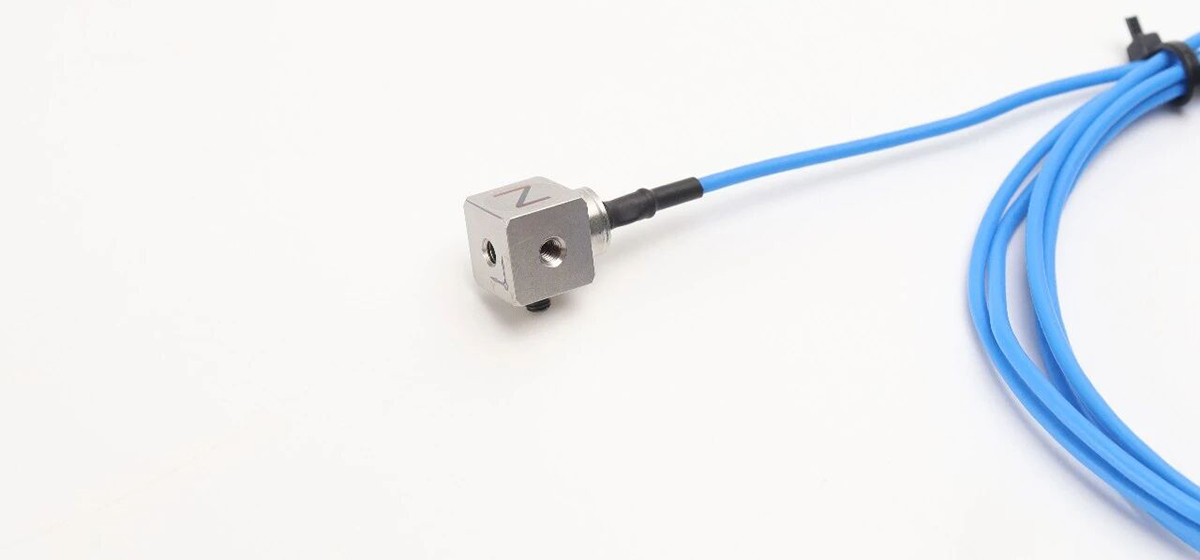

Mounting Method: Adhesive/M3 threaded holes

Included Sensor Accessories: • M3 bolts
