Vibration Monitoring of Mine Hoists: Accelerometers + Edge Computing Data Loggers

Equipment operation and maintenance are critical to mine safety. As the “lifeline” of vertical transportation in mines, mine hoists operate under harsh conditions characterized by heavy loads, high speeds, and high dust levels. If minor abnormal vibrations in core components—such as motors, gearboxes, and bearings—are not detected in a timely manner, they can easily lead to equipment shutdowns or even safety incidents.

Traditional manual inspection methods are not only inefficient and prone to delays, but they also leave blind spots, making it difficult to detect faint vibration signals in their early stages. Yangzhou Xiyuan Electronics, with its deep expertise in vibration monitoring, has developed a customized integrated monitoring solution tailored to the unique operating conditions of mine hoists. This solution combines a three-axis 1000 mV/g vibration accelerometer with a 24-channel edge computing data logger, leveraging digital technology to enhance mine safety.

Real-World Implementation | Precise Detection, Covering Key Monitoring Locations

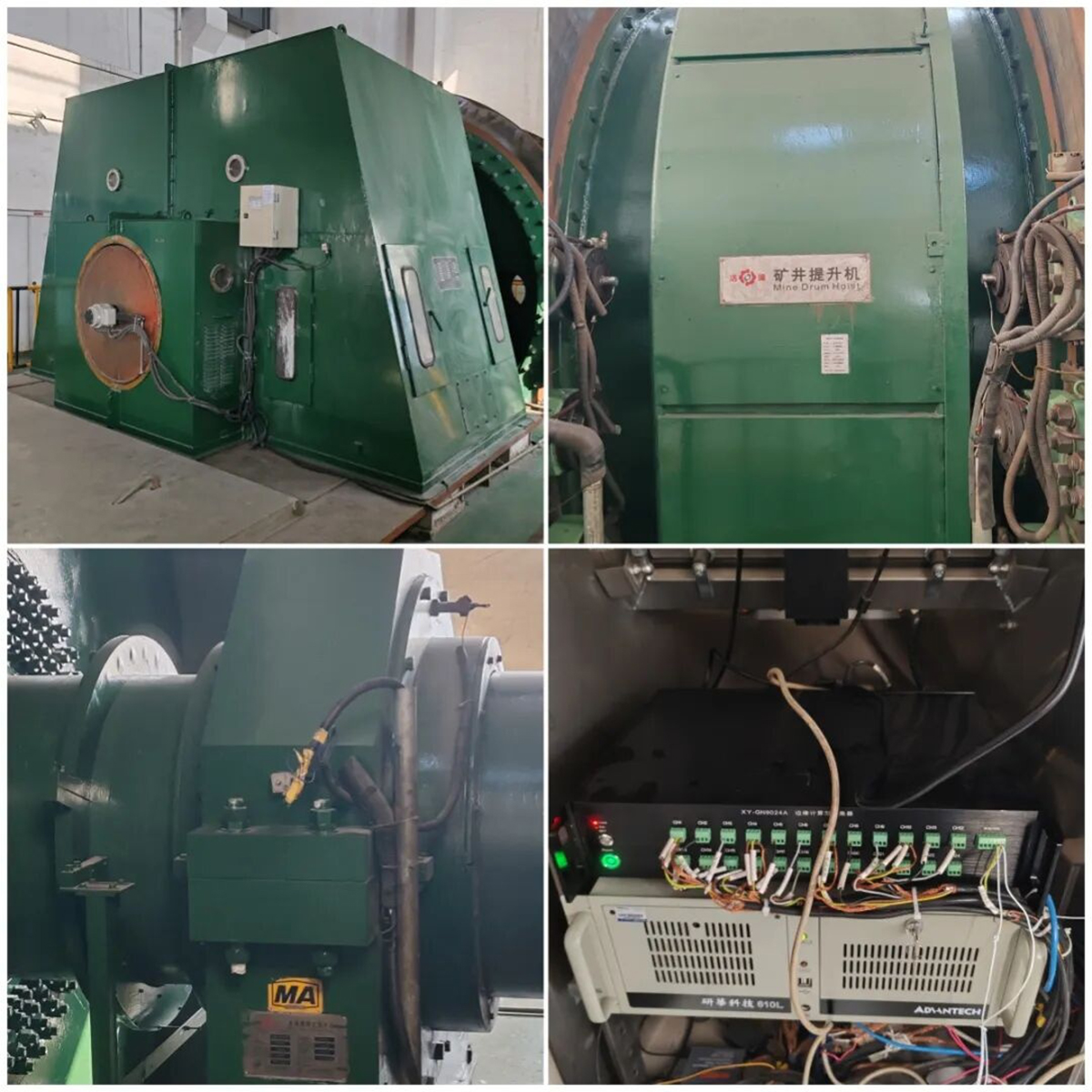

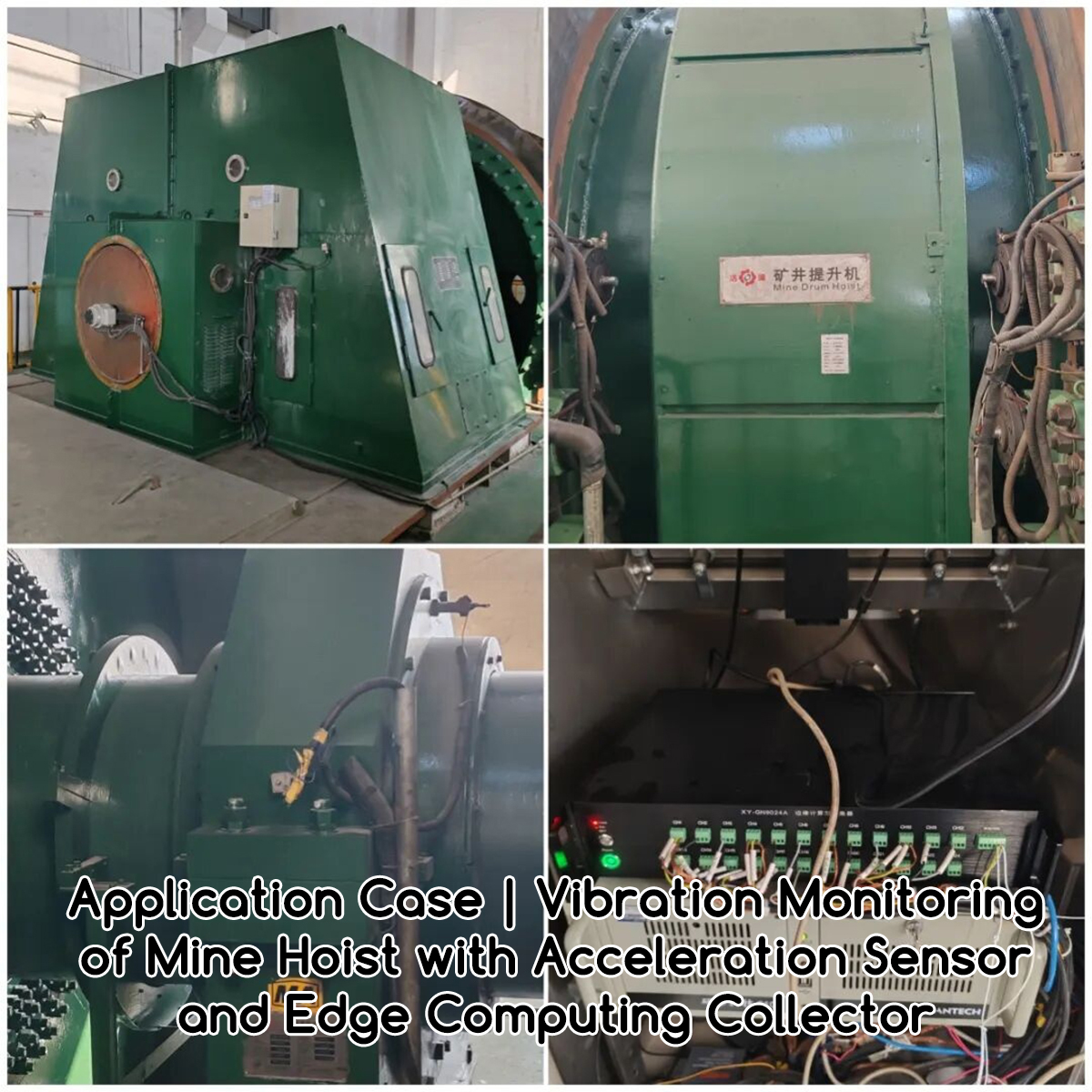

For this mining project, the Xiyuan technical team, taking into account the structural characteristics of the mine hoist and patterns of frequent failures, strategically deployed three-axis vibration accelerometers at key measurement points, including the motor bearing housing, gearbox housing, and drum support bracket.

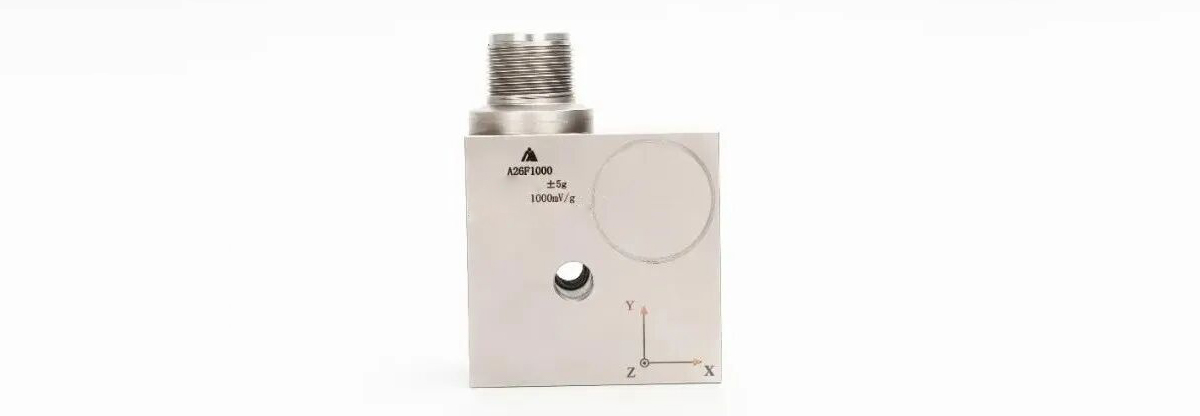

This three-axis 1000 mV/g vibration accelerometer is a flagship product developed by Xiyuan Electronics specifically for harsh industrial environments. It offers four key advantages:

✅ High sensitivity for detecting micro-vibrations: With a sensitivity of up to 1000 mV/g across the 0.2–4000 Hz frequency range, it accurately captures faint high-frequency vibration signals caused by early-stage bearing pitting and gear wear, providing early warning of latent faults;

✅ Three-axis synchronization for comprehensive monitoring: Simultaneous data acquisition across the X, Y, and Z axes provides full coverage of equipment vibration characteristics in multiple directions, preventing the omission of fault signals that might occur with single-axis monitoring;

✅ Dual-layer shielding, stable and durable: Stainless steel housing with laser welding and an IP67 protection rating ensures resistance to water, dust, and oil contamination, making it suitable for high-dust, high-humidity, and strong electromagnetic interference environments underground;

✅ Wide temperature range and shock resistance, suitable for harsh operating conditions: Operating temperature range of -40°C to 120°C ensures stable long-term operation and reduces maintenance costs.

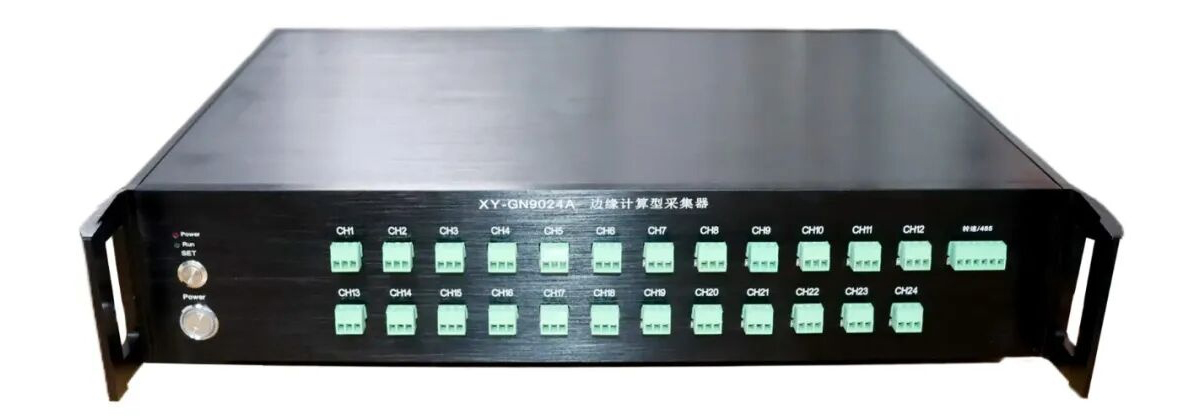

Real-time vibration data collected by the sensors is transmitted via a dedicated cable to a 24-channel edge computing data logger. This data logger serves as the “brain” of the system, capable of simultaneously processing 24 vibration signals to meet the requirements for synchronized monitoring across multiple measurement points on the hoist. Its core capabilities are outstanding:

1. Features an embedded system that enables automatic data collection, calculation, and early warning even without a host computer.

2. Supports multiple standard industrial protocols, facilitating seamless communication with PLCs, host computers, and cloud platforms.

3. Specifically designed for long-term online operation in industrial environments; it can resume normal operation even after power outages or system crashes.

4. It is particularly well-suited for unmanned industrial sites, such as wind turbine towers, power grid substations, pump monitoring, and bridge monitoring applications.

5. It can also be integrated with equipment to read and display relevant parameters via PLC communication, eliminating the need for a host computer.

Demonstrating Value | From “reactive repairs” to “proactive alerts,” since the system was deployed and put into operation, the monitoring of the mine’s hoists has taken a quantum leap forward, creating significant value for customers:

Safety Upgrades to Reduce the Risk of Accidents

By monitoring the vibration status of core components in real time, latent faults—such as bearing wear and abnormal gear meshing—can be identified weeks or even months in advance, thereby preventing sudden shutdowns and safety incidents and strengthening the safety defenses for mining operations;

Improved Efficiency, Reduced Downtime Losses

Replacing traditional manual inspections and eliminating the need for frequent trips into the mine, operations and maintenance personnel can monitor equipment health in real time from the central control room, improving inspection efficiency by more than 80%; by pinpointing the exact location of faults, repair times are shortened, and production losses caused by unplanned downtime are reduced;

Cost Optimization and Extended Equipment Lifespan

Predictive maintenance based on vibration data replaces the traditional “scheduled major overhaul” model, avoids excessive maintenance, and reduces maintenance costs; it enables the timely detection and resolution of early-stage faults, preventing them from worsening and causing damage to core components, thereby effectively extending the service life of the hoist;

Data-Driven Solutions for Smart Mines

Vibration data accumulated by the system over time can be used to create equipment health records, providing data support for subsequent equipment optimization and maintenance strategy updates, and helping mines transition toward intelligent and digital operations.

Summary

From laboratory technology to real-world implementation in mines, Yangzhou Xiyuan Electronics has consistently focused on addressing the pain points of vibration monitoring in industrial equipment. With highly reliable sensors and intelligent edge computing at its core, the company provides customized monitoring solutions for industries such as mining, power generation, and petrochemicals.

In the future, Xiyuan Electronics will continue to deepen its expertise in vibration sensing and intelligent monitoring, continuously optimize product performance, and expand application scenarios. Through precise, stable, and efficient monitoring technology, the company will help more industrial enterprises achieve safe production, reduce costs, and improve efficiency, thereby contributing to the digital transformation of the industrial sector!
