A26F100Z
Xiyuan

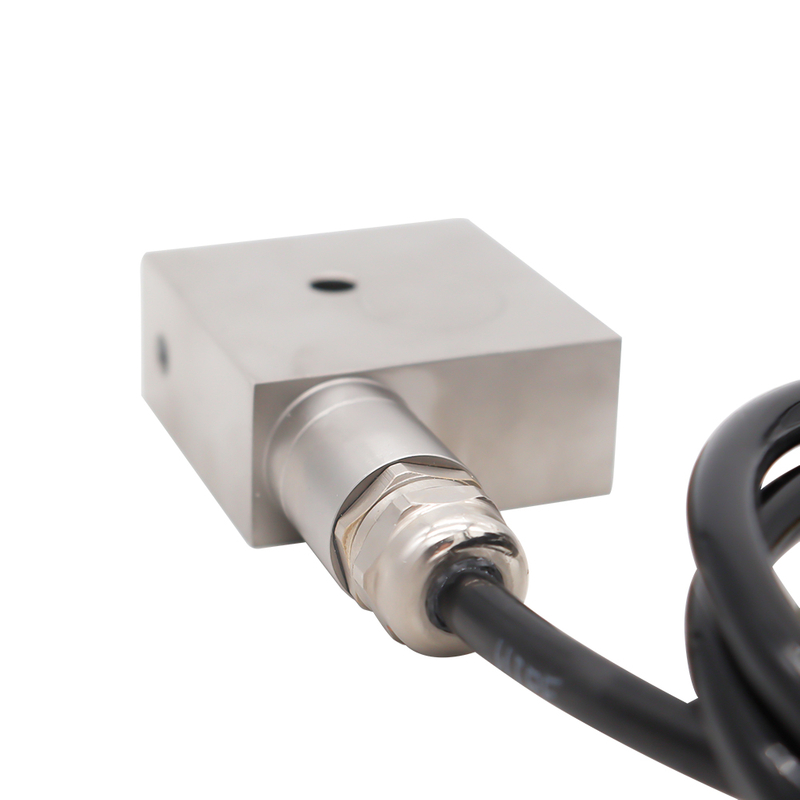

100mV/g Sensitivity IEPE Piezoelectric Accelerometer Sensor Industrial Vibration Monitoring for Machinery
This series of acceleration sensors for vibration and temperature dual output composite sensors, stainles steel shell, laser welding sealing, high reliablity, double shielding anti-interference ability, suitable for a variety of harsh environments for long-term reliable work.
Aplied to industrial rotating machinery, rail transportation, intelligent ships and other transmission systems, gears, bearings, drive shaft vibraton temperature dualparameter monitoring.
| Characterization | Unit | A26F100Z |
| Measuring range (peak) | g | ±50 |
| Sensitivity (25°C) | mV/g | 100 (160HZ) |
| Frequency response | Hz | 10-5,000（±5%） |
| Excitation voltage | VDC (Constant current source) | 18~28 |
| Constant current source excitation | mA | 2~10 |
| Output impedance | Ω | <100 |
| Full scale output (peak) | V | ±5 |
| Noise (rms) | μV | <200 |
| Bias voltage | VDC | +10-+14 |
| Mounting insulation to ground | Ω | ≥10 8 |
| Operating temperature | ℃ | -40~+85 |
| Housing material | 304 stainless steel | |
| Weight | g | ~200 |
