100mV/g 18-28VDC Constant Current Excitation IEPE Piezoelectric Accelerometer Sensor for Industrial Vibration Monitoring

Voltage - Supply:18VDC~28VDC(current source)
Output Type:Voltage type
Current - Supply:2~10mA(typical 4mA)
Operating Temperature:-40℃~+120℃
Features:Three-way output
Frequency:1~4,000Hz(±10%), 0.7~8,000Hz(±3dB)
Output Configuration:M12*1 Four core cable
Size / Dimension:47*31*16.3mm
Measuring Range:±80g
Function:Vibration isolation floating
Sensitivity (mV/g):100mV/g (160HZ)
Voltage - Max:±8V
Resistance:<100 Ω

Model:
A26F100Z
Brand:
Xiyuan

Availability:



Inquire Add to Basket

100mV/g 18-28VDC Constant Current Excitation IEPE Piezoelectric Accelerometer Sensor for Industrial Vibration Monitoring

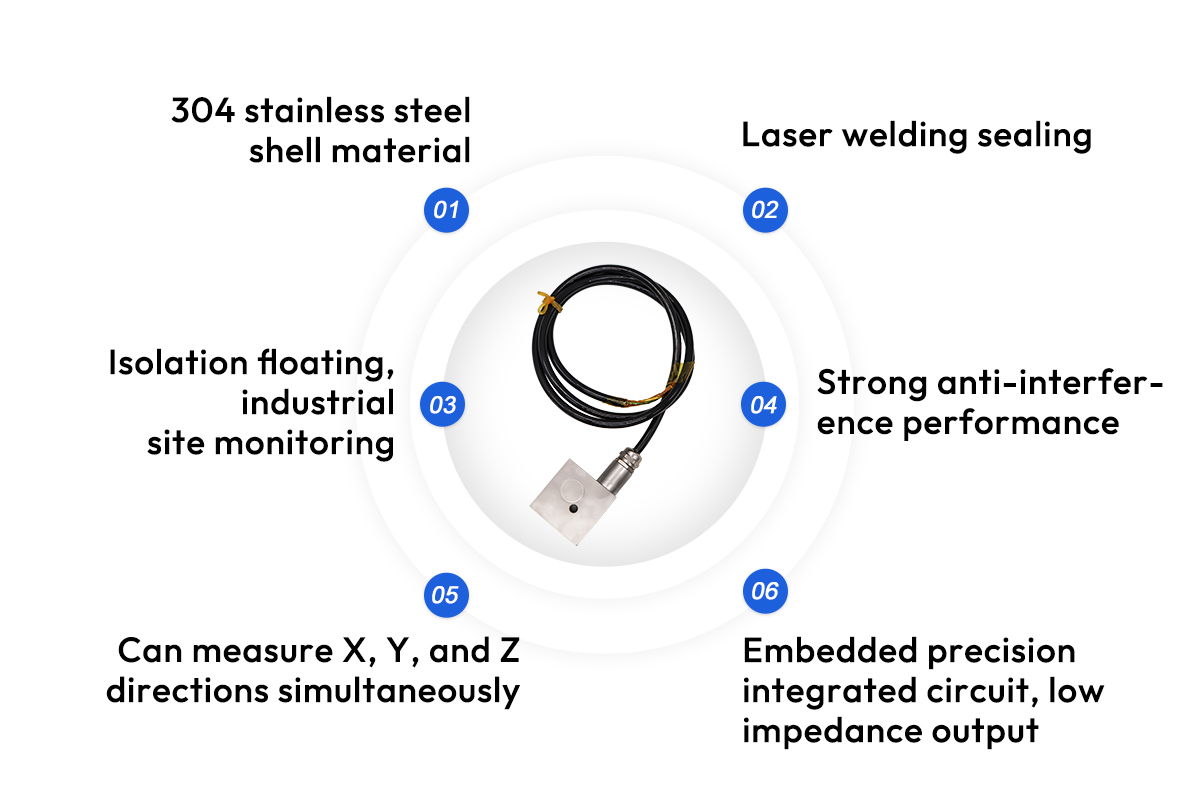

This series of acceleration sensors for vibration and temperature dual output composite sensors, stainles steel shell, laser welding sealing, high reliablity, double shielding anti-interference ability, suitable for a variety of harsh environments for long-term reliable work.

Aplied to industrial rotating machinery, rail transportation, intelligent ships and other transmission systems, gears, bearings, drive shaft vibraton temperature dualparameter monitoring.

6 - 副本

Characterization	Unit	A26F100Z

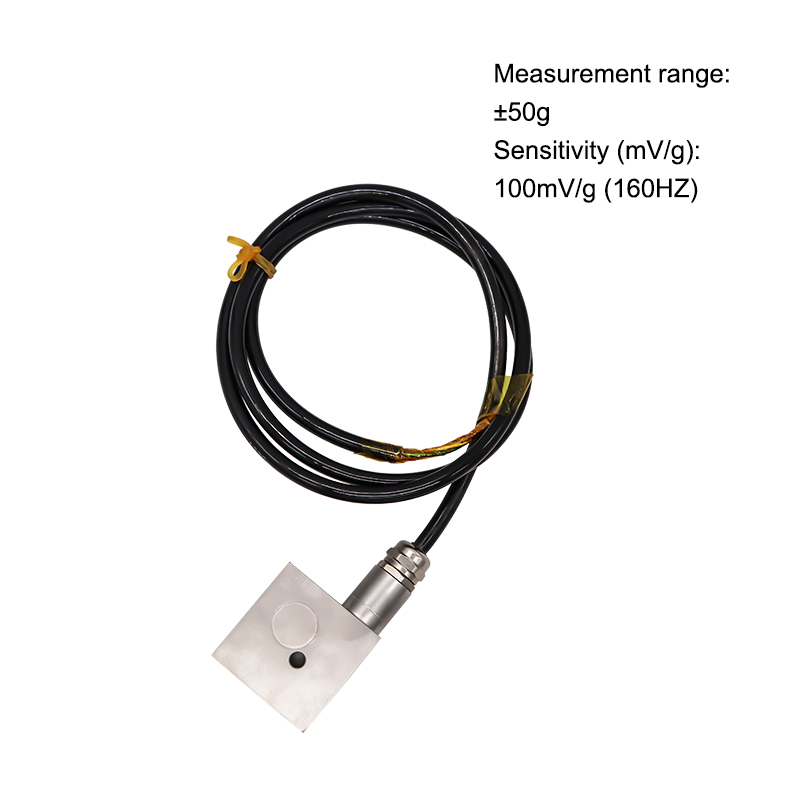

Measuring range (peak)	g	±50
Sensitivity (25°C)	mV/g	100 (160HZ)
Frequency response	Hz	10-5,000（±5%）
Excitation voltage	VDC (Constant current source)	18~28
Constant current source excitation	mA	2~10
Output impedance	Ω	<100
Full scale output (peak)	V	±5
Noise (rms)	μV	<200
Bias voltage	VDC	+10-+14
Mounting insulation to ground	Ω	≥10 ⁸
Operating temperature	℃	-40~+85
Housing material		304 stainless steel
Weight	g	~200
