GSY20
Xiyuan

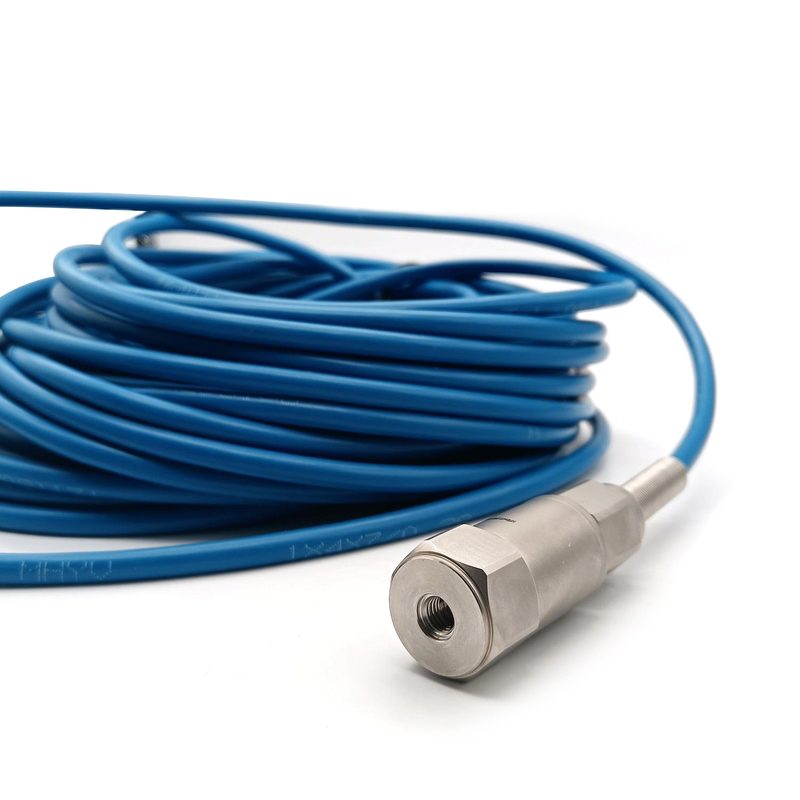

4~20mA Analog Output Universal Vibration Transducer Mine Intrinsically Safe Vibration Velocity Sensor
| Measurement range (RMS) | 0~20mm/sec |
| Output | 4~20mA |
| Amplitude nonlinearity | <2% |
| Frequency response | 10~1,000Hz (+1dB) |
| Transverse sensitivity | <5% |
| Supply voltage | 15VDC~30VDC |
| Install insulation to ground | >108Ω |
| Working temperature | -40°C~+85℃ |
| lmpact limit (peak) | 2000g |
| Structural form and piezoelectric materials | Shear/ PZT-5 |
| Shell material | 304 Stainless steel |
| Electrical connector | Integral line |
| Installation method | 1/4-28 |
| Protection level | IP67 |
| Weight | ~80g |
| ACCESSORIES | |
| Install bolts | 1/4-28 |
| Connecting cables | MIL-C-5015 2-pin connecting cable (3 m) |
