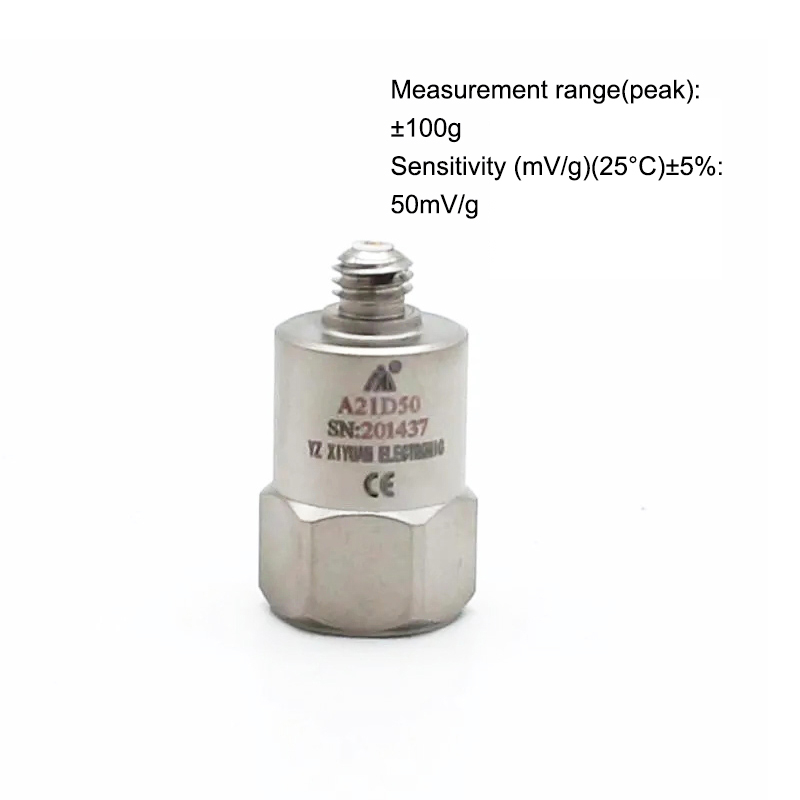

A21D50 Single Axis Voltage Output Type Pizeoelectric Acceleration Sensor IEPE Accelerometer 50mV/g

Operating Temperature:-40℃~+120℃
Features:Simplify testing systems
Frequency:0.5-8,000Hz
Output Configuration:Top M5
Current:2-10mA
Voltage Rating:18VDC-28VDC(current source)
Size / Dimension:13*23mm
Measuring Range:±100g
Function:Universal vibration and shock measurement
Sensitivity (mV/g):50mV/g (160Hz)
Resistance:<100 Ω
Flow Sensor Type:Piezoelectric Acceleration Sensor(IEPE)
Transverse Sensitivity Ratio:≤5%
Full range output(peak):±5V
Noise:<50μV
Bias voltage:+9-+12V
Shock Resistance(peak):±3000 g

Model:
A21D50
Brand:
Xiyuan

Availability:



Inquire Add to Basket

A21D50 Single Axis Voltage Output Type Pizeoelectric Acceleration Sensor IEPE Accelerometer 50mV/g

Characteristic:

The series of industrial acceleration sensors are stainless steel shell, laser welding sealing, shell insulation, waterproof, dust-proof, oil-proof design, suitable for industrial sites in a variety of. It is suitable for long-term reliable and stable work in various harsh environments in industrial sites, and is widely used in fan condition monitoring, operation and maintenance of industrial sites, process monitoring and protection.

Advantages:

Built-in IEPE circuit, isolated floating, two-core low resistance voltage or 4-20mA output, strong anti-interference.

详情01

A21D50-2

Characterization	Unit	A21D01	A21D05	A21D10	A21D20	A21D50	A21D100	A21D200	A21D500
Measurement Range (peak)	g	±5000	±1000	±500	±250	±100	±50	±25	±10
Frequency range（土1dB）	Hz	1-12K	1-12K	1-10K	1-10K	0.5-8K	0.5-8K	0.5-5K	0.5-3K
Resonant Frequency	Hz	≥45K	≥45K	≥40K	≥40K	≥30K	≥30K	≥15K	≥10K
Housing Material		Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Weight	g	~9.5	~9.5	~9.5	~9.5	~13	~13	~28	~40

详情页_02通用

详情页_06

详情页_10
