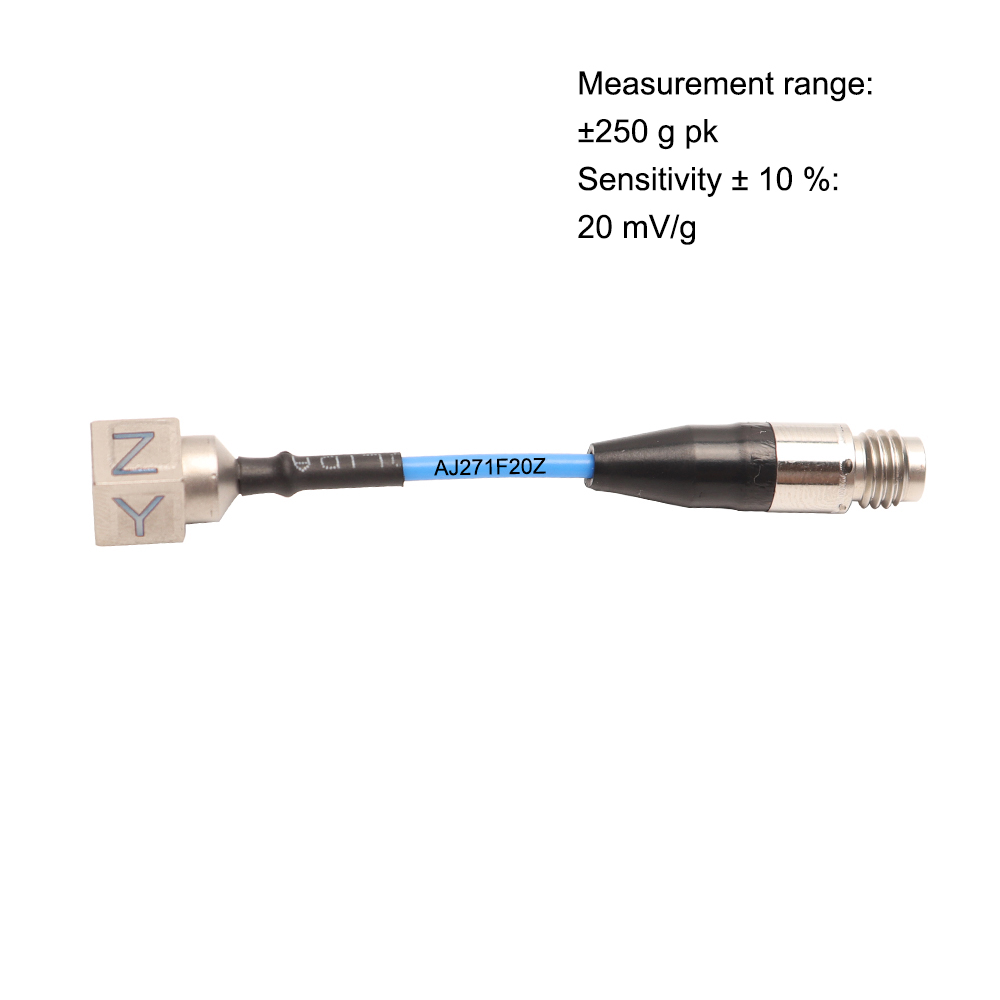

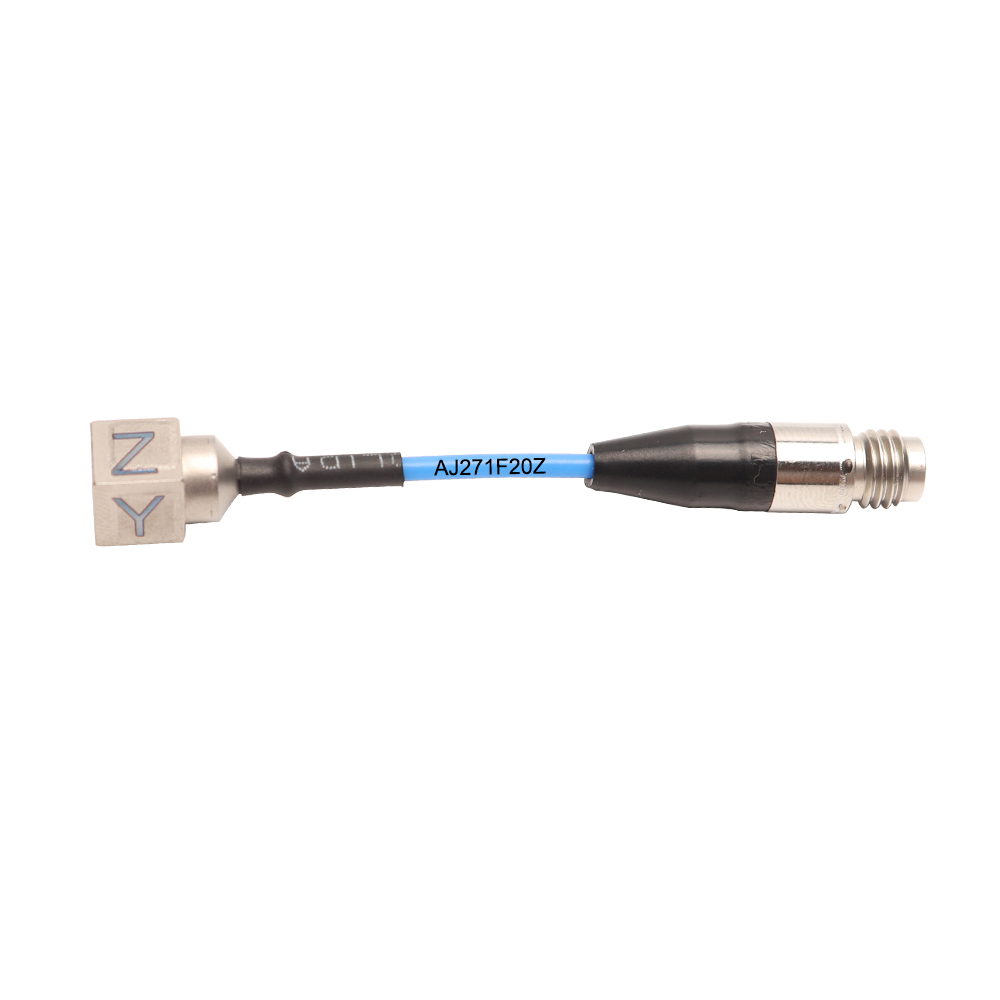

AJ271F Small 3-Axis Piezoelectric Accelerometer Sensor, 10 MV/g Sensitivity, Ideal for Robotic Impact & Drop Testing

Can completely replace PCB

Voltage - Supply:18 ~ 30 VDC
Output Type:Side 1/4-28 4-Pin Socket
Features:Small and lightweight
Frequency:2~ 8 kHz
Output Configuration:Side 1/4-28 4-Pin Socket
Current:2 ~ 20 mA
Size / Dimension:10.2mm x 10.2mm x 10.2mm
Measuring Range:±250 g peak
Sensitivity (mV/g):20mV/g
Resistance:<100 Ω
Flow Sensor Type:Piezoelectric Accelerometer Sensor
Transverse Sensitivity Ratio:≤5%
Bias voltage:10 ± 2 VDC
Shock Resistance(peak):±5000 g
Structural Style:Shear
Piezoelectric Materials:Piezoelectric Ceramic
Weight:4.6g
Mounting Type:Adhesive Bonding/ M3Threaded Hole
Broadband Resolution:0.001g rms
Operating Temperature:-40 ~ 120 °C

Model:
AJ271F20Z
Brand:
Xiyuan

Availability:



Inquire Add to Basket

AJ271F Small 3-Axis Piezoelectric Accelerometer Sensor, 10 MV/g Sensitivity, Ideal for Robotic Impact & Drop Testing

Can completely replace PCB

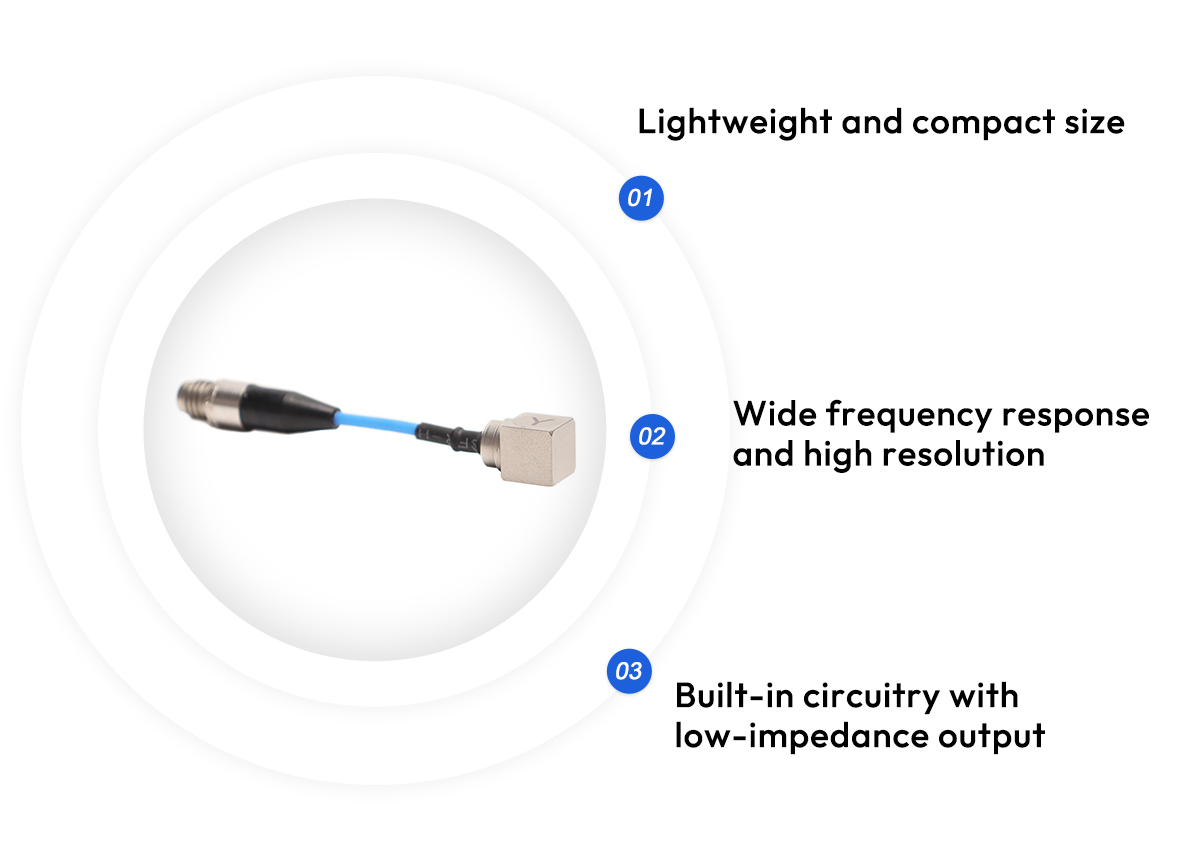

18 - 副本

Model	AJ271F05Z	AJ271F10Z	AJ271F20Z	AJ271F50Z	AJ271F100Z
Dynamic Characteristics
Sensitivity ± 10 %	5mV/g	10mV/g	20mV/g	50mV/g	100mV/g
Measurement Range	±1000 g pk	±500 g pk	±250 g pk	±100 g pk	±50 g pk
Frequency Range ± 5 %	1～ 10 kHz	1 ～ 10 kHz	2 ～ 8 kHz	2～ 8 kHz	2 ～ 8 kHz
± 10 %	0.5 ～ 12 kHz	0.5 ～ 12 kHz	1 ～ 10 kHz	1～ 10 kHz	1 ～ 10 kHz
Mounted Resonant Frequency	≥40 kHz	≥40 kHz	≥40 kHz	≥35 kHz	≥35 kHz
Broadband Resolution	0.001 g rms	0.001 g rms	0.001 g rms	0.001 g rms	0.0005 g rms
Amplitude Linearity	≤ 1 %	≤ 1 %	≤ 1 %	≤ 1 %	≤ 1 %
Transverse Sensitivity	< 5 %	< 5 %	< 5 %	< 5 %	< 5 %
Electrical Parameters
Power Supply	18 ～ 30 VDC	18 ～ 30 VDC	18 ～ 30 VDC	18 ～ 30 VDC	18 ～ 30 VDC
Supply Current	2 ～ 20 mA	2 ～ 20 mA	2 ～ 20 mA	2 ～ 20 mA	2 ～ 20 mA
Output Impedance	≤ 100 Ω	≤ 100 Ω	≤ 100 Ω	≤ 100 Ω	≤ 100 Ω
DC Bias Voltage	10 ± 2 VDC	10 ± 2 VDC	10 ± 2 VDC	10 ± 2 VDC	10 ± 2 VDC
Environmental Parameters
Maximum Shock Value	±5 000 g pk	±10 000 g pk	±5 000 g pk	±5 000 g pk	±5 000 g pk
Operating Temperature	-40 ～ 120 °C	-40 ～ 120 °C	-40 ～ 120 °C	-40 ～ 120 °C	-40 ～ 120 °C
Physical Parameters
Sensing Element	Piezoelectric Ceramic	Piezoelectric Ceramic	Piezoelectric Ceramic	Piezoelectric Ceramic	Piezoelectric Ceramic
Structural Form	Shear	Shear	Shear	Shear	Shear
Housing Material	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
Sealing Type	Laser Welding	Laser Welding	Laser Welding	Laser Welding	Laser Welding
Outline Dimension（Ref. Fig.）	10.2mm x 10.2mm x 10.2mm
Weight	4.3 g	4.3 g	4.6 g	4.6 g	4.8 g
Output Mode	Side 1/4-28 4-Pin Socket	Side 1/4-28 4-Pin Socket	Side 1/4-28 4-Pin Socket	Side 1/4-28 4-Pin Socket	Side 1/4-28 4-Pin Socket
Installation Method	Adhesive Bonding/ M3Threaded Hole	Adhesive Bonding/ M3Threaded Hole	Adhesive Bonding/ M3Threaded Hole	Adhesive Bonding/ M3Threaded Hole	Adhesive Bonding/ M3Threaded Hole
Accessories	• M 3Bolt • Insulation Bonding Washer
