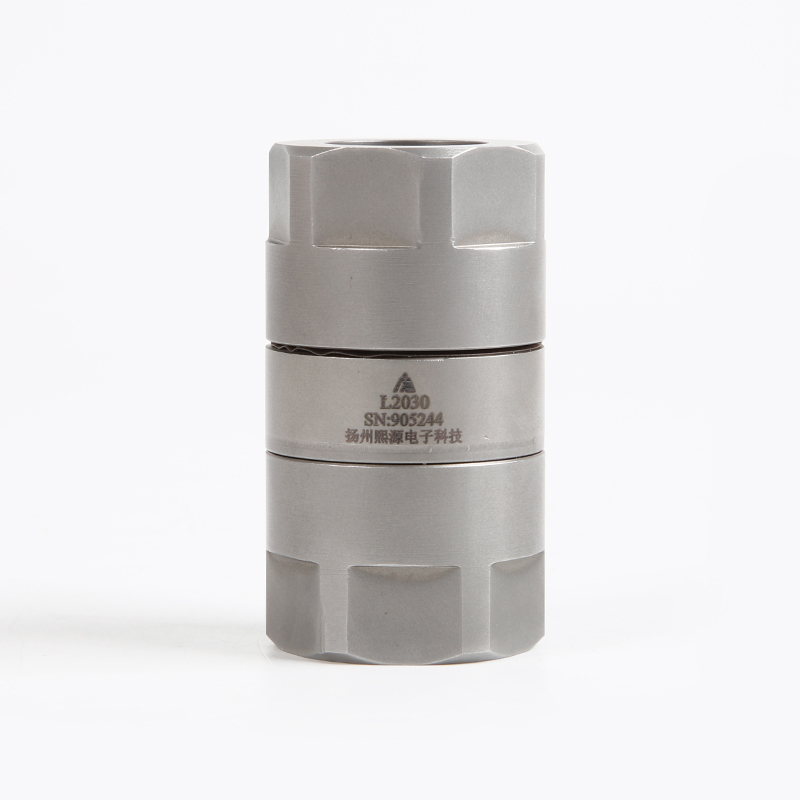

Bidirectional Force Sensor

  • L2030

Availability:
  • Dynamic measurement responds quickly

  • Static calibration takes a long time

  • Linear tension and compression sensitivity error is small



          Product


            Size








Typical static error curve (mean three times)








Static parameter


charge sensitivity(20±5℃)

~1.6pC/N

Tension and pressure sensitivity error

≤2%

range

±30kN

overload capacity

120 %

linearity

≤1%F·S

Hysteresis

≤1%F·S

repeatability

≤1%F·S

Capacitance

~28PF

Insulation resistance

>1013Ω

Dynamic Properties


resonant frequency

>30kHz

Operation Temp Range

-54~+121 ℃

Physics Properties

Weight

~190g

Shell Material

High strength stainless steel

Install

2-M16

sensitive material

quartz

Output Mode

Side L5

Accessory


Connecting Cable

double end L5 low noise cable x2m
