VC-04
Xiyuan
Availability: | |
---|---|
High Frequency Accelerometer Calibration Portable Shaker Vibration Calibrator
This product is not damaged by human error. The warranty period is 12 months and it will be maintained for life!

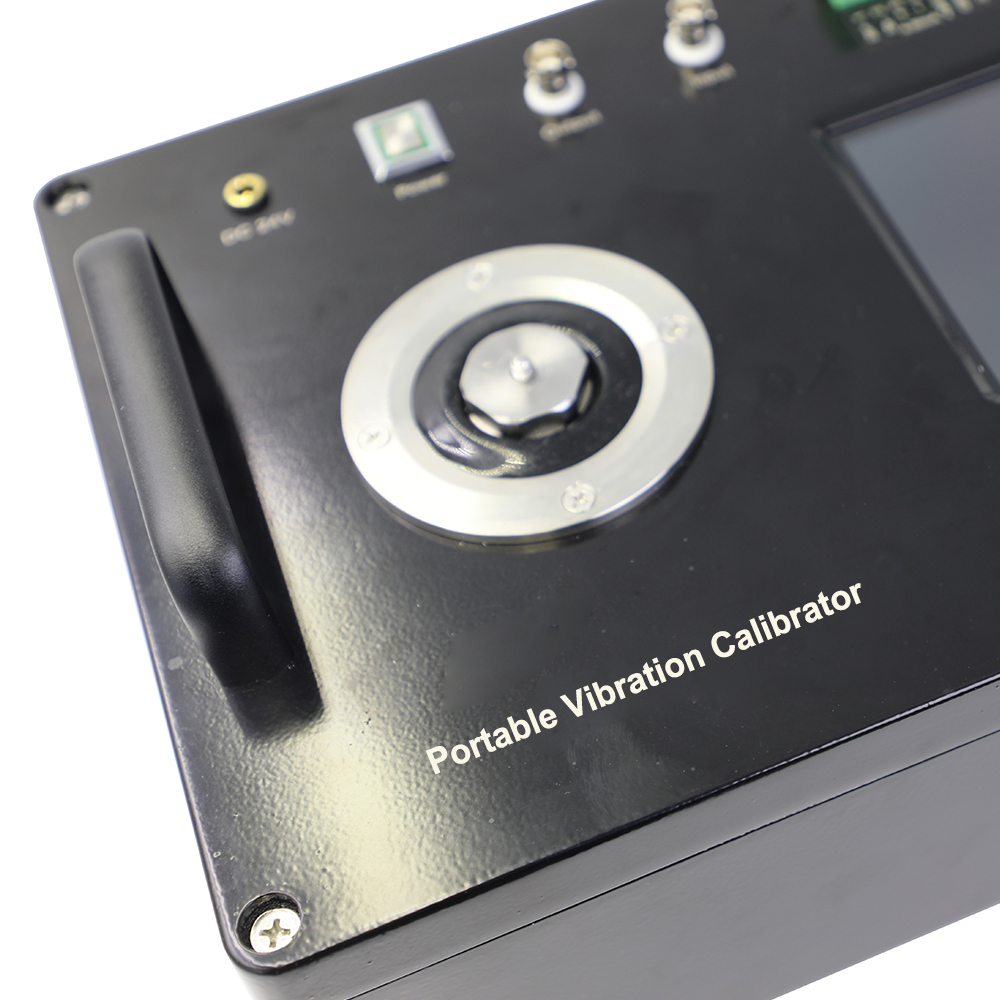

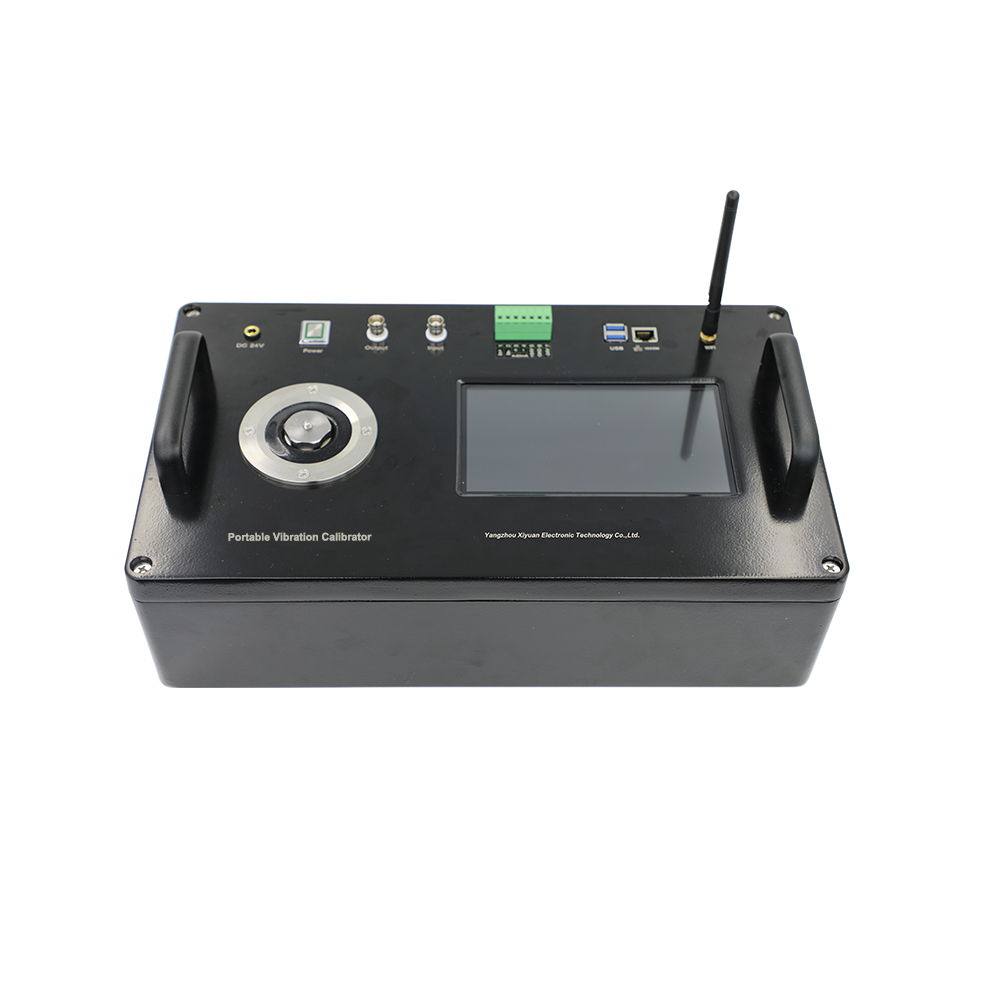

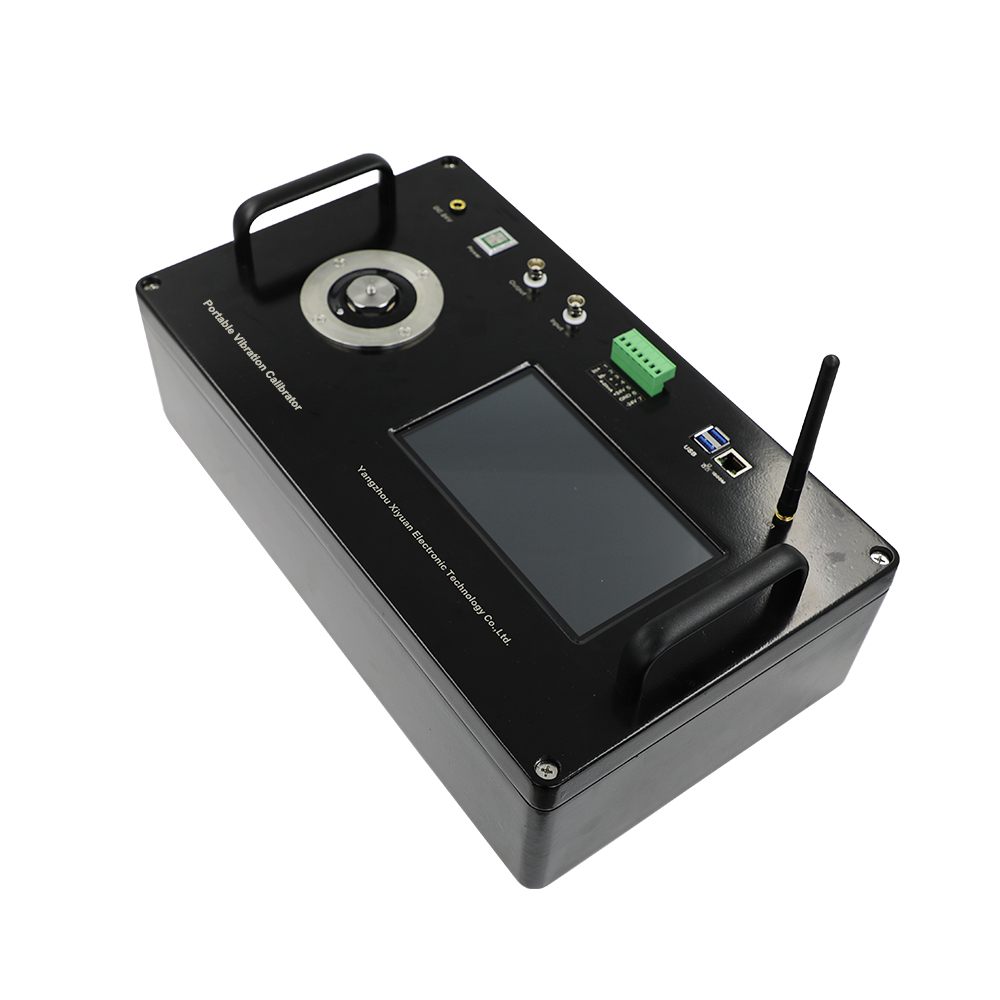

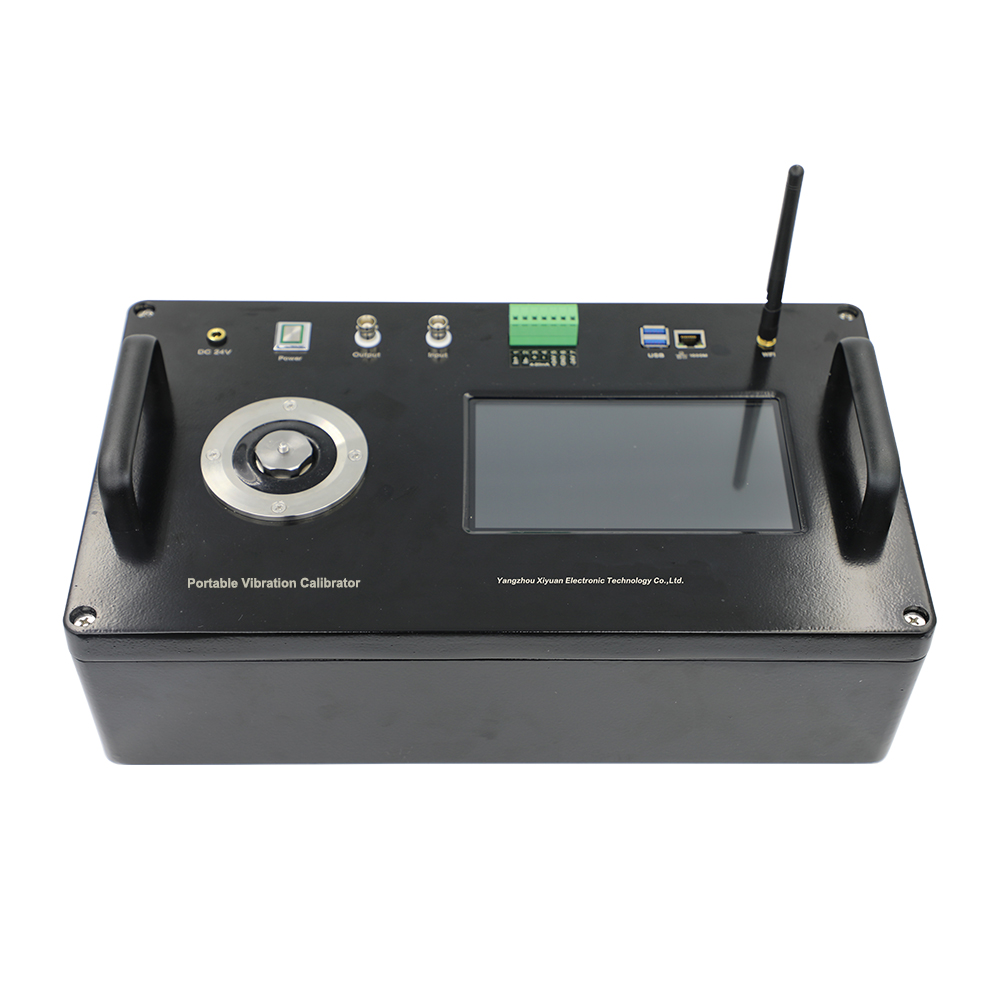

The portable vibration calibrator is composed of a signal generator, power amplifier, exciter, standard sensor, sensor signal conditioning and sampling circuit, high-performance control processor, and high-resolution touch display screen.
This instrument has the features of small size, light weight, adjustable vibration frequency and amplitude, high measurement accuracy, and convenient use. It can calibrate various acceleration, velocity, and displacement sensors without the need for other instruments and equipment. It can test the sensitivity and frequency response characteristics of the sensors. It can be applied to laboratory and field sensor calibration.
Vibration frequency | 10Hz -10KHz Can be adjusted |
Vibration amplitude | 0 - 100.00 m/s2 Can be adjusted |
Maximum excitation force | 50N±10% |
Type of the measured sensor | Charge output type sensor |
IEPE voltage output type sensor | |
Voltage output type sensor | |
4-20mA sensor | |
Precision | Acceleration (10Hz - 10KHz): ≤ 3% |
Vibration (20Hz - 1000Hz): ≤ 3% | |
Displacement (20Hz - 200Hz): ≤ 3% | |
Amplitude linearity | ≤1% |
Vibration frequency accuracy | ≤0.1% |
Distortion degree | ≤3%(20Hz -10KHz) |
Overall dimensions (mm) | 400W×230D×110H |
Weight (kg) | About 9 Kg |
Sensor mounting thread | M5 |
Power supply method | DC 24V/3.75A, equipped with AC 220V power adapter |
