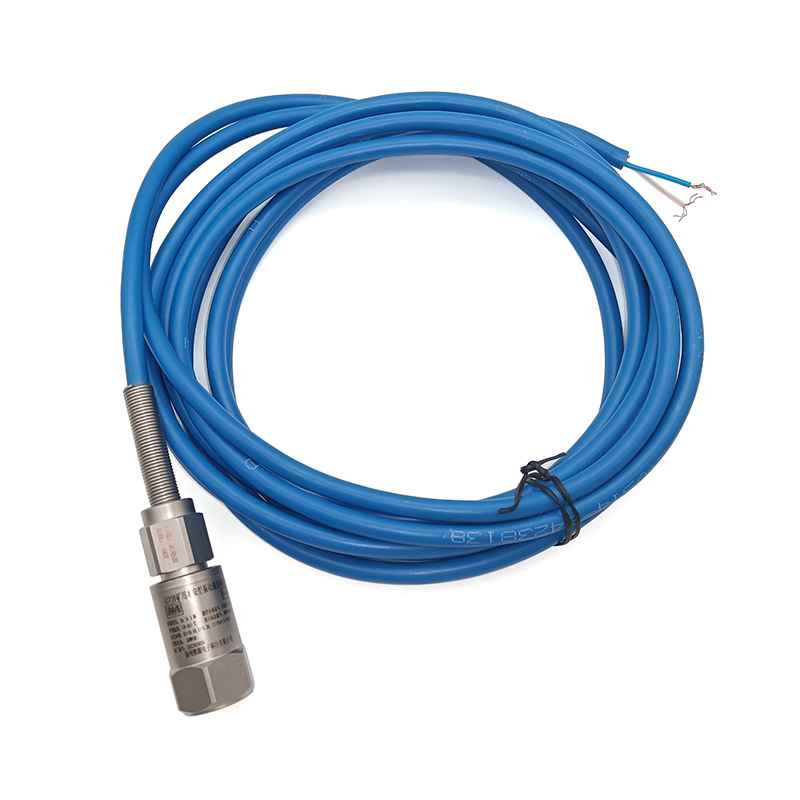

High Sensitive 4~20mA Analog Output Mine Intrinsically Safe Digital Current Transducer Vibration Sensor

Rang(RMS):0~20mm/sec
Output:4~20mA (RMS)
Amplitude Non-linearity:<2%
Frequency Response:10~1,000Hz(±1dB)
Transverse Sensitivity Ratio:≤5%
Supply Voltage:15VDC~30VDC
Install Ground Insulation:≥10^8Ω
Operation Temp:-40℃~+85℃
Shock Resistance(peak):2000 g
Temperature Response:Attached Temperature Curve
Explosion-proof:EX ib I Mb
CSA NERLIC No.:MFB210459
The Ann parameters:Ui=18.5VDC,Ii=1.3A, Ci=10nF,Li=0uH。
Structural Style:Shear/PZT-5
Shell Material:304 Stainless Steel
Output Mode:Integral line
Installation:1/4-28
Protection Class:IP67
Weight:~80g
Price:$518-622/piece
  • GSY20

  • Xiyuan

Availability:

High Sensitive 4~20mA  Analog Output Mine Intrinsically Safe Digital Current Transducer Vibration Sensor

图层 1

Measurement range (RMS) 0~20mm/sec
Output 4~20mA
Amplitude nonlinearity <2%
Frequency response 10~1,000Hz (+1dB)
Transverse sensitivity <5%
Supply voltage 15VDC~30VDC
Install insulation to ground >108Ω
Working temperature -40°C~+85℃
lmpact limit (peak) 2000g
Structural form and piezoelectric materials Shear/ PZT-5
Shell material 304 Stainless steel
Electrical connector Integral line
Installation method 1/4-28
Protection level IP67
Weight ~80g
ACCESSORIES
Install bolts 1/4-28
Connecting cables MIL-C-5015 2-pin connecting cable (3 m)
