AJ181C20T01
Xiyuan

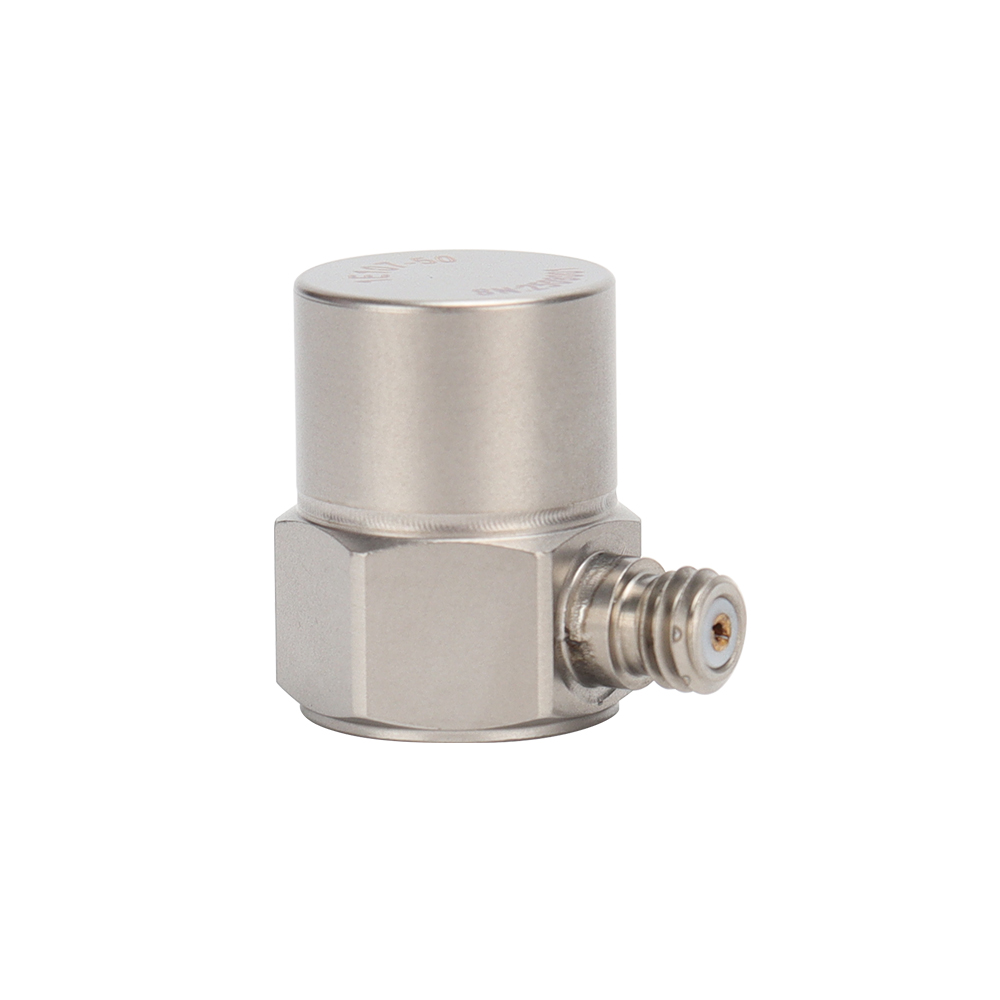

High-Temp Piezoelectric Accelerometer Sensor 260°C, 20 PC/g, ±500 g Range, Titanium Alloy Housing
| Features | Unit | AJ181C20T01 | AJ181C50T01 | AJ181D20T02 | AJ181D50T02 |
| Dynamic Characteristics | |||||
| Measuring range (peak) | g | ±500 | ±1000 | ±500 | ±500 |
| Sensitivity ± 20 % | pC/g | 20 | 50 | 20 | 50 |
| Frequency Range ± 5 % | KHz | ～5 | ～5 | 1～ 5 | 2 ~ 5 |
| Frequency Range ± 10% | KHz | ～7 | ～7 | 1 ～ 8 | 1 ～ 7 |
| Mounting resonance frequency | KHz | ≥20 | ≥23 | ≥27 | ≥23 |
| Amplitude Linearity | ≤ 1 % | ≤ 1 % | ≤ 1 % | ≤ 1 % | |
| Transverse Sensitivity | < 5 % | < 5 % | < 5 % | < 5 % | |
| Electrical Parameters | |||||
| Capacitance | pF | 1680 | 1550 | 1500 | 1600 |
| Insulation Resistance（260 °C） | M Ω | ≥100 | ≥100 | ≥100 | ≥10 |
| Insulation Resistance（23 °C） | M Ω | ≥10 000 | ≥10 000 | ≥10 000 | ≥10 000 |
| Environmental Parameters | |||||
| Maximum Shock Value | g (peak) | ±3 000 | ±3 000 | ±2 000 | ±3 000 |
| Operating Temperature | °C | -50～260 | -50～260 | -50～260 | -50～260 |
| Sensing Element | Piezoelectric Ceramic | Piezoelectric Ceramic | Piezoelectric Ceramic | Piezoelectric Ceramic | |
| Housing Material | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | |
| Outline Dimension | mm | φ 16.8 x 23 | φ 16.8 x 23 | φ17.9 x 27.9 | φ17.9 x 27.9 |
