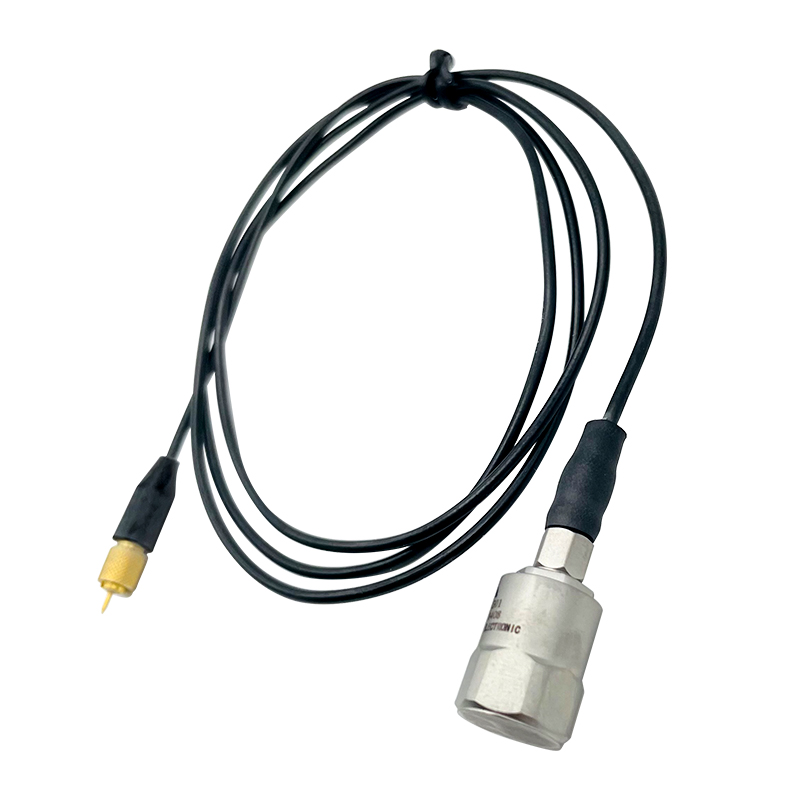

Industrial Sensor High Precision Wired Vibration Acceleration Industrial Impact Shock Sensor Accelerometer

Dynamic Properties
Range(peak):±10,000g
Sensitivity(25℃):0.5mV/g (160Hz)
Frequency Response(±1dB):1-10,000Hz
Transverse Sensitivity Ratio:≤5%
Electrical Properties
Driving Voltage:18VDC-28VDC (current source)
Constant current source excitation(mA):2-10mA
Output Impedance:<100 Ω
Full range output (peak):±5V
Noise:<50μV
Bias voltage:+9-+13V
Install Ground Insulation:≥10^9
Environment Properties
Operation Temp:-20℃~+80℃
Temperature Response:Attached Temperature Curve
Physics Properties
Structural Style:Cutting
Shell Material:High strength stainless steel
Output Mode:Top M5/The whole line

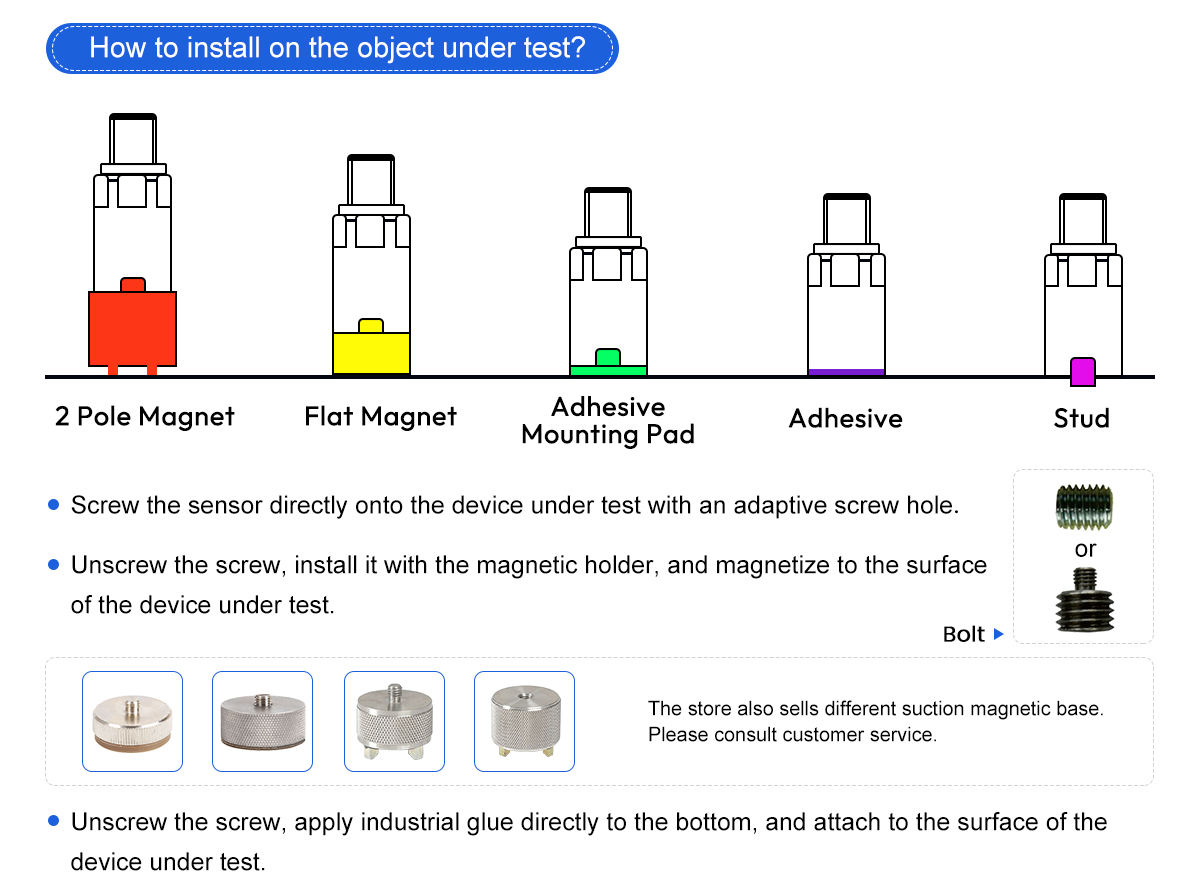

Installation:M5
Piezoelectric Materials:Ceramic shear
Weight:~10g
Accessory
Erection Bolt:M5

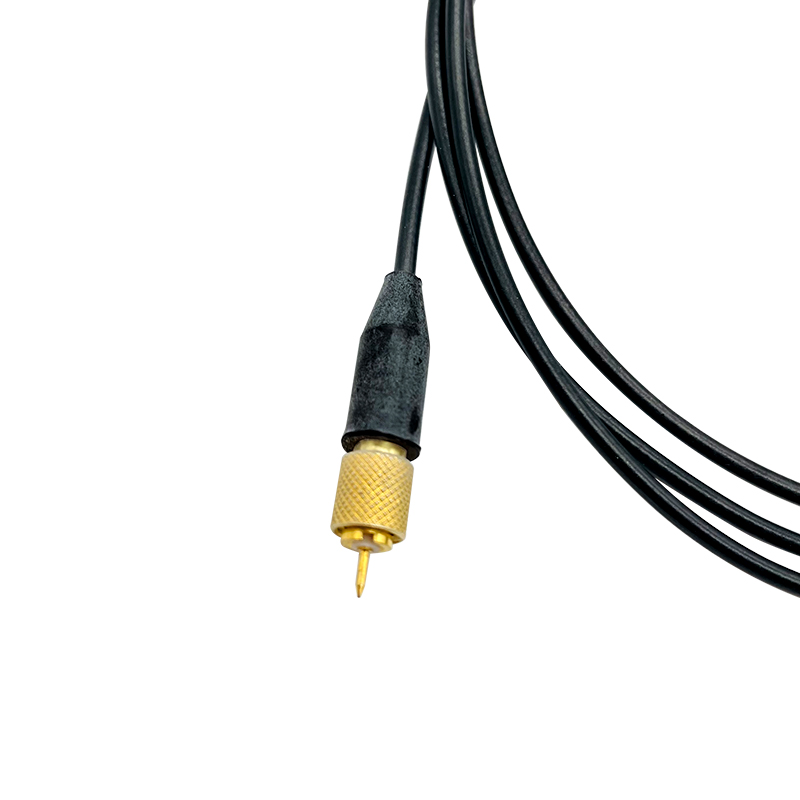

Cable:Double end M5 low noise shielded cable x 2m
Price:$346-417/piece
  • A22G01

  • Xiyuan

Availability:

Industrial Sensor High Precision Wired Vibration Acceleration Industrial Impact Shock Sensor Accelerometer

This series of shock acceleration sensors are characterized by light weight, high stiffness, fast response and wide frequency response, and are suitable for applications related to shock, collision and explosion tests.

3

Characterization Unit A22G01 A22G02
Measurement Range g ±10000 ±20000
Sensitivity  mV/g 0.5 0.25
Frequency response (±1dB) Hz 1-1,0000 1-1,0000
Resonant Frequency KHz 40 40
Temperature Range -40~+70 40~+70
Structure and piezo matenial


Shear/PZT-5 Shear/PZT-5
Installation of insulation to ground Ω ≥109 ≥109
Outline dimension mm φ13*23 φ13*23
Housing material
High strength stainless steel High strength stainless steel
Electrical connector
Global line/M5 Global line/M5
Mounting method
M5 M5
Weight g 10 10
Mounting Thread
M5 M5
Cable
Integral low noise shielded cable 1 meter Integral low noise shielded cable 1 meter
