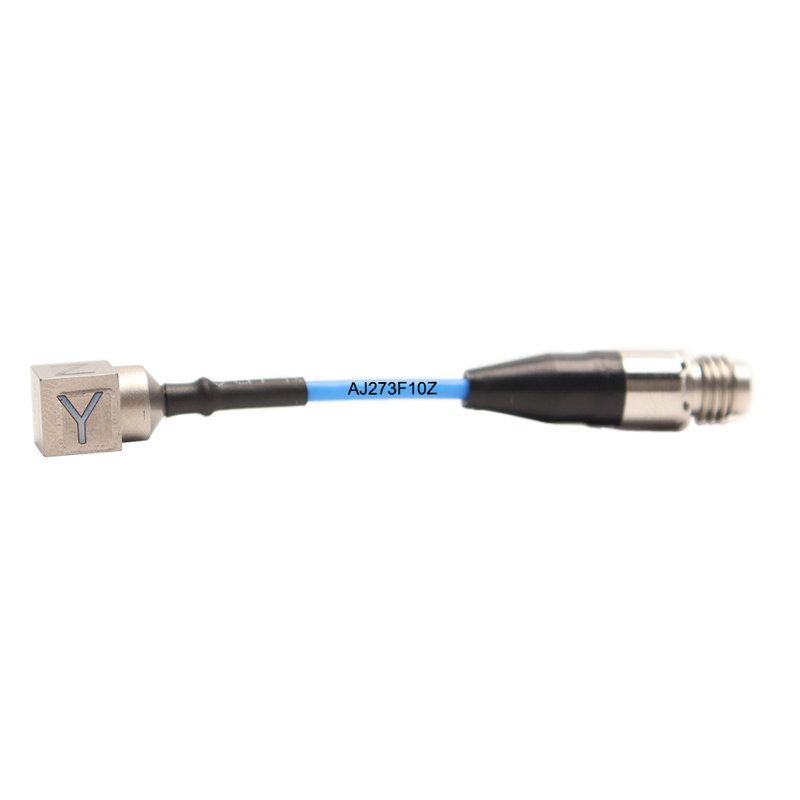

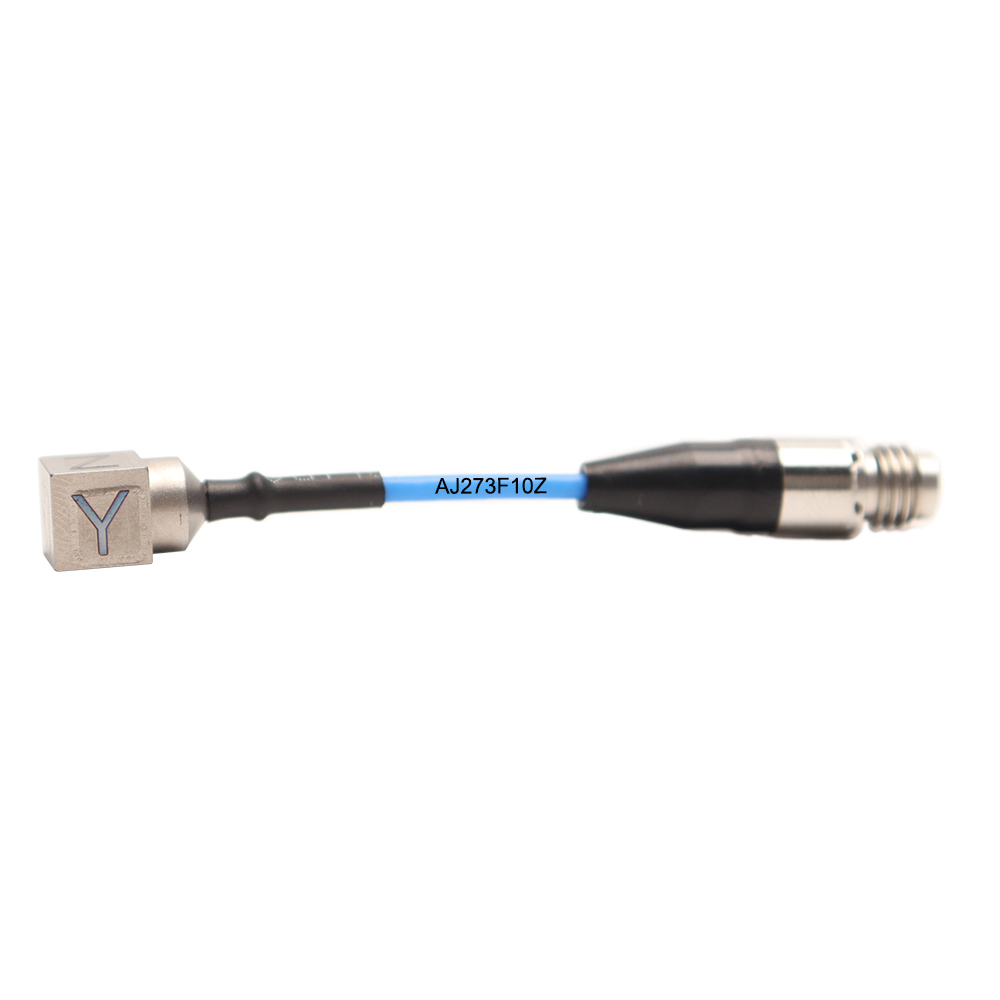

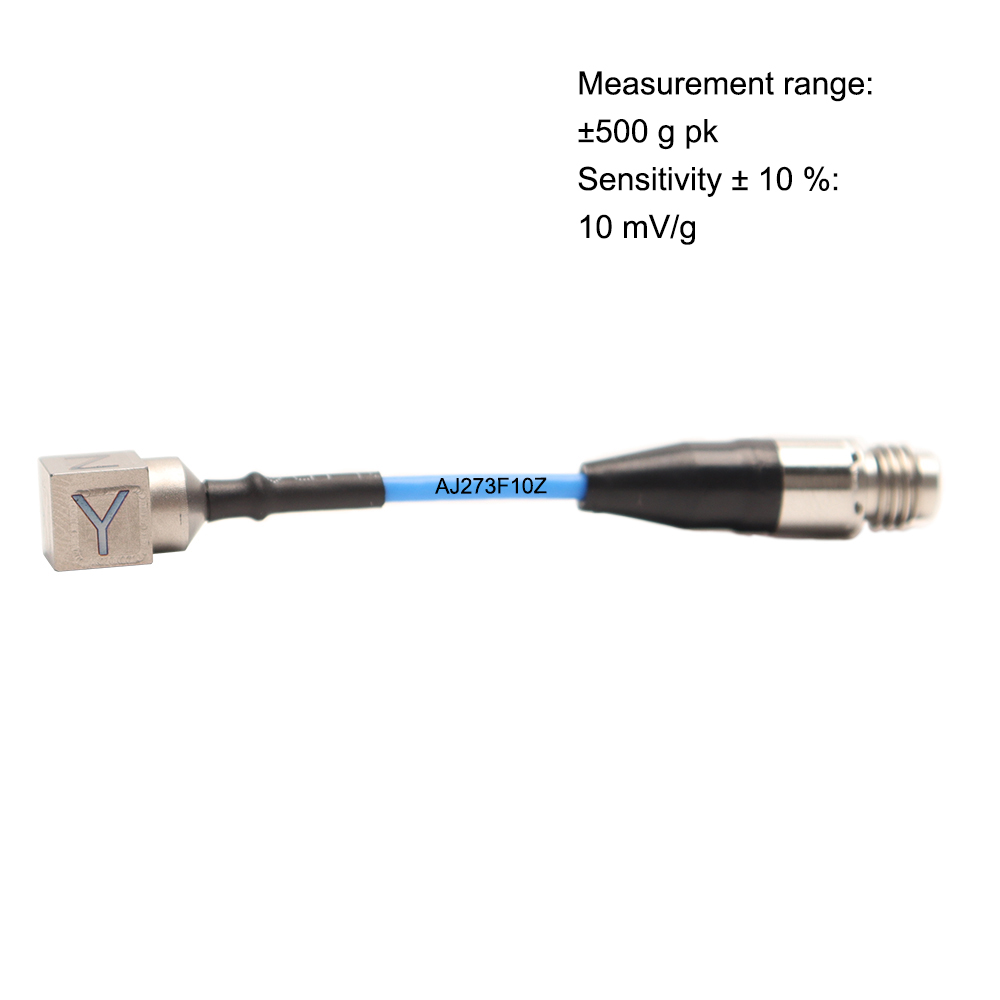

Integrated Cable Triaxial Sensor AJ273F, 10 MV/g Sensitivity, Ideal for Robotic Jump Applications

Can completely replace PCB

Brand:Piezoelectric Vibration Acceleration Sensor
Voltage - Supply:18 ~ 30 VDC
Output Type:Side Integrated Cable to 1/4-28 4-Pin Socket
Features:Small and lightweight
Frequency:2 ~6 kHz
Output Configuration:Side Integrated Cable to 1/4-28 4-Pin Socket
Current:2 ~ 20 mA
Size / Dimension:6.8mm x 6.8mm x 6.8mm
Measuring Range:±500 g peak
Sensitivity (mV/g):10mV/g
Resistance:<100 Ω
Flow Sensor Type:Piezoelectric Accelerometer Sensor
Transverse Sensitivity Ratio:≤5%
Bias voltage:10 ± 2 VDC
Shock Resistance(peak):±30000 g
Structural Style:Shear
Piezoelectric Materials:Piezoelectric Ceramic
Weight:1.3g
Mounting Type:Side Integrated Cable to 1/4-28 4-Pin Socket
Broadband Resolution:0.002g rms
Operating Temperature:-40 ~ 120 °C

Model:
AJ273F10Z
Brand:
Xiyuan

Availability:



Inquire Add to Basket

Integrated Cable Triaxial Sensor AJ273F, 10 MV/g Sensitivity, Ideal for Robotic Jump Applications

Can completely replace PCB

Features	Unit	AJ273F05Z	AJ273F10Z
Measuring range (peak)	g	±1000	±500
Sensitivity ± 10 %	mV/g	5	10
Frequency Range ± 5 %	KHz	2～ 6	2～ 6
Frequency Range ± 10%	KHz	1.2 ～ 8	1.2 ～ 8
Mounting resonance frequency	KHz	≥40	≥40
Broadband Resolution	g rms	0.004	0.002
Amplitude Linearity		≤ 1 %	≤ 1 %
Transverse Sensitivity		< 5 %	< 5 %
Power Supply	VDC	18 ～ 30	18 ～ 30
Supply Current	mA	2 ～ 20	2 ～ 20
Output Impedance	Ω	≤ 100	≤ 100
Maximum Shock Value	g (peak)	±30000	±30000
Operating Temperature	°C	-40 ～ 120	-40 ～ 120
Sensing Element		Piezoelectric Ceramic	Piezoelectric Ceramic
Housing Material		Titanium Alloy	Titanium Alloy
Outline Dimension（Ref. Fig.）	mm	6.86.86.8
Weight	g	1.3(Without Cable)	1.3(Without Cable)
