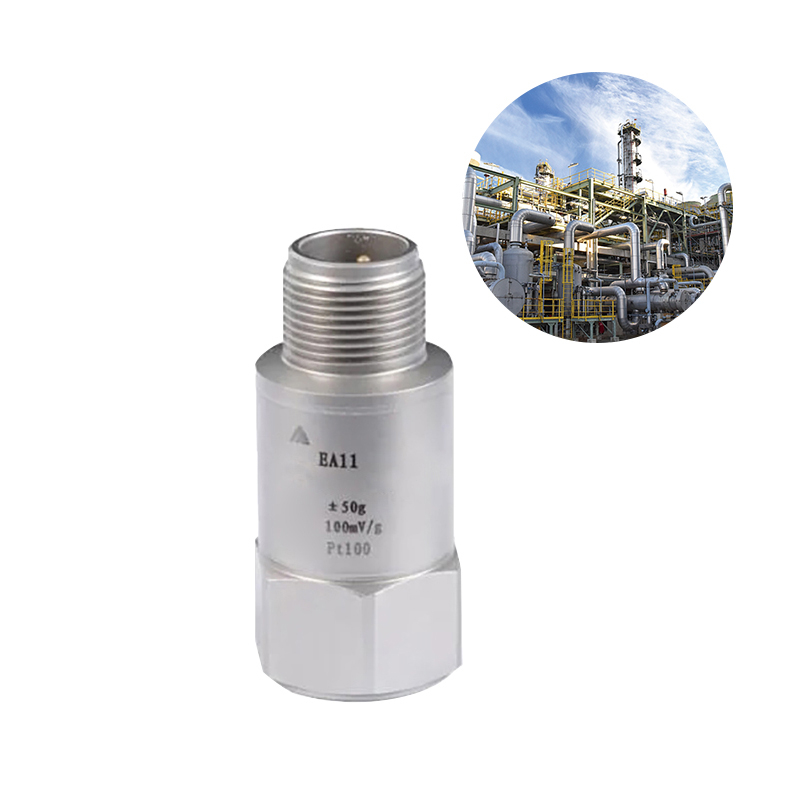

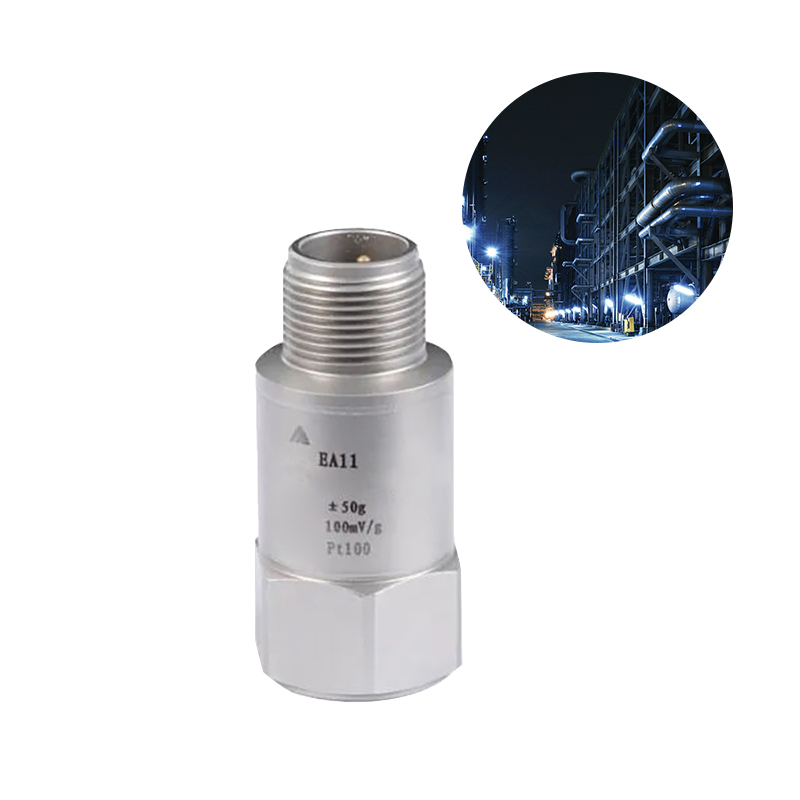

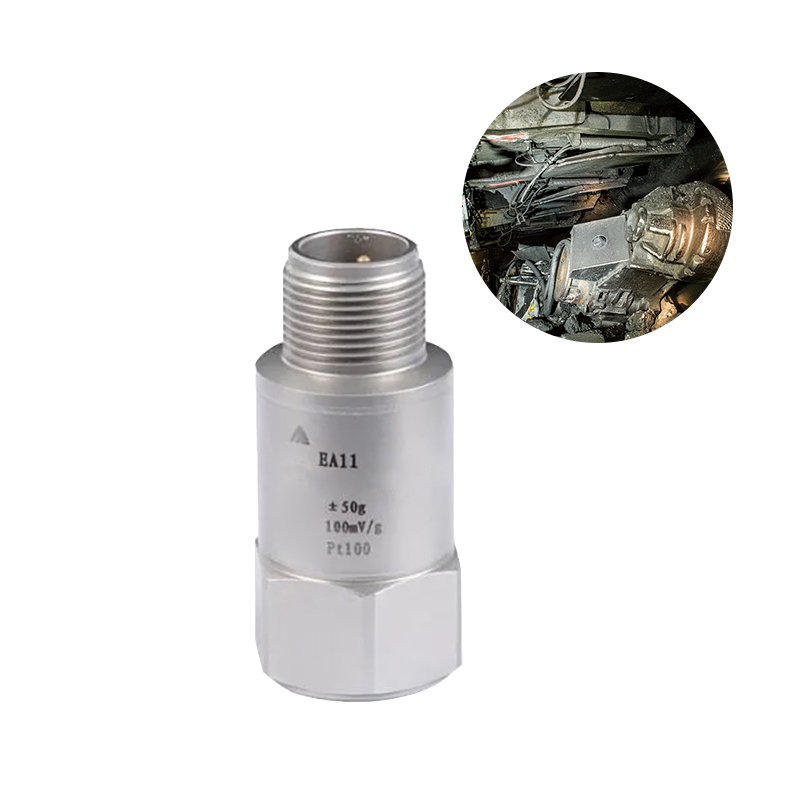

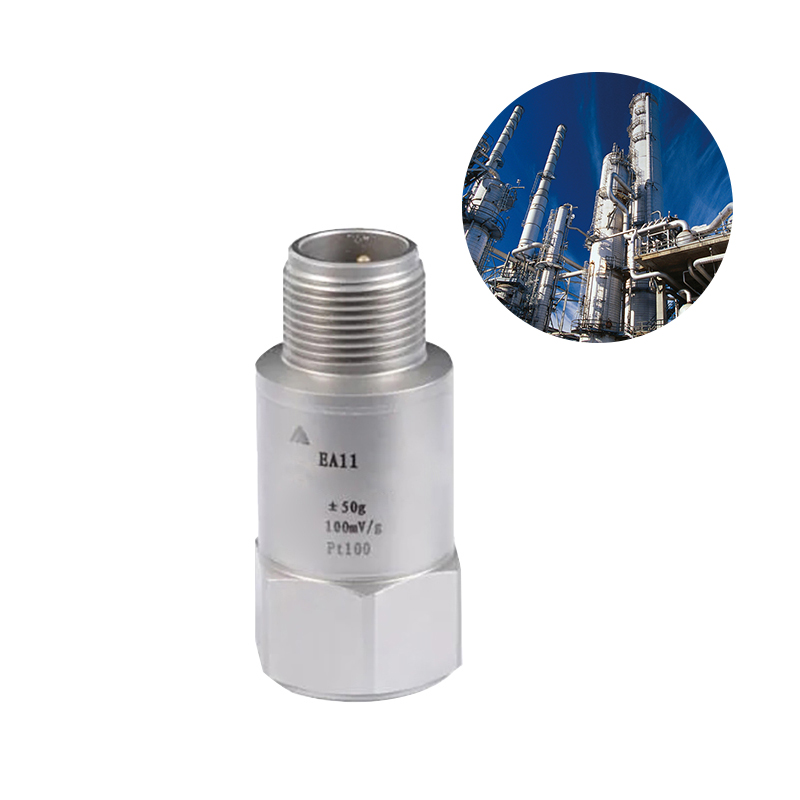

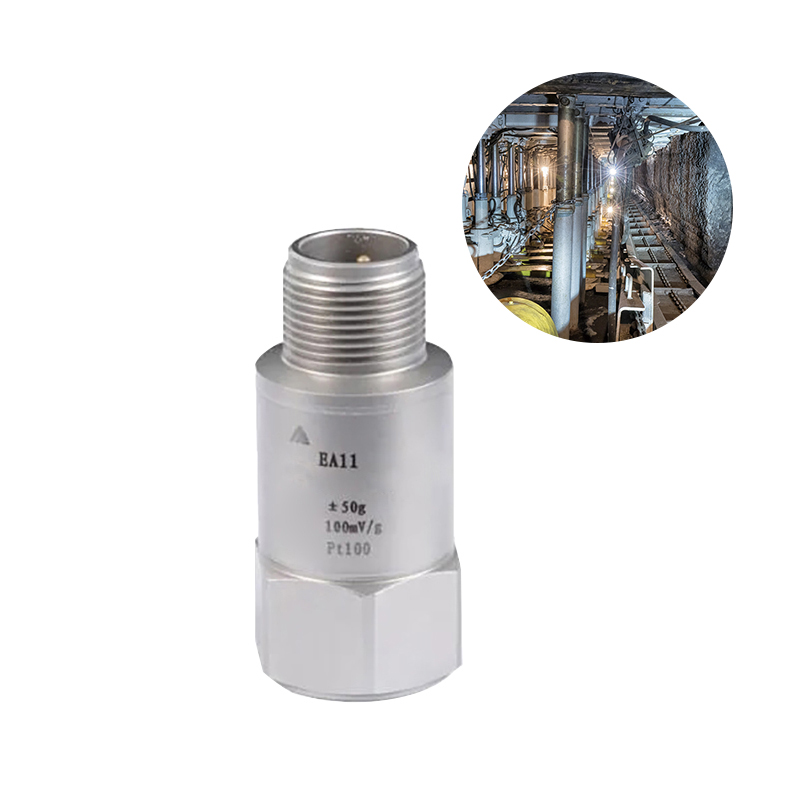

Intrinsically Safe Piezoelectric Acceleration And Temperature Sensor Complex Accelerometer

Voltage - Supply :18-24VDC (current source)
Output Type :Voltage type
Features :Intrinsically Safe
Frequency :0.5-15000Hz(±3dB)
Output Configuration :5/8-24 two-core(Accelerated)
Current :2-10mA(typical value:4mA)
Humidity Range :RH:≤80%RH
Measuring Range :Accelerated:±10g,±50g; Temp:-40- +85℃(Pt100)
Acceleration Range :±10g,±50g
Sensitivity (mV/g) :100mV/g,500mV/g choosabele
The temperature signal :Pt100 A level(±0.15%)
Normal working environment :No strong magnetic field, no corrosive vapor liquid, etc
Ex-mark :Ex ia IIC T6 Ga
The Ann parameters :Ui= 28VDC,Ii=93mA, Pi=0.65W,Ci=0μF,Li=0mH
Protection Class :IP65
Line-to-ground insulation :>200MΩ
Dielectric strength :>500Vrms

Model:
EA11
Brand:
Xiyuan

Availability:



Inquire Add to Basket

Intrinsically Safe Piezoelectric Acceleration And Temperature Sensor Complex Accelerometer

Characteristic:

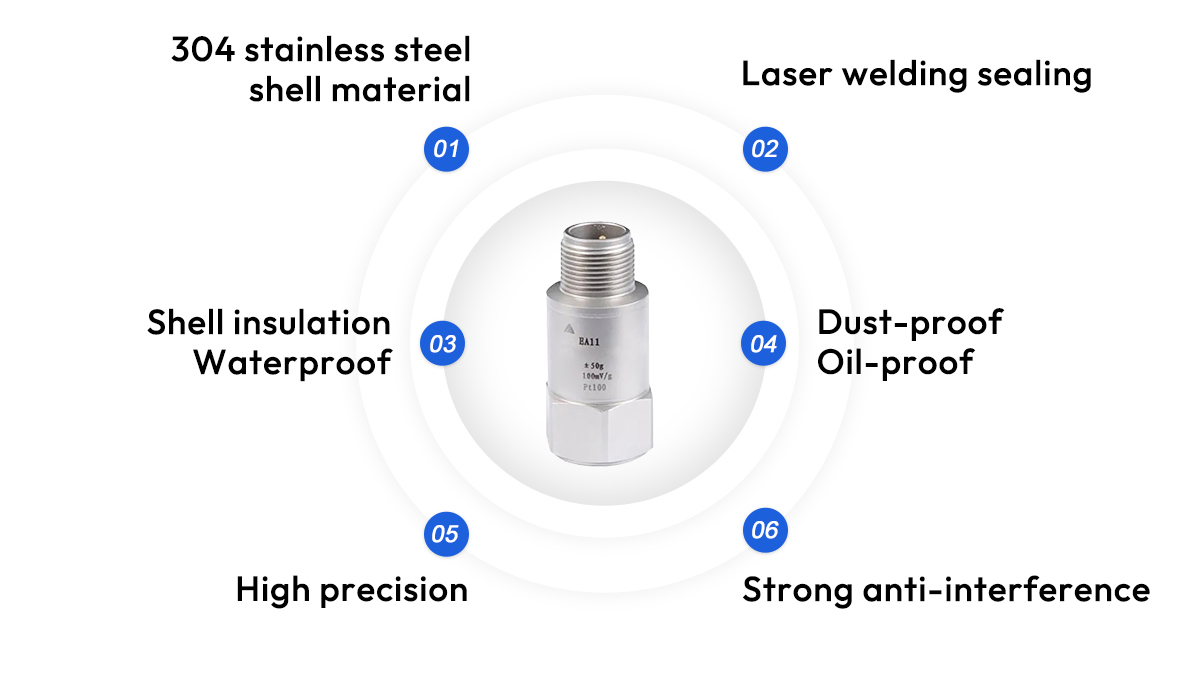

The series of industrial acceleration sensors are stainless steel shell, laser welding sealing, shell insulation, waterproof, dust-proof, oil-proof design, suitable for industrial sites in a variety of. It is suitable for long-term reliable and stable work in various harsh environments in industrial sites, and is widely used in fan condition monitoring, operation and maintenance of industrial sites, process monitoring and protection.

Advantages:

Built-in IEPE circuit, isolated floating, two-core low resistance voltage or 4-20mA output, strong anti-interference.

industrial sensor

ACCELERATION
Range	+10g，+50g Optional
Output of acceleratior	100mV/g，500mV/g Optional
Amplitude nonlinearity	土1%
Frequency response	1~9,000Hz(+1dB) 0.5-15,000Hz(+3dB)
Transverse sensitivity	≤5%
Supply voltage	18-24VDC(Constant current source)
Constant current source excitation	2-10mA (Typical value: 4mA)
Output impedance	＜100Ω
Dynamic range	±5V (Peak)
Bias voltage	+10V~+14V
Signal pair shielding	≥108Ω
Noise	＜50μV
Working temperature	-40°C~+85℃
Impact limit (peak)	2000g
Structural form and piezoelectric materials	Shear/ PZT-5
TEMPERATURE
Temperature range	-40~+120℃
Temperature signal	Pt100 A-level(+0.15%)
COMMON
Shell material	304Stainless steel
Protection level	IP65
Electrical connector	MlL-C-5015 2-pin (acceleration) or MlL-C-5015 4-pin/5-pin (acceleration+temperature)
Weight	~80g
ACCESSORIES
Install bolts	1/4-28 Adapter bolt
Connecting cables	MIL-C-5015 Connecting cable (3 m)
