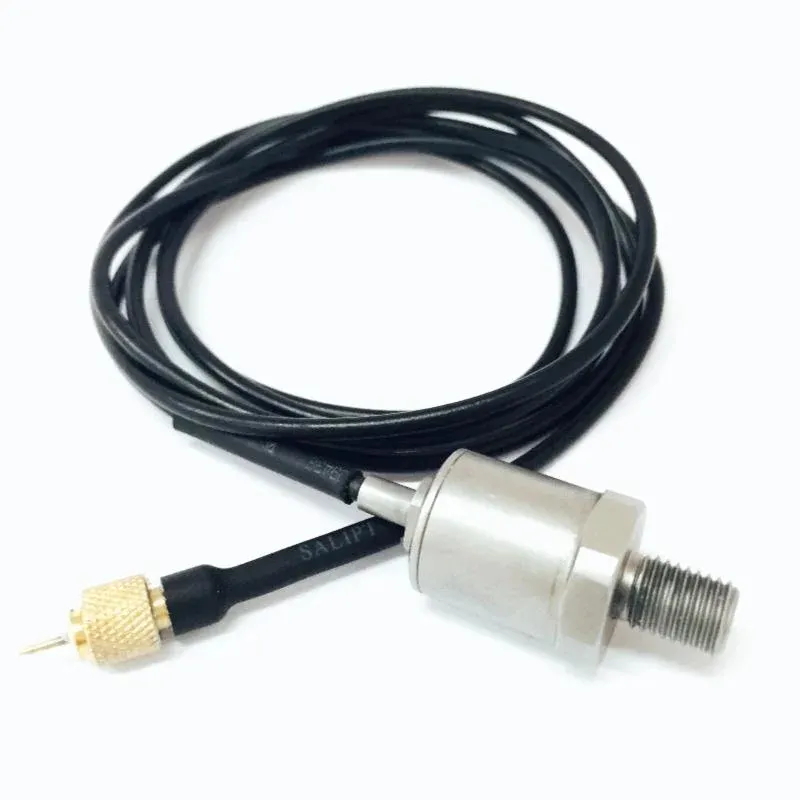

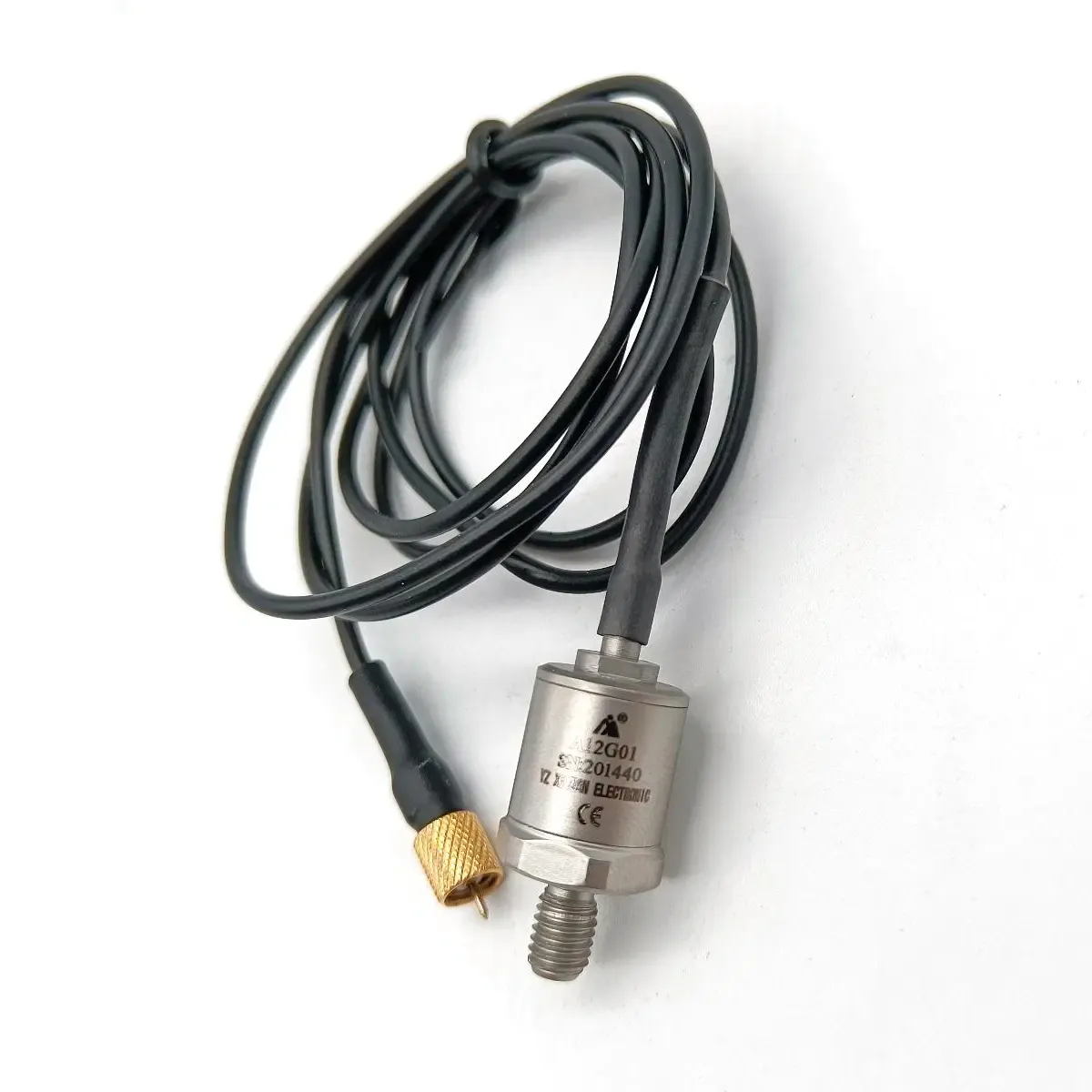

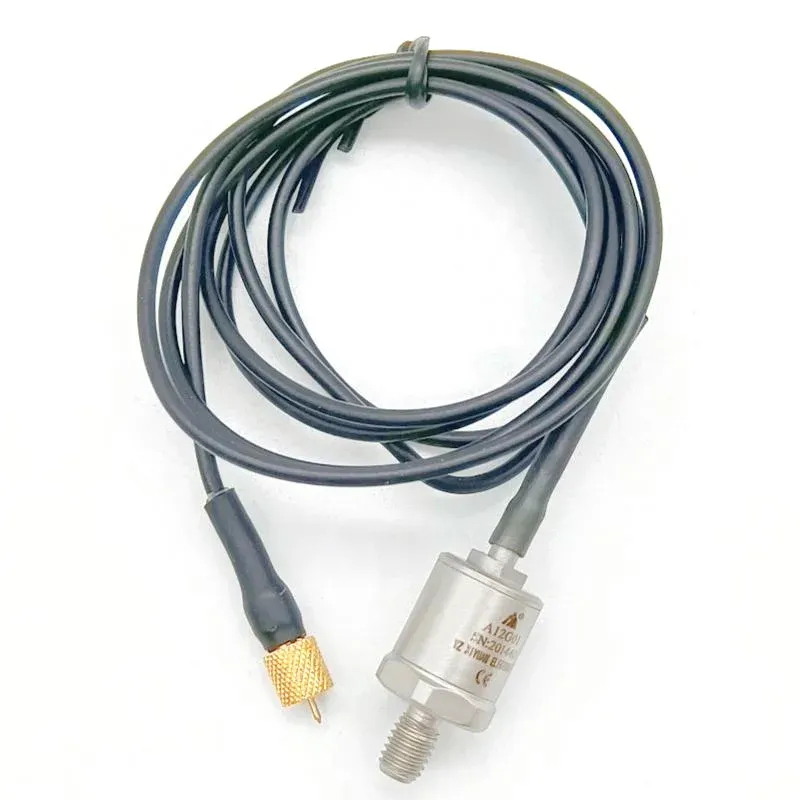

Large Impact Measurement Uniaxial Charge Type PE Accelerometer Impact Acceleration Sensor

Dynamic Properties

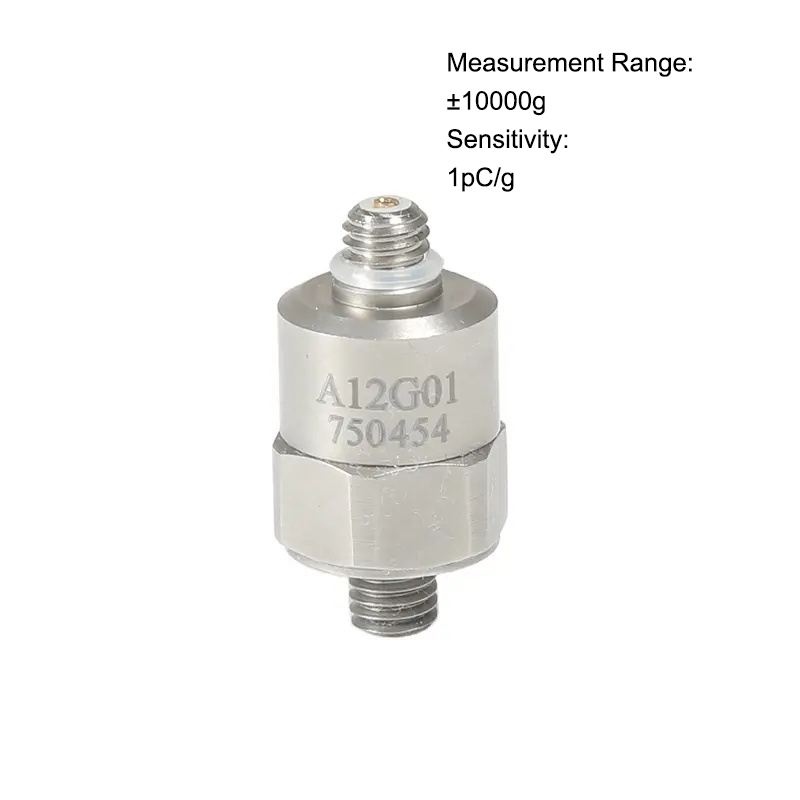

Range(peak):±10,000g
Sensitivity(25℃):1.0pC/g (160Hz)
Frequency Response（±1dB):1-10,000Hz
Transverse Sensitivity Ratio:≤5%
Electrical Properties
Insulation resistance:>10^9Ω
Capacitance:～800PF
Polarity:+
Environment Properties
Operation Temp:-20℃～+80℃
Temperature Response:Attached
Physics Properties
Structural Style:cutting
Shell Material:High strength stainless steel
Output Mode:Top M5/The whole line
Installation:M5
Piezoelectric Materials:Ceramic shear
Weight:～10g
Accessory
Cable:Double end M5 low noise shielded cablex2m
Install the screw:M5

Model:
A12G01
Brand:
Xiyuan

Availability:



Inquire Add to Basket

Large Impact Measurement Uniaxial Charge Type PE Accelerometer Impact Acceleration Sensor

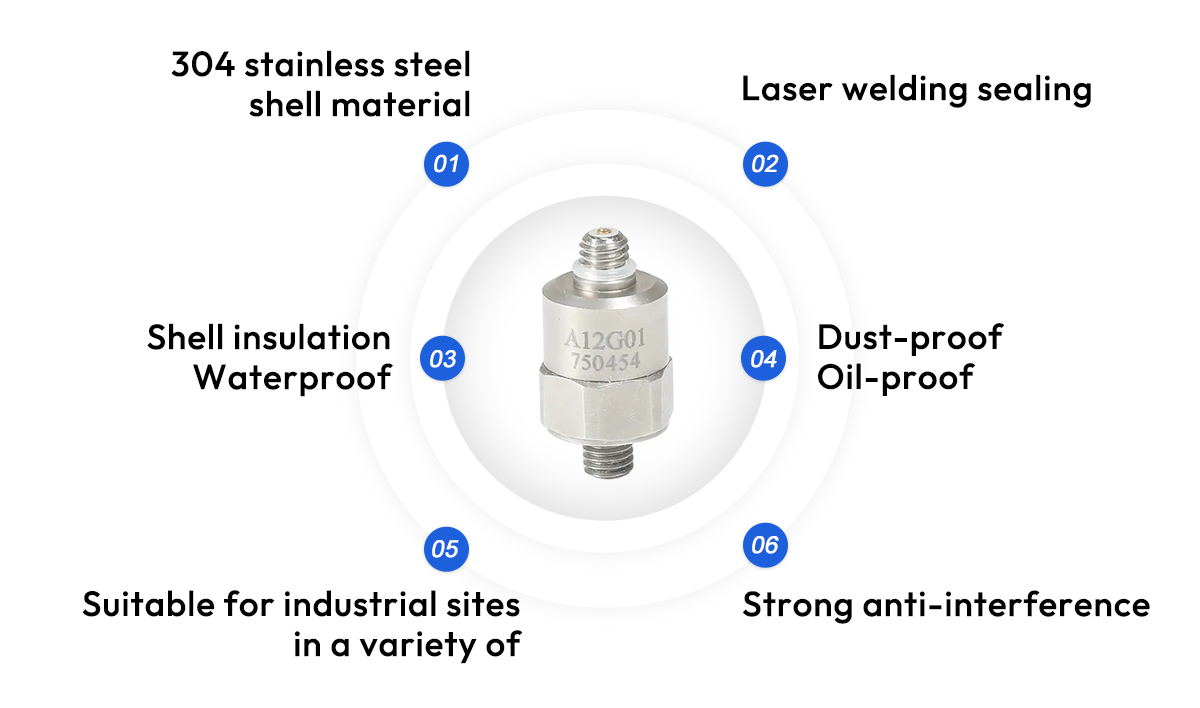

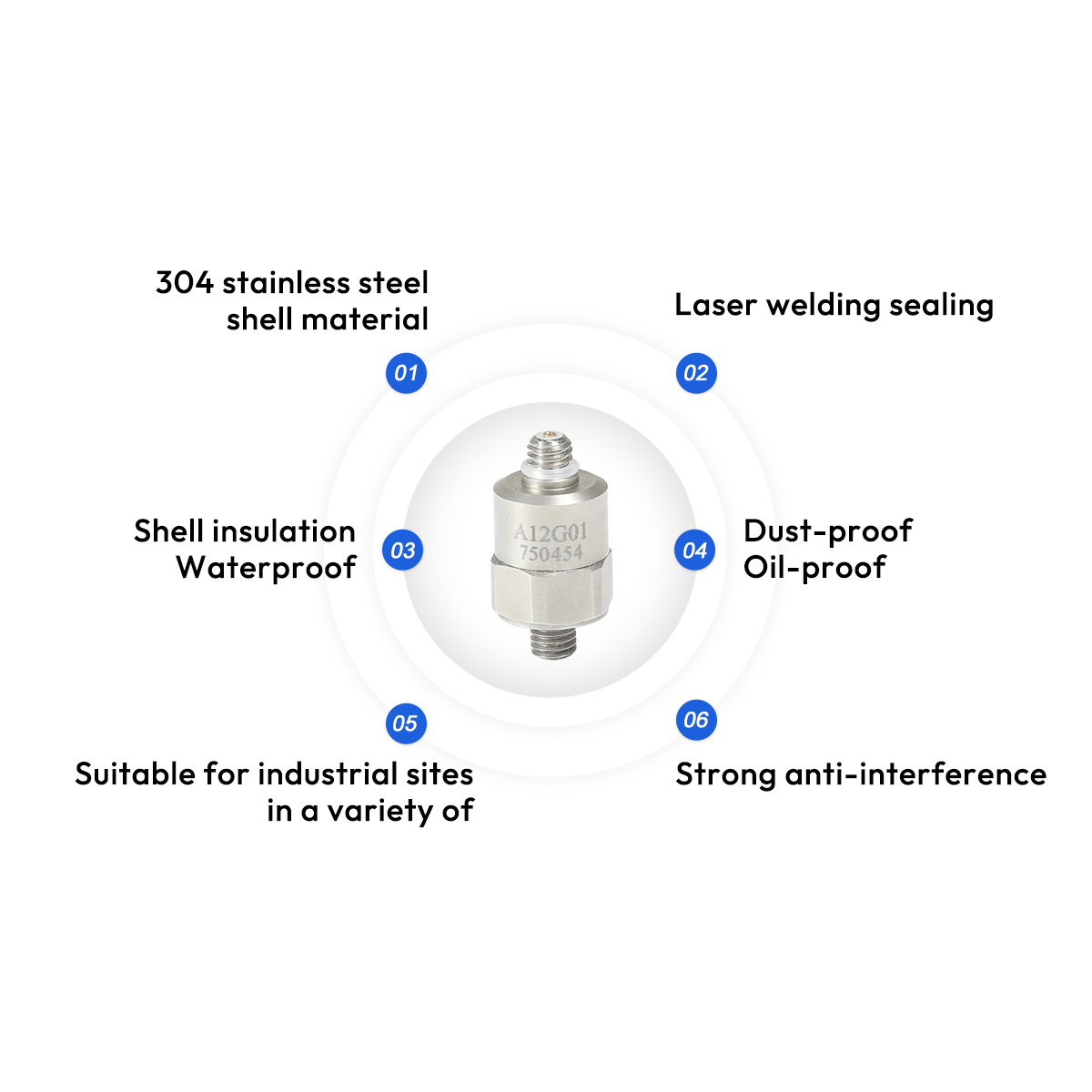

This series of impact acceleration sensors have the characteristics of light weight, high stiffness, fast response, and wide frequency response, making them suitable for applications related to impact, collision, and explosion tests.

acceleration sensor

Characterization	Unit	A12G01	A12G02
Measurement Range	g	±10000	±20000
Sensitivity	pC/g	1	1
Amplitude Linearity	%	±1	±1
Frequency response (±1dB）	Hz	1-1,0000	1-1,0000
Resonant Frequency	KHz	40	40
Temperature Range	℃	-40~+70	40~+70
Structure and piezo matenial		Shear/PZT-5	Shear/PZT-5
Installation of insulation to ground	Ω	≥10⁹	≥10⁹
Outline dimension	mm	φ13*23	φ13*23
Housing material		High strength stainless steel	High strength stainless steel
Electrical connector		Global line/M5	Global line/M5
Mounting method		M5	M5
Weight	g	10	10
Cable		Integral low noise shielded cable 1 meter	Integral low noise shielded cable 1 meter
