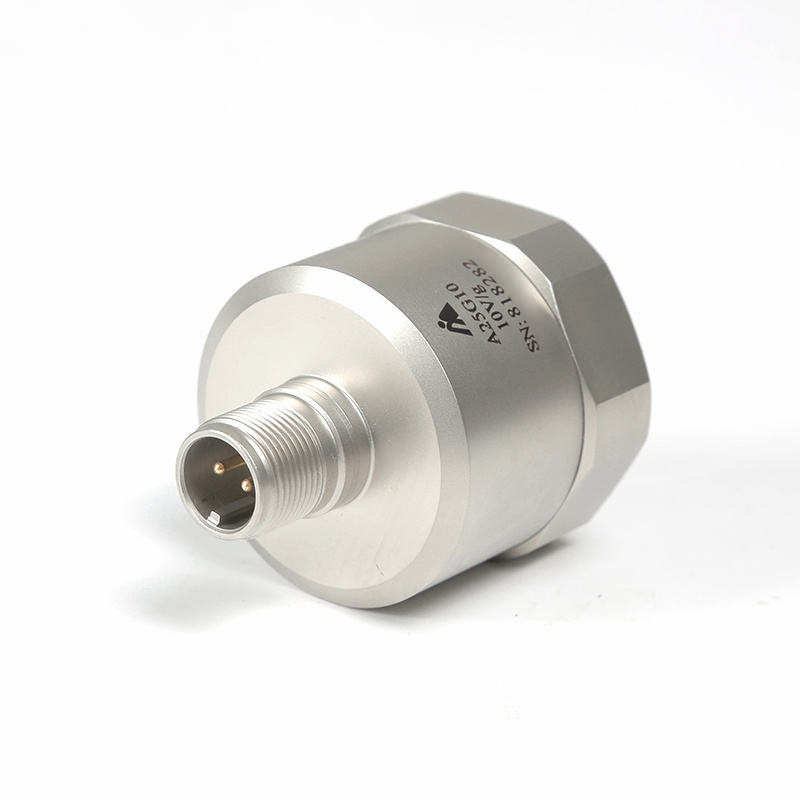

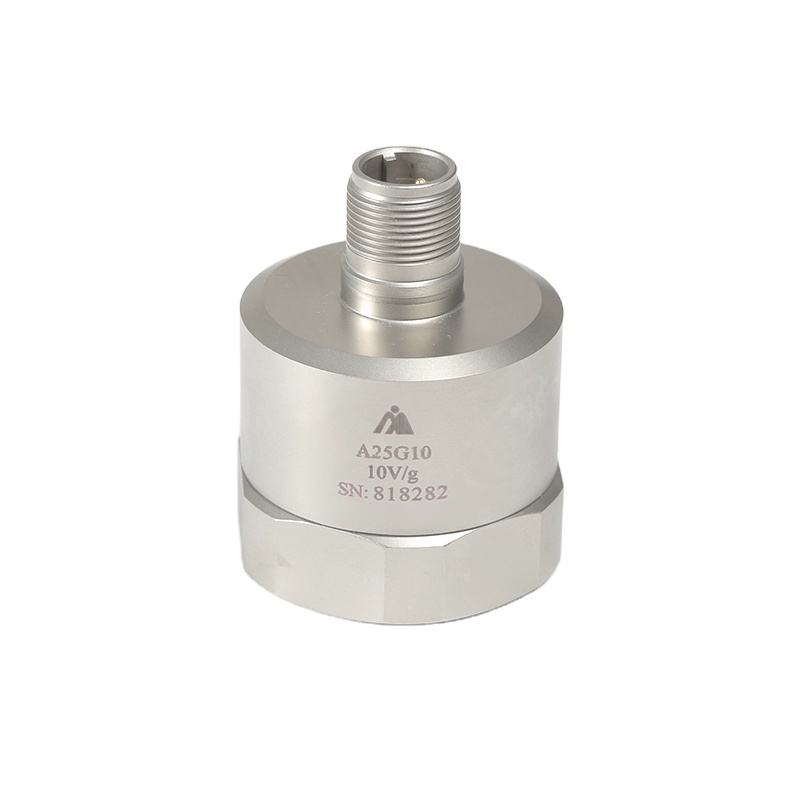

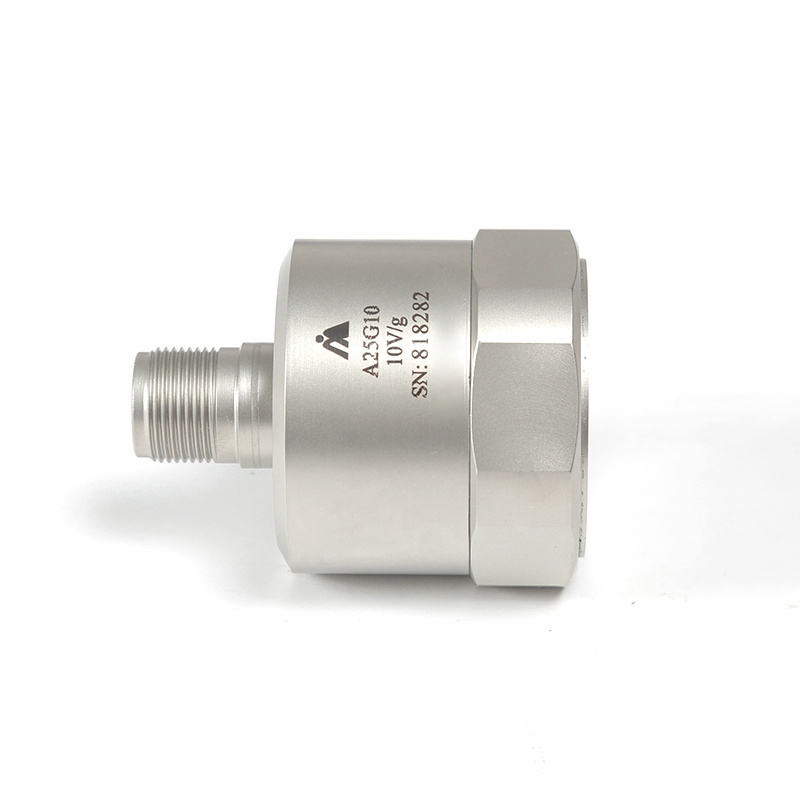

Low Frequency High Sensitivity Isolated Voltage Sensor A25G10 Piezoelectric Vibration Sensor Accelerometer
The A25G acceleration sensor has the advantages of high sensitivity, good low-frequency response, and low background noise. It is suitable for low-frequency vibration testing occasions such as building vibration monitoring, earthquake detection, dam and bridge structure testing, ground and foundation vibration monitoring, geological structure research, etc.
| Characterization | Unit | A25G01 | A25G05 | A25G10 |
| Measuring range (peak) | g | ±5 | ±1 | ±0.5 |
| Sensitivity (25°C) | V/g | 1 | 5 | 10 |
| Frequency response (1dB) | Hz | 0.2-5,000 | 0.2-1,000 | 0.1-1,000 |
| Frequency response (3dB) | Hz | 0.1~8,000 | 0.09~2,000 | 0.09~2,000 |
| Mounting resonance frequency | Hz | ≥10000 | ≥4500 | ≥4500 |
| Transverse sensitivity | ≤% | 5 | 5 | 5 |
| Excitation voltage | VDC(Constant current source) | 18-28 | 18-28 | 18-28 |
| Constant current source excitation(mA) | mA | 2~10 | 2~10 | 2~10 |
| Output impedance | Ω | <100 | <100 | <100 |
| Full scale output (peak) | V | ±5 | ±5 | ±5 |
| Noise (rms) | μV | <120 | <500 | <1000 |
| Bias voltage | V | +10~+14 | +10~+14 | +10~+14 |
| Mounting insulation to ground | Ω | >108 | >108 | >108 |
| Operating temperature | ℃ | -40~+120 | -40~+120 | -40~+120 |
| Shock limit (peak) | g | ±800 | ±500 | ±500 |
| Structure and piezo material | shear/PZT-5 | shear/PZT-5 | shear/PZT-5 | |
| Outline dimension | mm | φ28.5*37.5 | φ39*55.5 | φ39*55.5 |
| Housing material | 304 stainless steel | 304 stainless steel | 304 stainless steel | |
| Electrical connector | MIL-C-5015 2-Pin socket | MIL-C-5015 2-Pin socket | MIL-C-5015 2-Pin socket | |
| Mounting method | 1/4-28 | M6 | M6 | |
| Protection class | Ip65 | Ip65 | Ip65 | |
| Weight | g | ~125 | ~290 | ~330 |
| Mounting bolts | 1/4-28 to M6 | M6 | M6 | |
| Cable | DJ03-3M | DJ03-3M | DJ03-3M |
