Xiyuan
Machine Tool Collision Buffer System for CNC Mills/Lathes/5-Axis & Robots, 3ms Spindle Protection
| Dynamic input | Number of channels | 4 | |
| A/D bit number | 24 | ||
| Input method | Voltage/IEEE/4-20mA | ||
| Signal input bandwidth | Voltage/4-20mA | DC-50kHz | |
| IEPE | 0.3Hz-50kHz（-3dB） | ||
| Slow variable simulation input | Number of channels | 4 | |
| A/D bit number | 16 | ||
| Input method | Voltage/4-20mA | ||
| Signal Input Bandwidth | DC-100Hz | ||
| Features | Unit | ||
| Measuring range (peak) | g | ±50 | ±80 |
| Sensitivity (25°C) | mV/g | 100 | 100 |
| Frequency response (1dB) | Hz | 1-10,000 | 1-4,000 |
| Frequency response (3dB) | Hz | 0.5 -15,000 | 0.7-8,000 |
| Mounting resonance frequency | Hz | ≥25,000 | ≥20,000 |

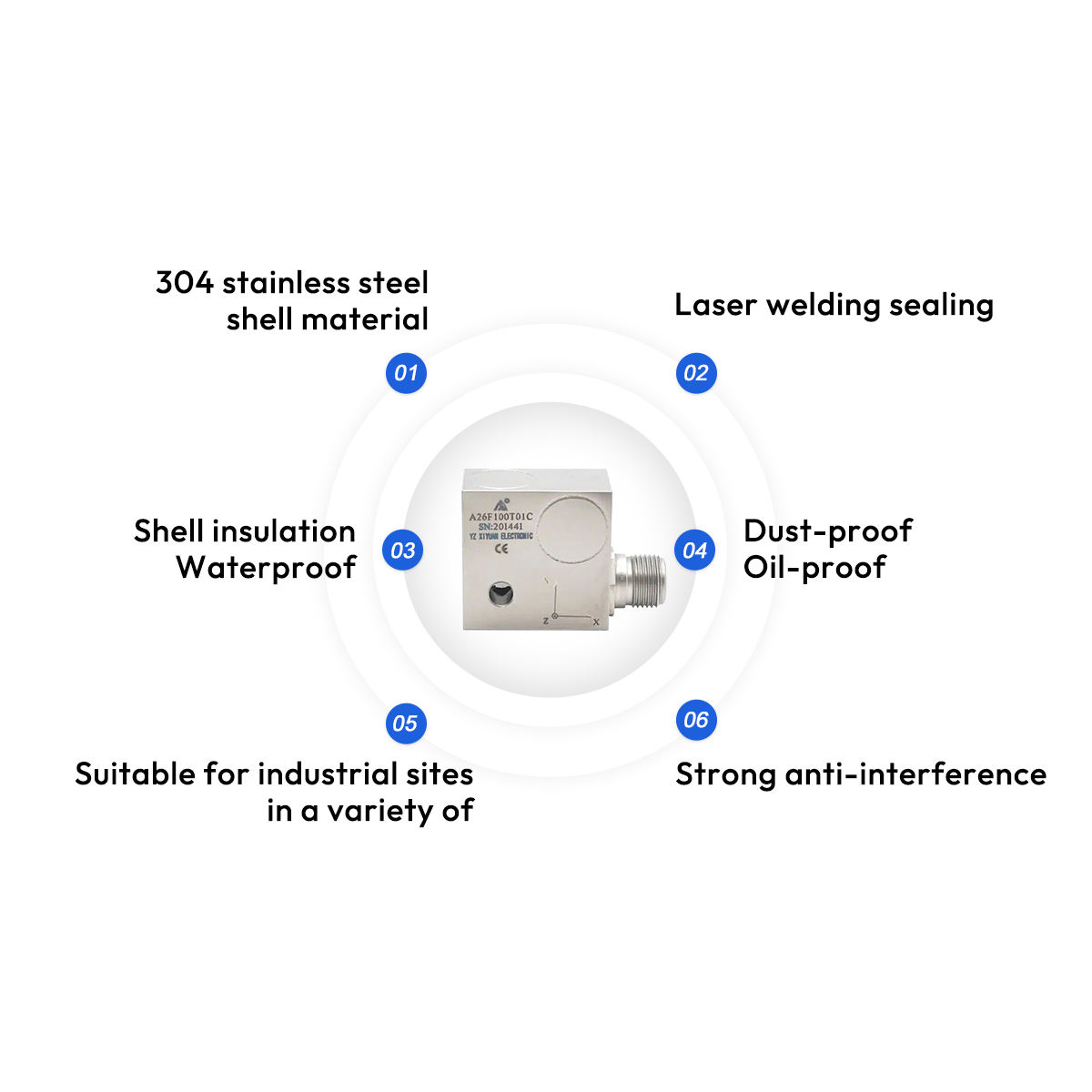

| Housing material | 304 stainless steel | 304 stainless steel | |
| Protection class | IP65 | IP65 |
