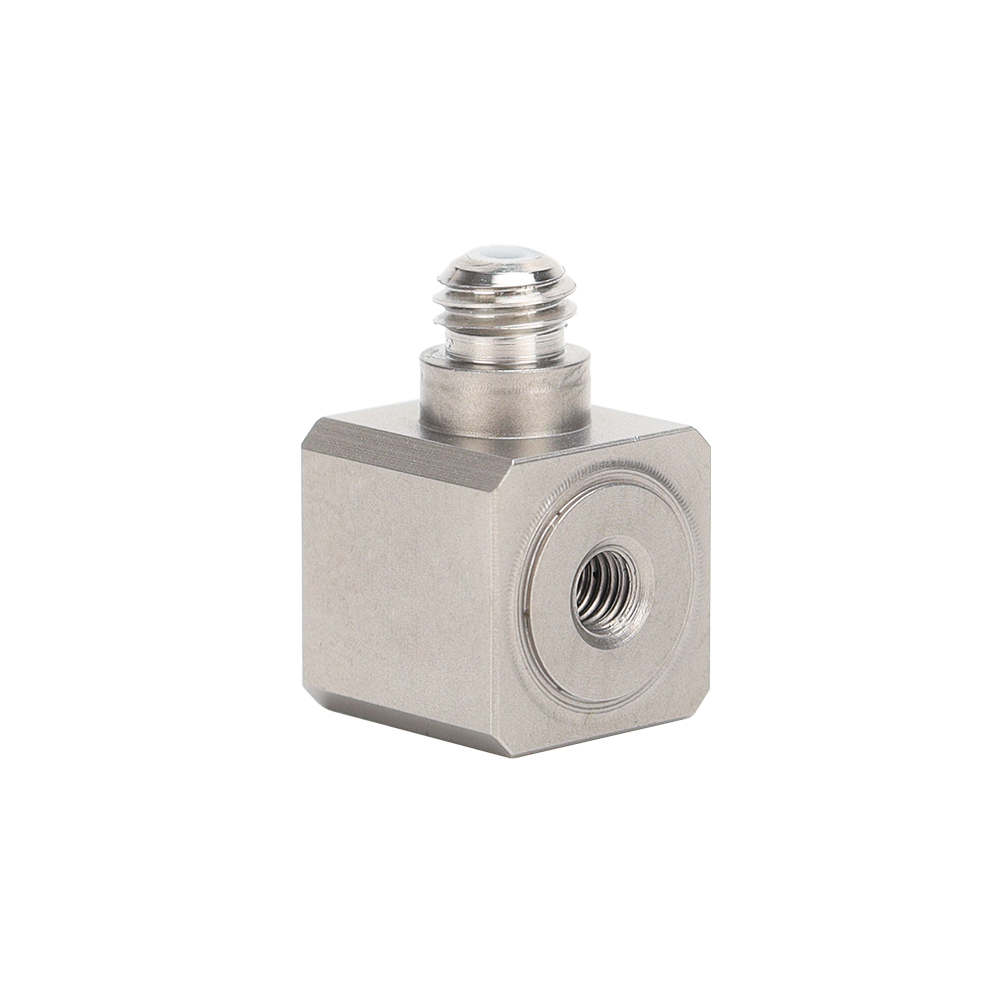

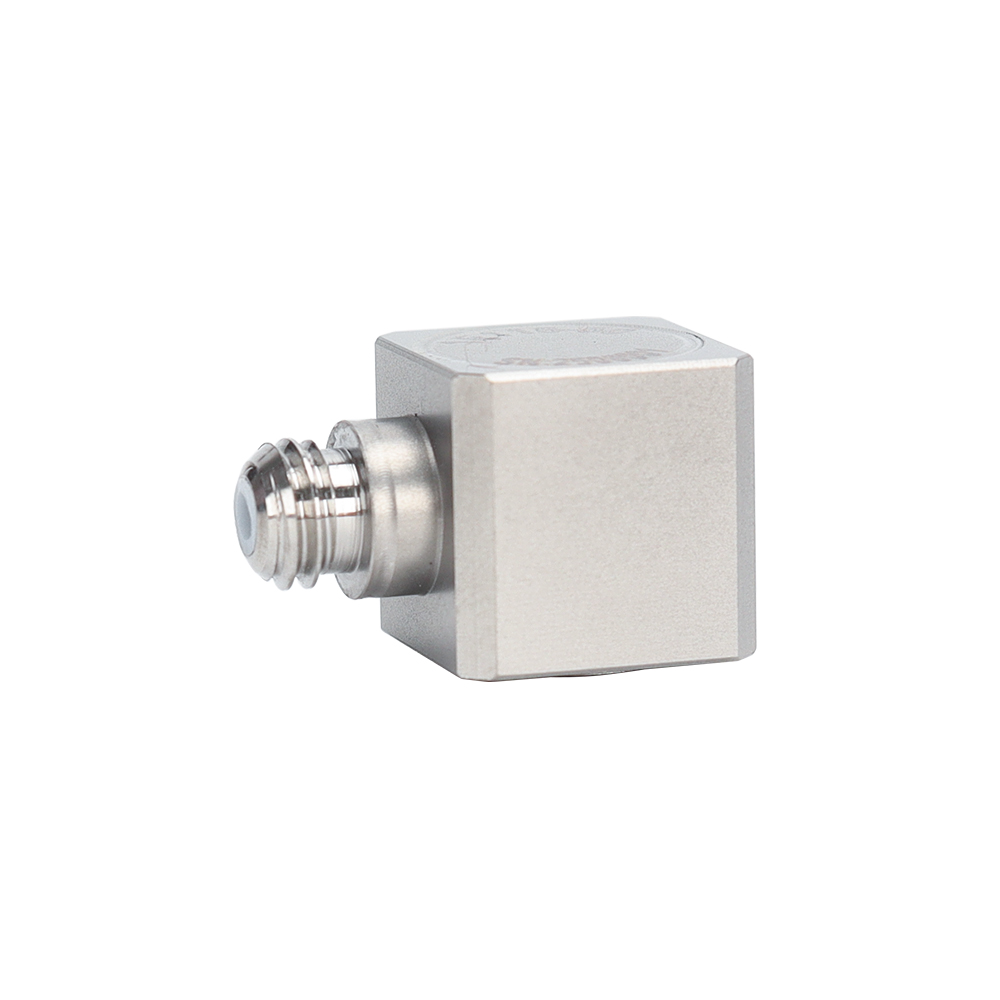

Miniature IEPE Piezoelectric Acceleration Sensor, Sensitivity 100mV/g, Titanium Alloy Housing, 18-30VDC

Voltage - Supply:18 ~ 30 VDC
Output Type:Voltage type
Operating Temperature:-40 ~ 120 °C
Features:Small and lightweight
Frequency:1 ~8 kHz
Output Configuration:Side end integral line M5
Current:2 ~ 20 mA
Size / Dimension:10.2mm x 10.2mm x 10.2mm
Measuring Range:±50 g pk
Sensitivity (mV/g):100 mV/g
Resistance:≤100 Ω
Flow Sensor Type:Piezoelectric Accelerometer Sensor(IEPE)
Application:Microaccelerometer
Transverse Sensitivity Ratio:≤5%
Bias voltage:10 ± 2 VDC
Shock Resistance(peak):±5000 g
Structural Style:Shear
Piezoelectric Materials:Piezoelectric Ceramic
Weight:4g
Mounting Type:M3Bolt/Adhesive Bonding
Broadband Resolution:0.0005 g rms

Model:
AJ272C100
Brand:
Xiyuan

Availability:



Inquire Add to Basket

Miniature IEPE Piezoelectric Acceleration Sensor, Sensitivity 100mV/g, Titanium Alloy Housing, 18-30VDC

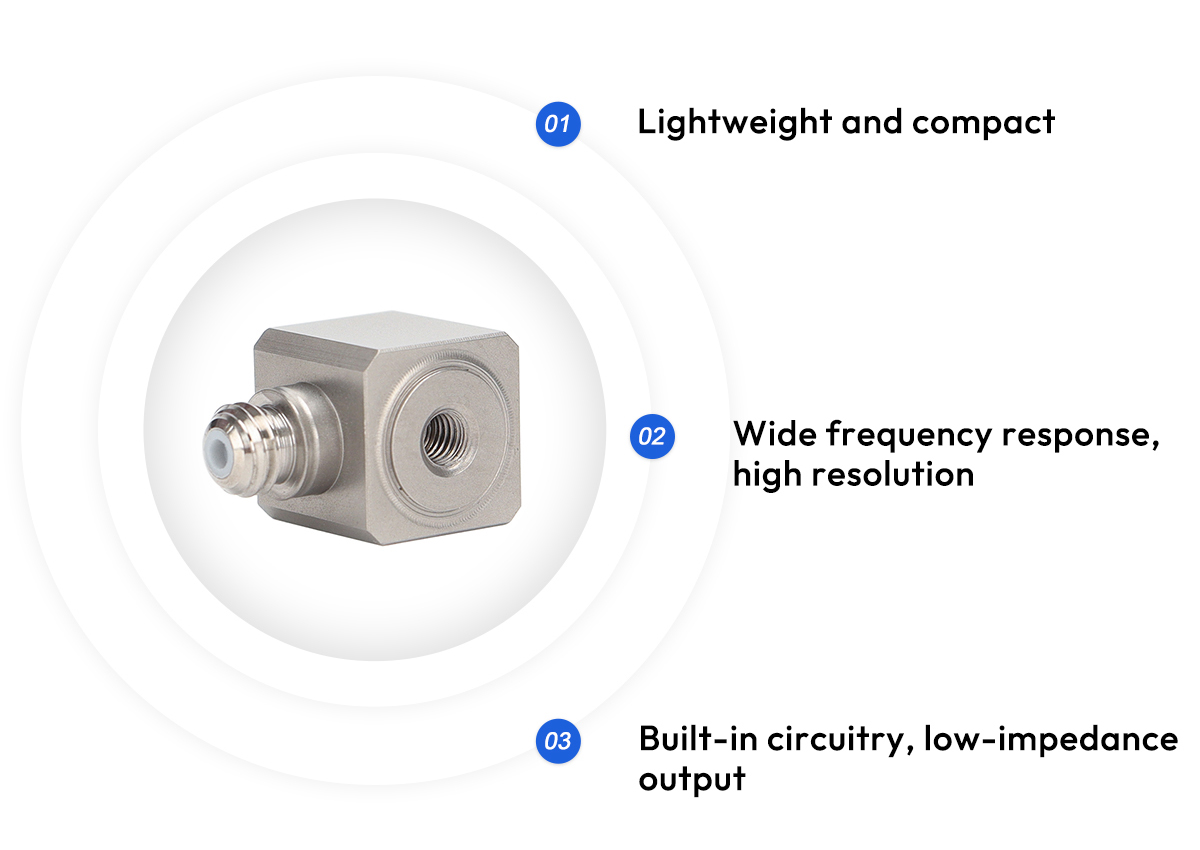

AJ272C100 - 副本

Features	Unit	AJ27C05	AJ27C10	AJ27C10	AJ272C100
Measuring range (peak)	g	±1000	±500	±100	±50
Sensitivity ± 10 %	mV/g	5	10	50	100
Frequency Range ± 5 %	KHz	2～ 15	2～ 10	2～ 10	1 ~ 8
Frequency Range ± 10%	KHz	1.3 ～ 20	1.3 ～ 15	1.2 ～ 12	0.5 ～ 10
Mounting resonance frequency	KHz	≥50	≥50	≥50	≥40
Broadband Resolution	g rms	0.002	0.002	0.001	0.0005
Amplitude Linearity		≤ 1 %	≤ 1 %	≤ 1 %	≤ 1 %
Transverse Sensitivity		< 5 %	< 5 %	< 5 %	< 5 %
Power Supply	VDC	18 ～ 30	18 ～ 30	18 ～ 30	18 ～ 30
Supply Current	mA	2 ～ 20	2 ～ 20	2 ～ 20	2 ～ 20
Output Impedance	Ω	≤ 100	≤ 100	≤ 100	≤ 100
Maximum Shock Value	g (peak)	±10000	±10000	±10000	±5000
Operating Temperature	°C	-40 ～ 120	-40 ～ 120	-40 ～ 120	-40 ～ 120
Sensing Element		Piezoelectric Ceramic	Piezoelectric Ceramic	Piezoelectric Ceramic	Piezoelectric Ceramic
Housing Material		Hard Anodized Aluminum	Hard Anodized Aluminum	Hard Anodized Aluminum	Titanium Alloy
Outline Dimension	mm	9.2x6.4 x3.9	9.2x6.4 x3.9	9.9 x7.1 x4.9	10.2 x 10.2 x 10.2

新详情_12 新详情_04
