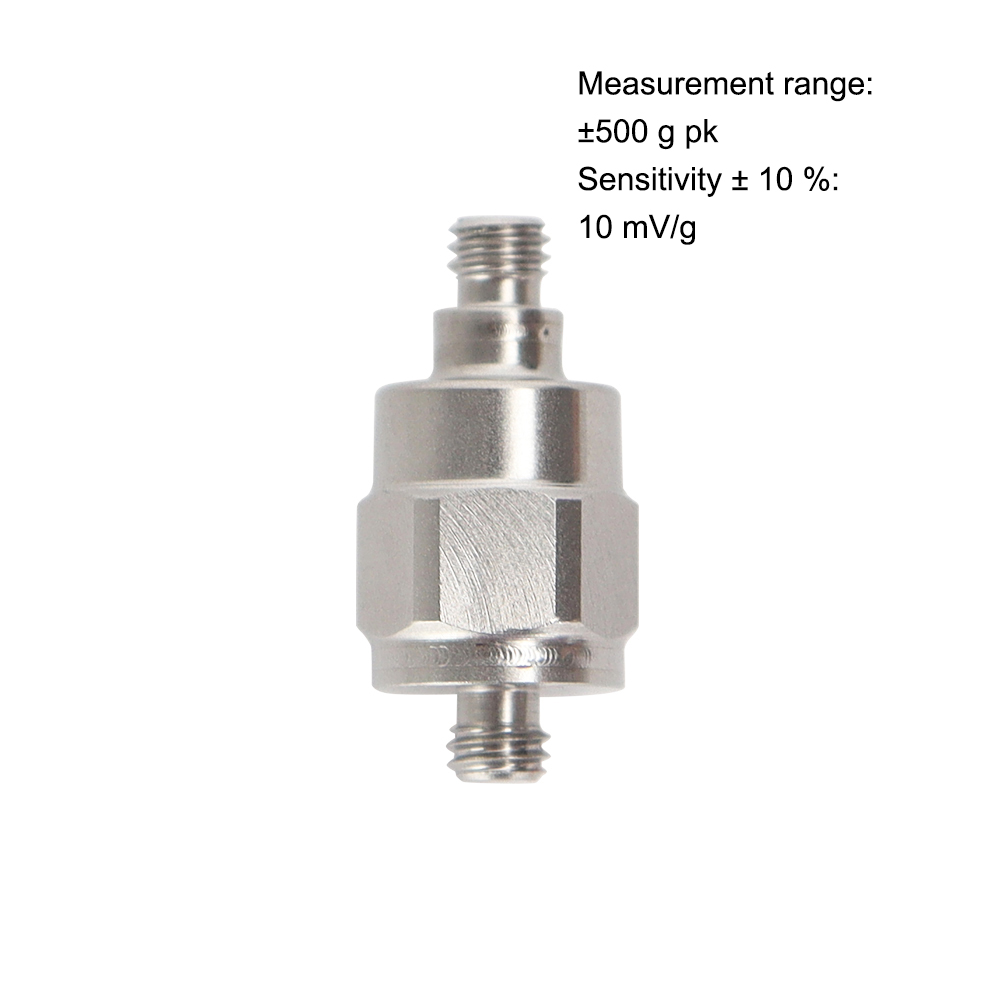

Miniature Piezoelectric Acceleration Transducer Sensor 2~20ma Titanium Alloy Analog Sensor Accelerometer Sensor 10mv/g

Amplifier Type:IEPE preamplifier
Voltage - Supply:18 ~ 30 VDC
Output Type:Voltage type
Operating Temperature:-50 ~ 121 °C
Features:Small and lightweight
Frequency:1 ~ 10 kHz
Output Configuration:Side end integral line M5
Current:2 ~ 20 mA
Size / Dimension:7.8mm x 13.5mm
Measuring Range:±500 g peak
Sensitivity (mV/g):10mV/g (160Hz) (25℃)
Resistance:<100 Ω
Flow Sensor Type:Piezoelectric Accelerometer Sensor(IEPE)
Application:Microaccelerometer
Transverse Sensitivity Ratio:≤5%
Bias voltage:10 ± 2 VDC
Shock Resistance(peak):±500 g
Structural Style:Shear
Piezoelectric Materials:Piezoelectric Ceramic
Weight:~1.5g

Model:
AJ271D10
Brand:
Xiyuan

Availability:



Inquire Add to Basket

Miniature Piezoelectric Acceleration Transducer Sensor 2~20ma Titanium Alloy Analog Sensor Accelerometer Sensor 10mv/g

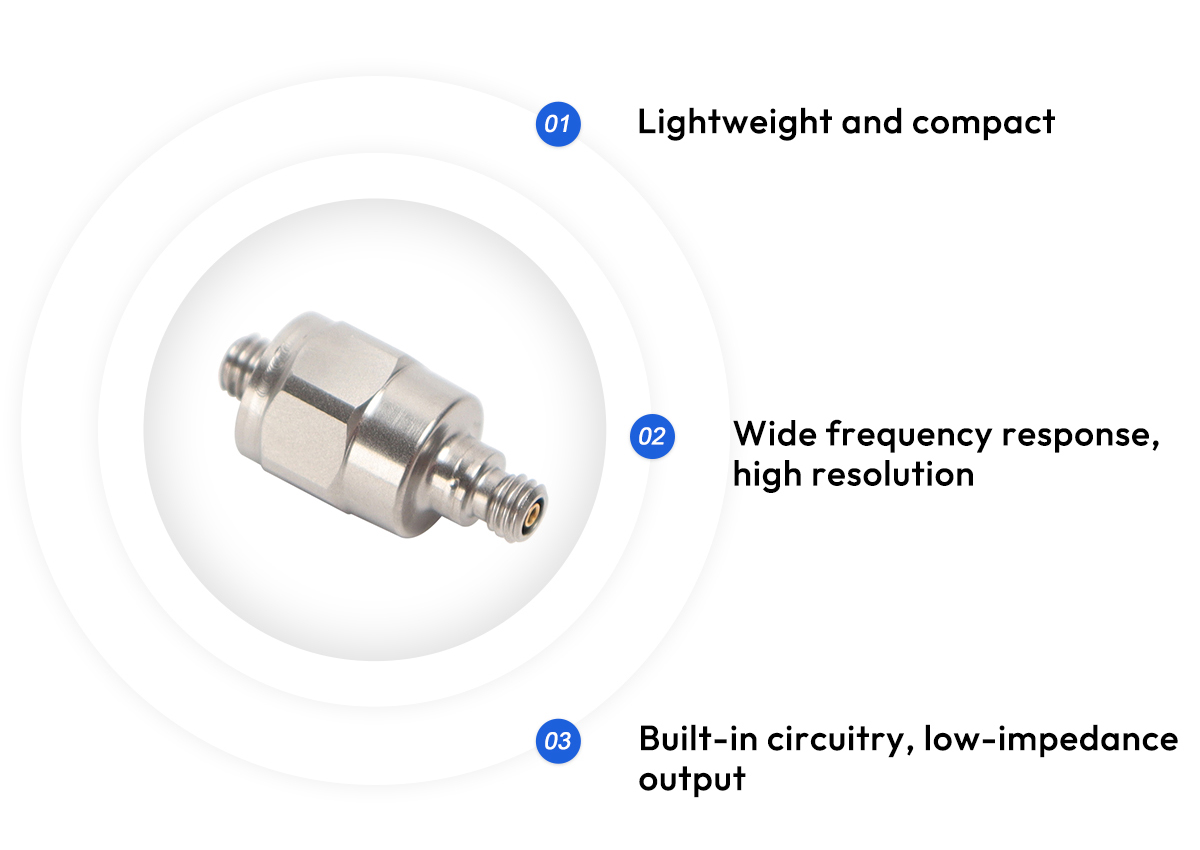

AJ271D10-1

Features	Unit	AJ271D10	AJ271C10	AJ271C100	AJ273C05
Measuring range (peak)	g	±500	±500	±50	±500
Sensitivity ± 10 %	mV/g	10	10	100	10
Frequency Range ± 5 %	KHz	1 ～ 10	1 ～ 10	1 ～ 10	5 ~ 8
Frequency Range ± 10%	KHz	0.5 ～ 13	0.5 ～ 13	0.7 ～ 15	3 ～ 10
Mounting resonance frequency	KHz	≥50	≥50	≥50	≥40
Broadband Resolution	g rms	0.001	0.001	0.001	0.006
Amplitude Linearity		≤ 1 %	≤ 1 %	≤ 1 %	≤ 1 %
Transverse Sensitivity		< 5 %	< 5 %	< 5 %	< 5 %
Power Supply	VDC	18 ～ 30	18 ～ 30	18 ～ 30	18 ～ 30
Supply Current	mA	2 ～ 20	2 ～ 20	2 ～ 20	2 ～ 20
Output Impedance	Ω	≤ 100	≤ 100	≤ 100	≤ 100
Maximum Shock Value	g (peak)	±5000	±5000	±5000	±10000
Operating Temperature	°C	-50 ～ 121	-50 ～ 121	-50 ～ 121	-50 ～ 121
Sensing Element		Piezoelectric Ceramic	Piezoelectric Ceramic	Piezoelectric Ceramic	Piezoelectric Ceramic
Housing Material		Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
Outline Dimension（Ref. Fig.）	mm	7.8 x 13.5	7.95 x 7.9	7.95 x 7.9	4.8 x 4.8x 4.8
