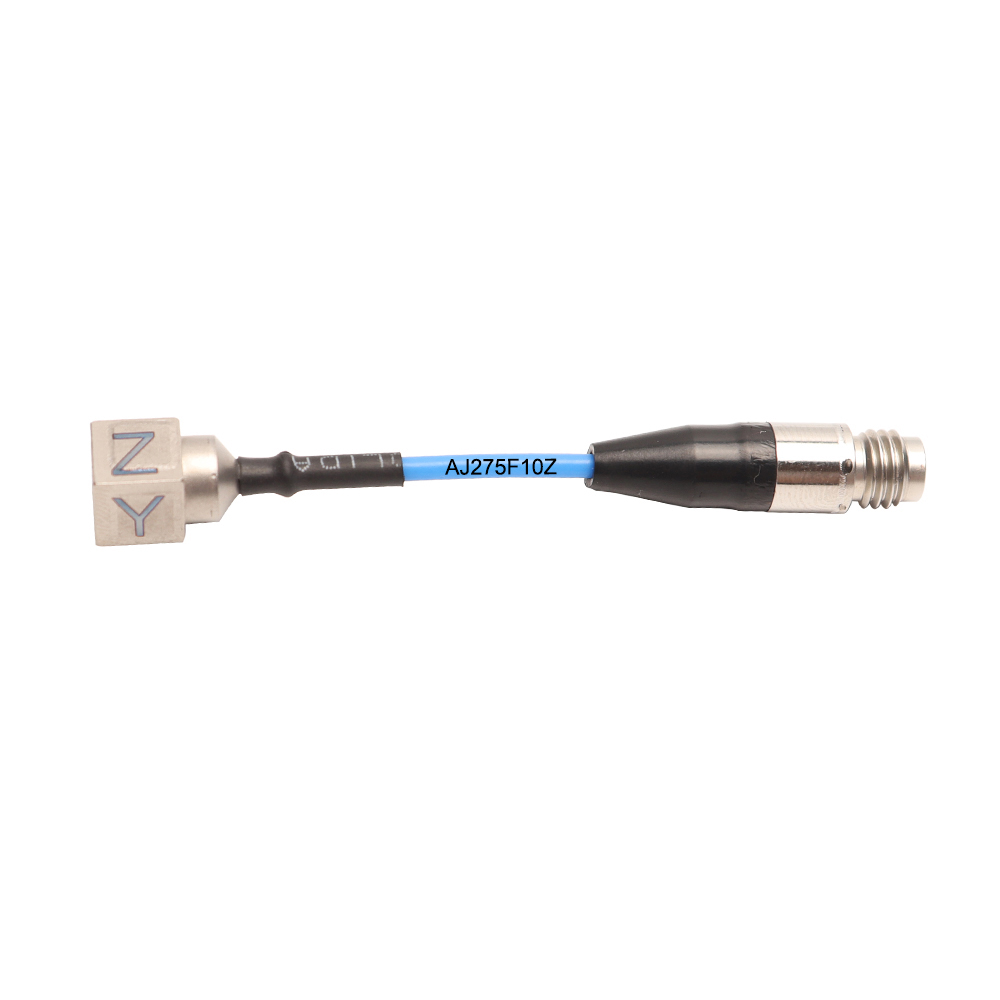

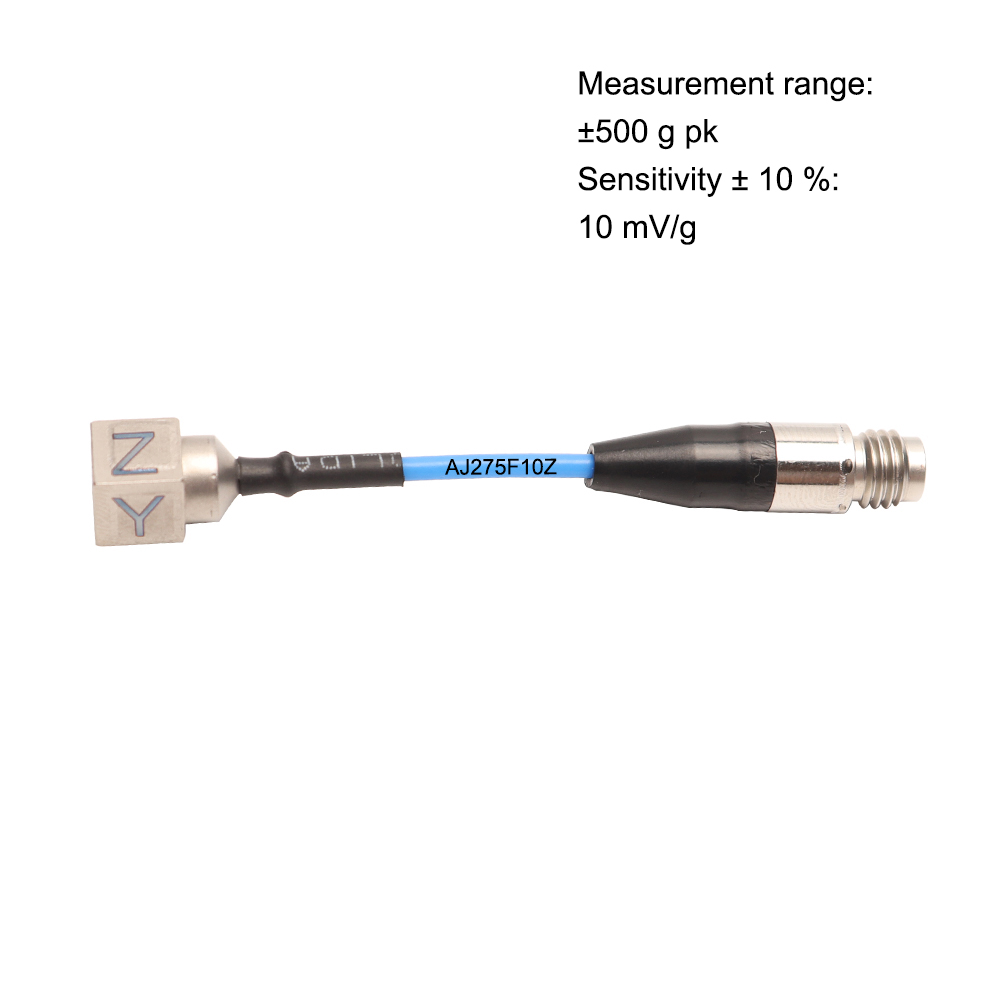

Miniature Piezoelectric Triaxial Acceleration Sensor, 10 MV/g Sensitivity, 500 g Range, Cable Output, for Robot Jump

Can completely replace PCB

Voltage - Supply:18 ~ 30 VDC
Output Type:Integrated Cable to
Features:Small and lightweight
Frequency:2 ~ 10 kHz
Output Configuration:Integrated Cable to
Current:2 ~ 20 mA
Size / Dimension:7.8mm x 7.8mm x 7.8mm
Measuring Range:±500 g peak
Sensitivity (mV/g):10mV/g
Resistance:<100 Ω
Flow Sensor Type:Piezoelectric Accelerometer Sensor
Transverse Sensitivity Ratio:≤5%
Bias voltage:10 ± 2 VDC
Shock Resistance(peak):±10000 g
Structural Style:Shear
Piezoelectric Materials:Piezoelectric Ceramic
Weight:2.6g(Without Cable)
Mounting Type:Adhesive Bonding
Broadband Resolution:0.001g rms
Operating Temperature:-40 ~ 100 °C

Model:
AJ275F10Z
Brand:
Xiyuan

Availability:



Inquire Add to Basket

Miniature Piezoelectric Triaxial Acceleration Sensor, 10 MV/g Sensitivity, 500 g Range, Cable Output, for Robot Jump

Can completely replace PCB

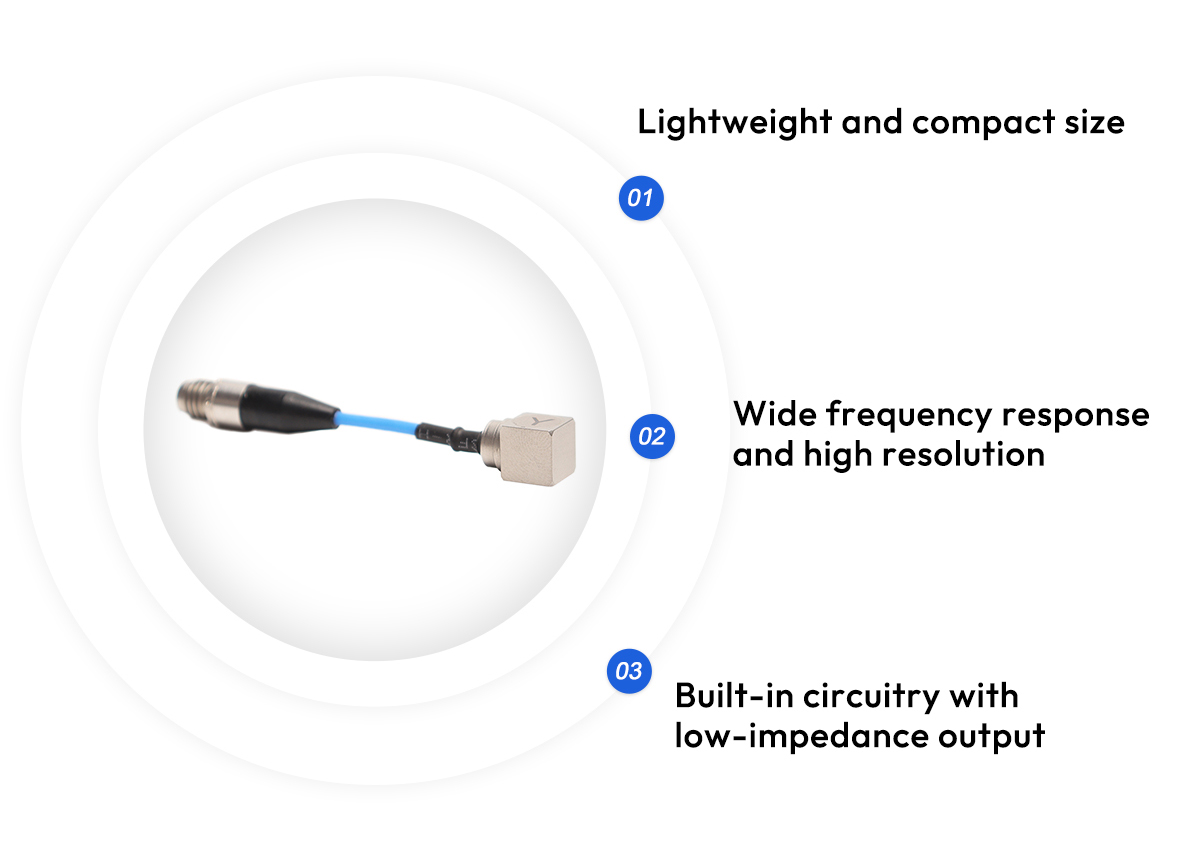

17 - 副本

Model	AJ275F05Z	AJ275F10Z	AJ275F25Z	AJ275F10FS
Dynamic Characteristics
Sensitivity ± 10 %	5 mV/g	10 mV/g	25 mV/g	10 mV/g
Measurement Range	±1000 g pk	±500 g pk	±200 g pk	±500 g pk
Frequency Range ± 5 %	2 ～ 10 kHz	2 ～ 10 kHz	2 ～ 10 kHz	1.5～ 8 kHz
± 10 %	1.2 ～ 15 kHz	1.2 ～ 15 kHz	1.2 ～ 15 kHz	1～ 10 kHz
Mounted Resonant Frequency	≥50 kHz	≥50 kHz	≥50 kHz	≥40 kHz
Broadband Resolution	0.002g rms	0.001 g rms	0.001 g rms	0.001 g rms
Amplitude Linearity	≤ 1 %	≤ 1 %	≤ 1 %	≤ 1 %
Transverse Sensitivity	< 5 %	< 5 %	< 5 %	< 5 %
Electrical Parameters
Power Supply	18 ～ 30 VDC	18 ～ 30 VDC	18 ～ 30 VDC	18 ～ 30 VDC
Supply Current	2 ～ 20 mA	2 ～ 20 mA	2 ～ 20 mA	2 ～ 20 mA
Output Impedance	≤ 100 Ω	≤ 100 Ω	≤ 100 Ω	≤ 100 Ω
DC Bias Voltage	10 ± 2 VDC	10 ± 2 VDC	10 ± 2 VDC	10 ± 2 VDC
Environmental Parameters
Maximum Shock Value	±10 000 g pk	±10 000 g pk	±10 000 g pk	±10 000 g pk
Operating Temperature	-40 ～ 100 °C	-40 ～ 100 °C	-40 ～ 100 °C	-40 ～ 100 °C
Physical Parameters
Sensing Element	Piezoelectric Ceramic	Piezoelectric Ceramic	Piezoelectric Ceramic	Piezoelectric Ceramic
Structural Form	Shear	Shear	Shear	Shear
Housing Material	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
Sealing Type	Laser Welding	Laser Welding	Laser Welding	Laser Welding
Outline Dimension（Ref. Fig.）	7.8mm x 7.8mm x 7.8mm
Weight	2.6g（Without Cable）	2.6g（Without Cable）	2.6g（Without Cable）	6.8g
Output Mode	Integrated Cable to	Integrated Cable to	Integrated Cable to	Integrated Cable to
Installation Method	Adhesive Bonding	Adhesive Bonding	Adhesive Bonding	Adhesive Bonding
