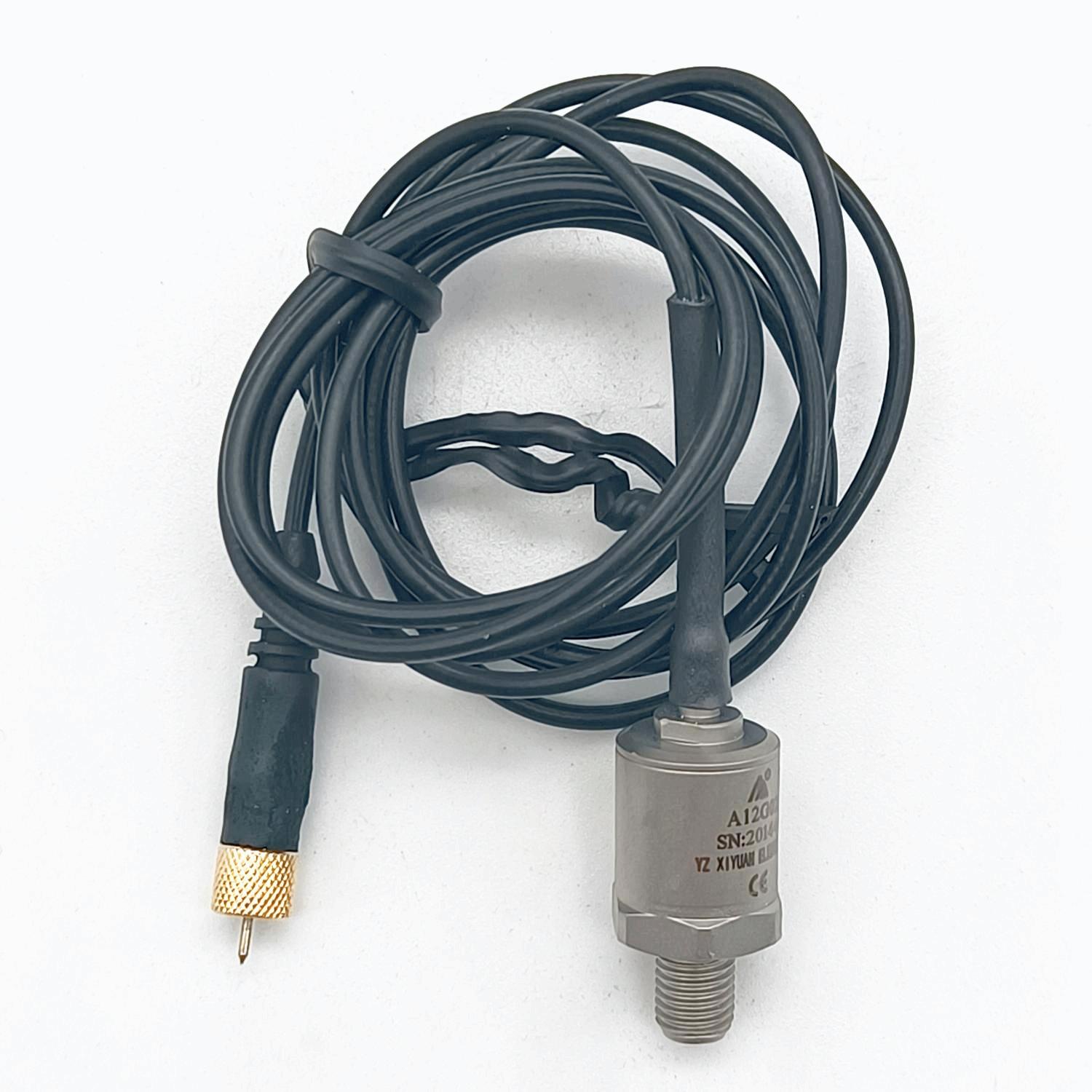

Piezo Shock Vibration Accelerometer Impact Piezoelectric Sensor Acceleration Sensor

Dynamic Properties
Range(peak):±20,000g
Sensitivity(25℃):1.0pC/g (160Hz)
Frequency Response(±1dB):1-10,000Hz
Transverse Sensitivity Ratio:≤5%
Electrical Properties
Insulation resistance:>10^9Ω
Capacitance:~800PF
Polarity:+
Environment Properties
Operation Temp:-20℃~+80℃
Temperature Response:Attached
Physics Properties
Structural Style:cutting
Shell Material:High strength stainless steel
Output Mode:Top M5/The whole line
Installation:M5
Piezoelectric Materials:Ceramic shear
Weight:~10g
Accessory
Cable:Double end M5 low noise shielded cablex2m
Install the screw:M5
  • A12G02

  • Xiyuan

Availability:

Piezo Shock Vibration Accelerometer Impact Piezoelectric Sensor Acceleration Sensor

This series of impact acceleration sensors have the characteristics of light weight, high stiffness, fast response, and wide frequency response, making them suitable for applications related to impact, collision, and explosion tests.

2

Characterization Unit A12G01 A12G02
Measurement Range g ±10000 ±20000
Sensitivity  pC/g 1 1
Amplitude Linearity % ±1 ±1
Frequency response (±1dB) Hz 1-1,0000 1-1,0000
Resonant Frequency KHz 40 40
Temperature Range -40~+70 40~+70
Structure and piezo matenial


Shear/PZT-5 Shear/PZT-5
Installation of insulation to ground Ω ≥109 ≥109
Outline dimension mm φ13*23 φ13*23
Housing material
High strength stainless steel High strength stainless steel
Electrical connector
Global line/M5 Global line/M5
Mounting method
M5 M5
Weight g 10 10
Cable
Integral low noise shielded cable 1 meter Integral low noise shielded cable 1 meter
