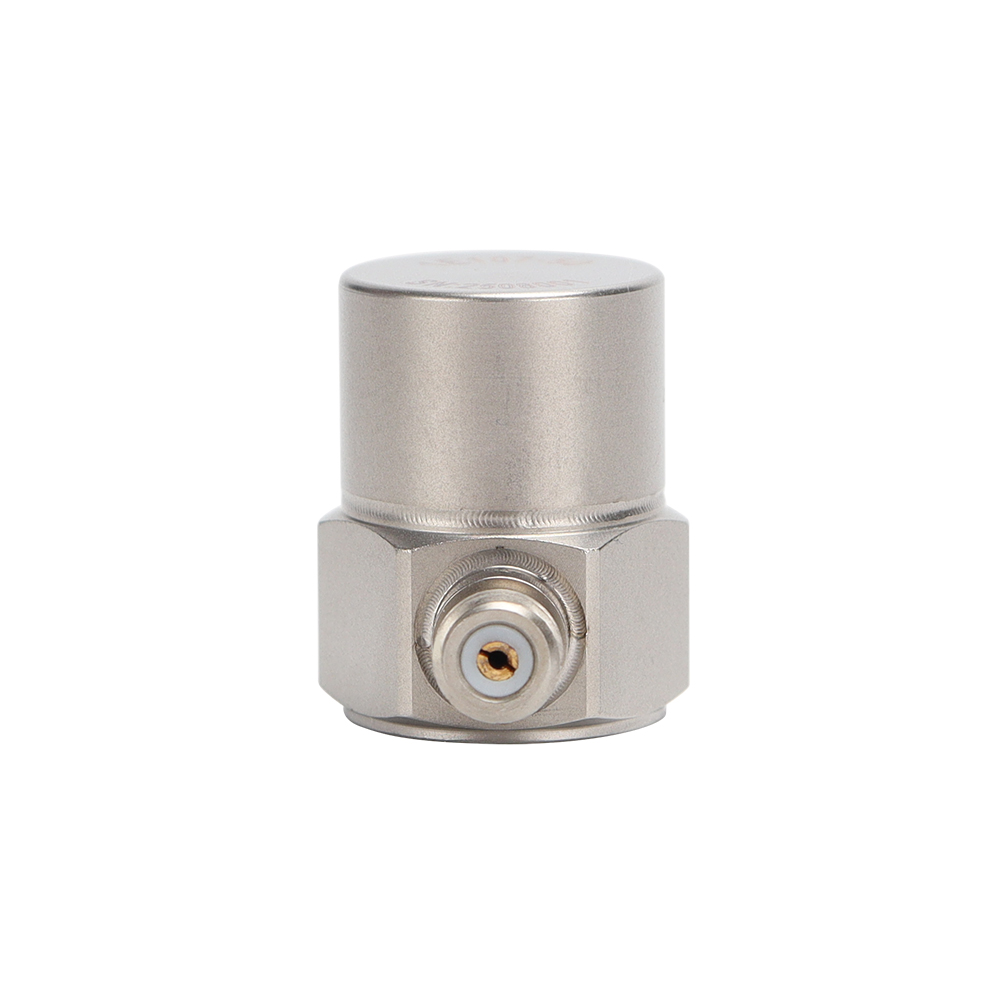

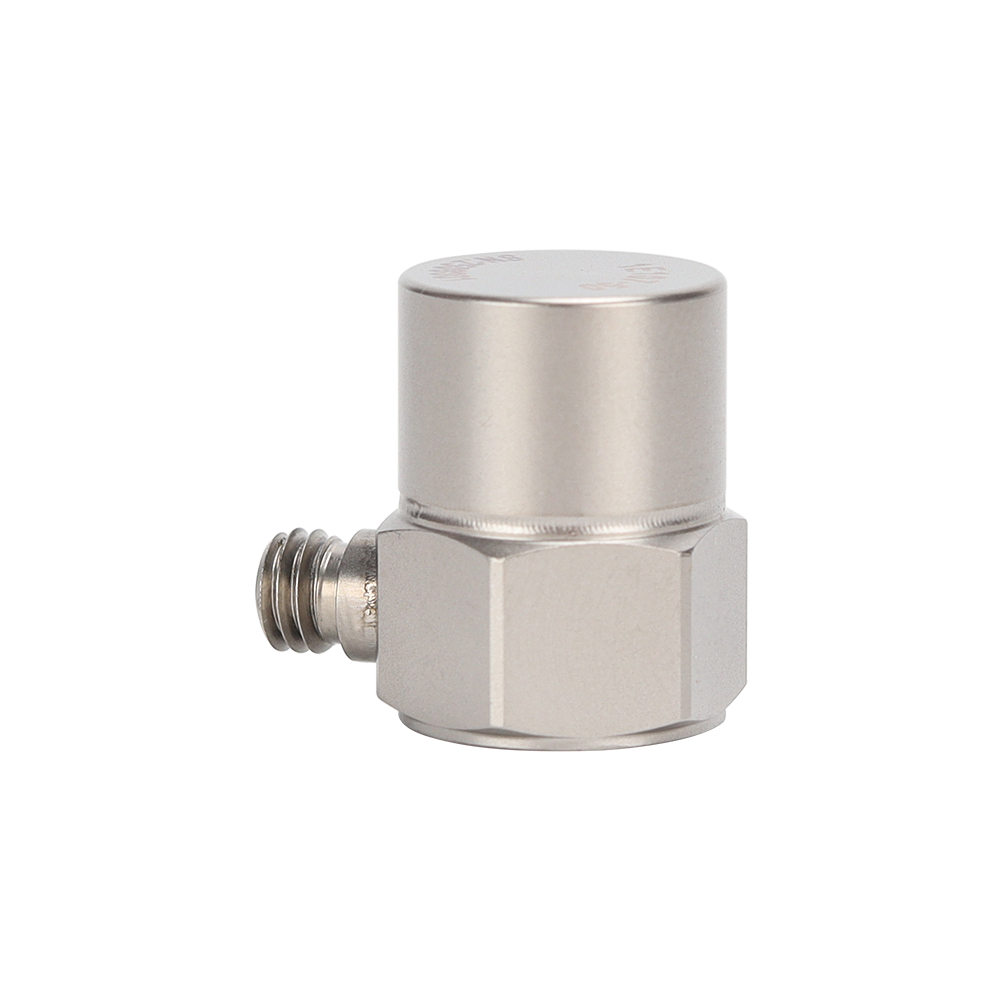

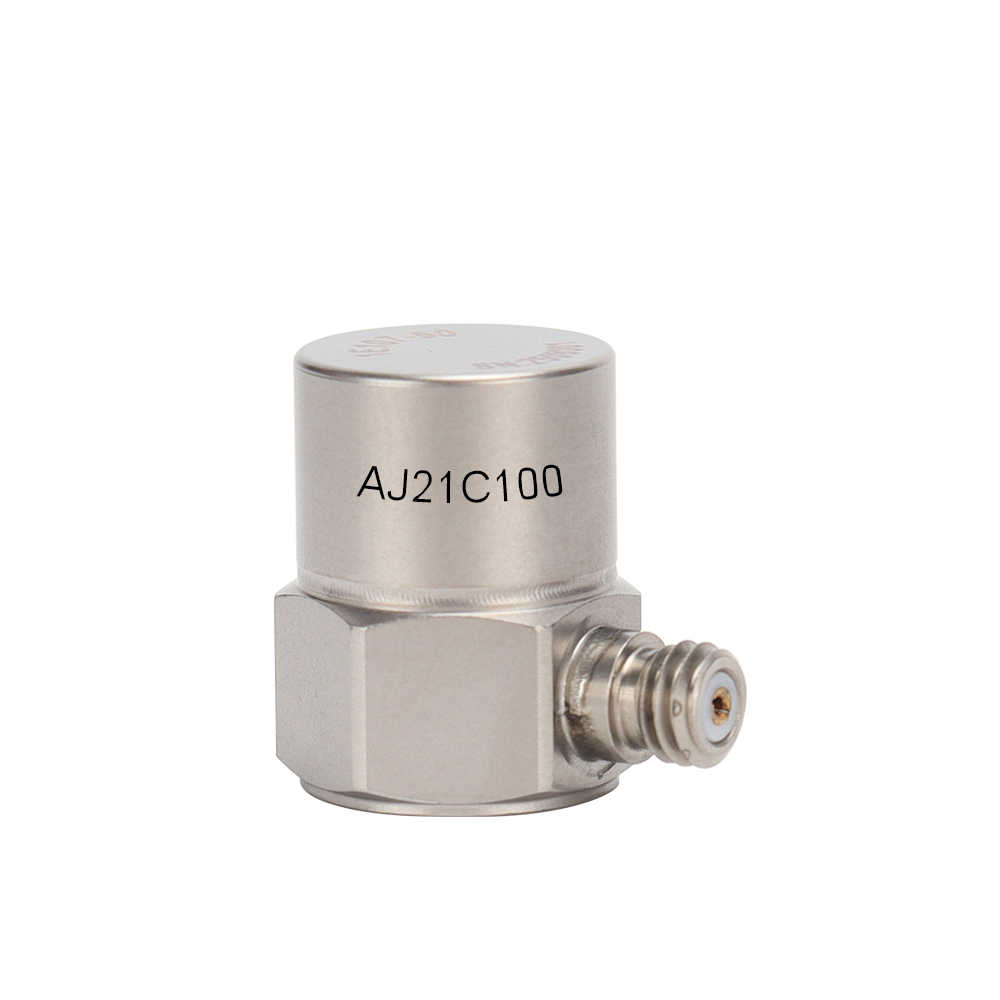

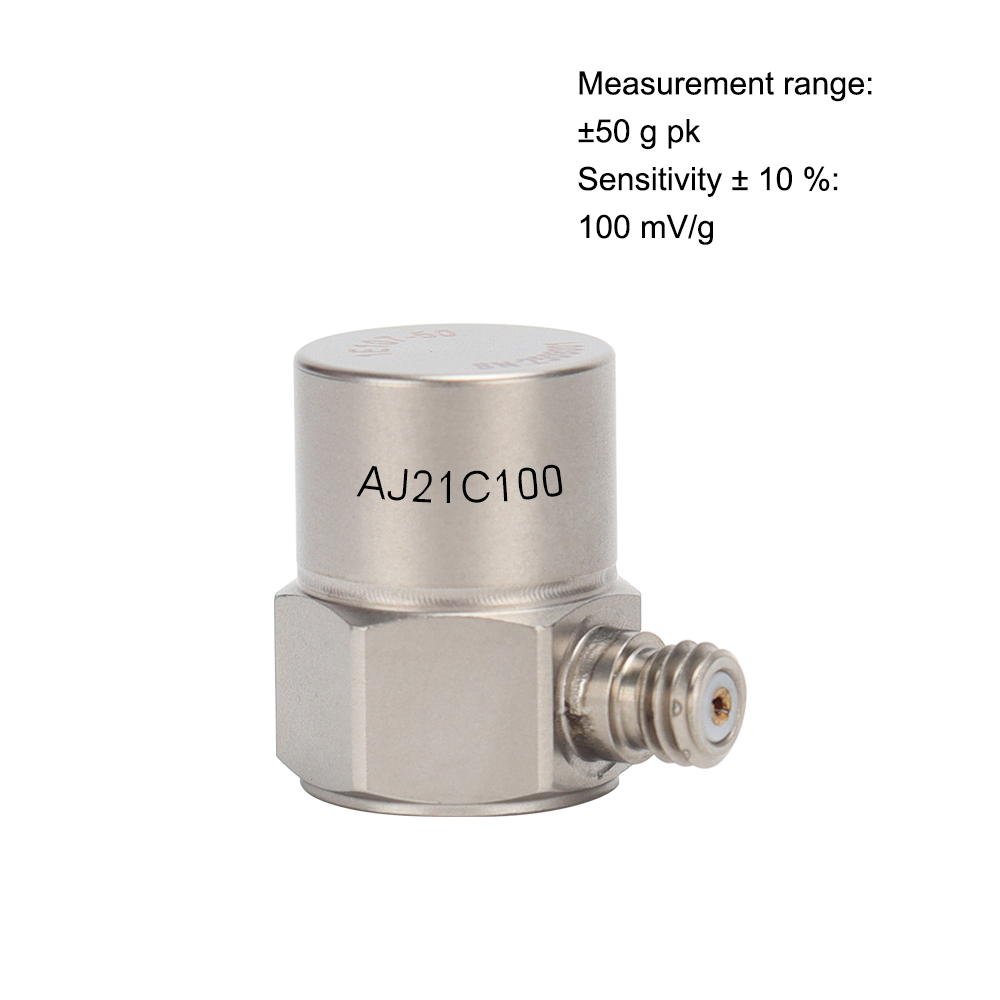

Piezoelectric Vibration Accelerometer, Side Output,18-30VDC Powered, Titanium Case

Output:IEPE
Application:Accelerometer
Amplifier Type:IEPE preamplifier
Manufacturer Part Number:AJ21C100
Operating Temperature:-40 ~ 120 °C
Mounting Type:Adhesive Bonding/M5Threaded Hole
Brand:Piezoelectric Vibration Acceleration Sensor
Voltage - Supply:18 ~ 30 VDC
Output Type:Voltage type
Frequency:1 ~10 kHz
Output Configuration:Side L5 Socket
Current:2 ~ 20 mA
Size / Dimension:10.9mm x 16mm
Measuring Range:±50 g pk
Sensitivity (mV/g):100 mV/g
Resistance:≤100 Ω
Flow Sensor Type:Piezoelectric Accelerometer Sensor(IEPE)
Transverse Sensitivity Ratio:≤5%
Bias voltage:10 ± 2 VDC
Maximum Shock Value:±5000 g

Model:
AJ21C100
Brand:
Xiyuan

Availability:



Inquire Add to Basket

Piezoelectric Vibration Accelerometer, Side Output,18-30VDC Powered, Titanium Case

1 - 副本

Features	Unit	AJ21C05	AJ21C10	AJ21C50	AJ21C100
Measuring range (peak)	g	±1000	±500	±100	±50
Sensitivity ± 10 %	mV/g	5	10	50	100
Frequency Range ± 5 %	KHz	1～ 10	1～ 10	1～ 10	1～ 10
Frequency Range ± 10%	KHz	0.5 ～ 12	0.5 ～ 12	0.5 ～ 12	0.5 ～ 12
Mounting resonance frequency	KHz	≥35	≥35	≥35	≥35
Broadband Resolution	g rms	0.002	0.0005	0.0002	0.00015
Amplitude Linearity		≤ 1 %	≤ 1 %	≤ 1 %	≤ 1 %
Transverse Sensitivity		< 5 %	< 5 %	< 5 %	< 5 %
Power Supply	VDC	18 ～ 30	18 ～ 30	18 ～ 30	18 ～ 30
Supply Current	mA	2 ～ 20	2 ～ 20	2 ～ 20	2 ～ 20
Output Impedance	Ω	≤ 100	≤ 100	≤ 100	≤ 100
Maximum Shock Value	g (peak)	±5000	±5000	±5000	±5000
Operating Temperature	°C	-40 ～ 120	-40 ～ 120	-40 ～ 120	-40 ～ 120
Sensing Element		Piezoelectric Ceramic	Piezoelectric Ceramic	Piezoelectric Ceramic	Piezoelectric Ceramic
Housing Material		Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
Outline Dimension	mm	10.9 x 16	10.9 x 16	10.9 x 16	10.9 x 16
