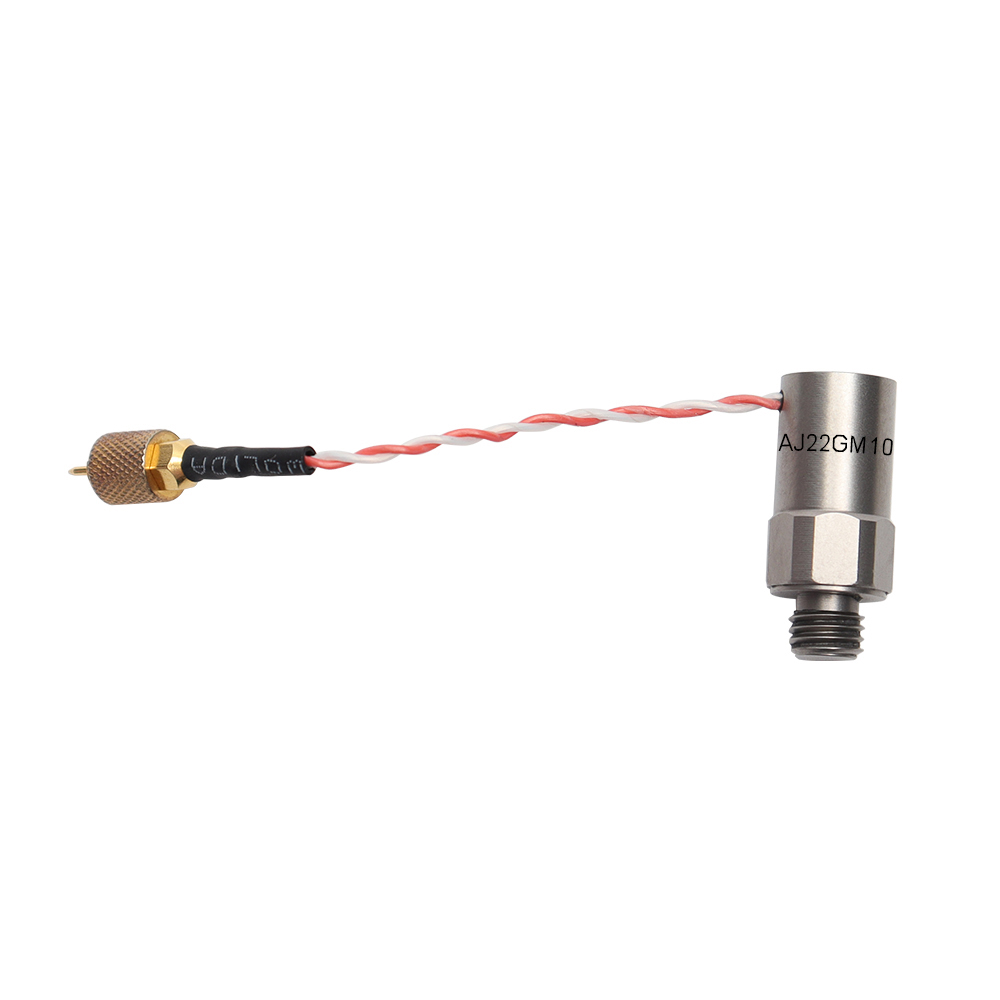

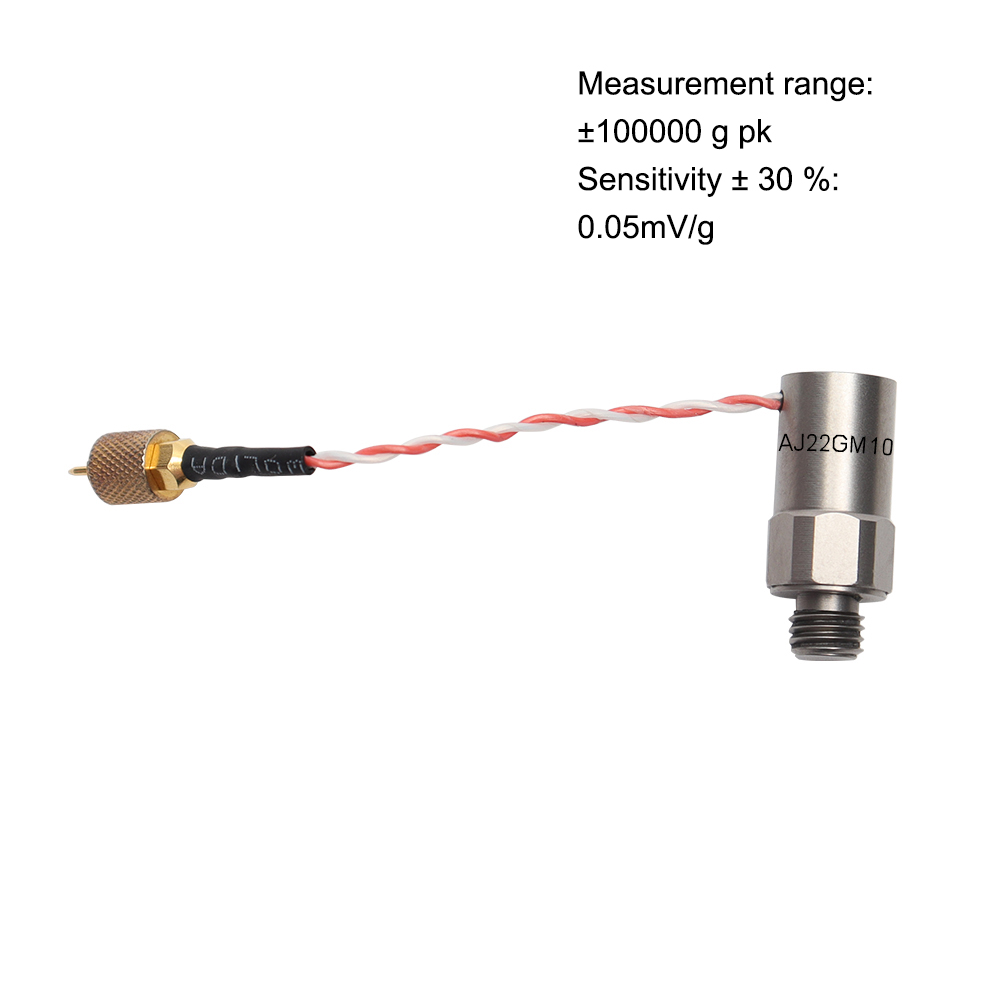

AJ22GM10
Xiyuan
Can completely replace PCB
| Features | Unit | AJ22GM01 | AJ22GM02 | AJ22GM05 | AJ22GM10 | AJ22GM005 |
| Dynamic Characteristics | ||||||
| Measuring range (peak) | g | ±10000 | ±20000 | ±50000 | ±100000 | ±5000 |
| Sensitivity ± 30 % | mV/g | 0.5 | 0.25 | 0.1 | 0.05 | 1 |
| Frequency Range ± 10 % | KHz | 2～10 | 2～10 | 2～10 | 2～10 | 2～10 |
| Electronic Filter Corner Frequency（-3dB） | KHz | 17 | 17 | 17 | 17 | 17 |
| Mechanical Filter Resonant Frequency | KHz | 38 | 38 | 38 | 38 | 38 |
| Mounted Resonant Frequency | KHZ | ≥ 100 | ≥ 100 | ≥ 100 | ≥ 100 | ≥ 100 |
| Amplitude Linearity | ≤ 5 % | ≤ 5 % | ≤ 5 % | ≤ 10 % | ≤ 1 % | |
| Transverse Sensitivity | < 5 % | < 5 % | < 5 % | < 5 % | < 5 % | |
| Broadband Resolution | g rms | 0.3 | 0.3 | 0.2 | 0.3 | 0.3 |
| Electrical Parameters | ||||||
| Power Supply | VDC | 18 ～ 30 | 18 ～ 30 | 18 ～ 30 | 18 ～ 30 | 18 ～ 30 |
| Supply Current | mA | 2 ～ 20 | 2 ～ 20 | 2 ～ 20 | 2 ～ 20 | 2 ～ 20 |
| Output Impedance | Ω | ≤ 100 | ≤ 100 | ≤ 100 | ≤ 100 | ≤ 100 |
| DC Bias Voltage | VDC | 10 ± 2 | 10 ± 2 | 10 ± 2 | 10 ± 2 | 10 ± 2 |
| Environmental Parameters | ||||||
| Maximum Shock Value | g (peak) | ±30 000 | ±100 000 | ±50 000 | ±50 000 | ±30 000 |
| Housing Material | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | |
| Weight | g | 5（Without Cable） | 5（Without Cable） | 5（Without Cable） | 5（Without Cable） | 5（Without Cable） |
